Install the Internal HBA Card in PCIe Slot 4
148 Oracle Server X6-2 Service Manual • June 2016
c.

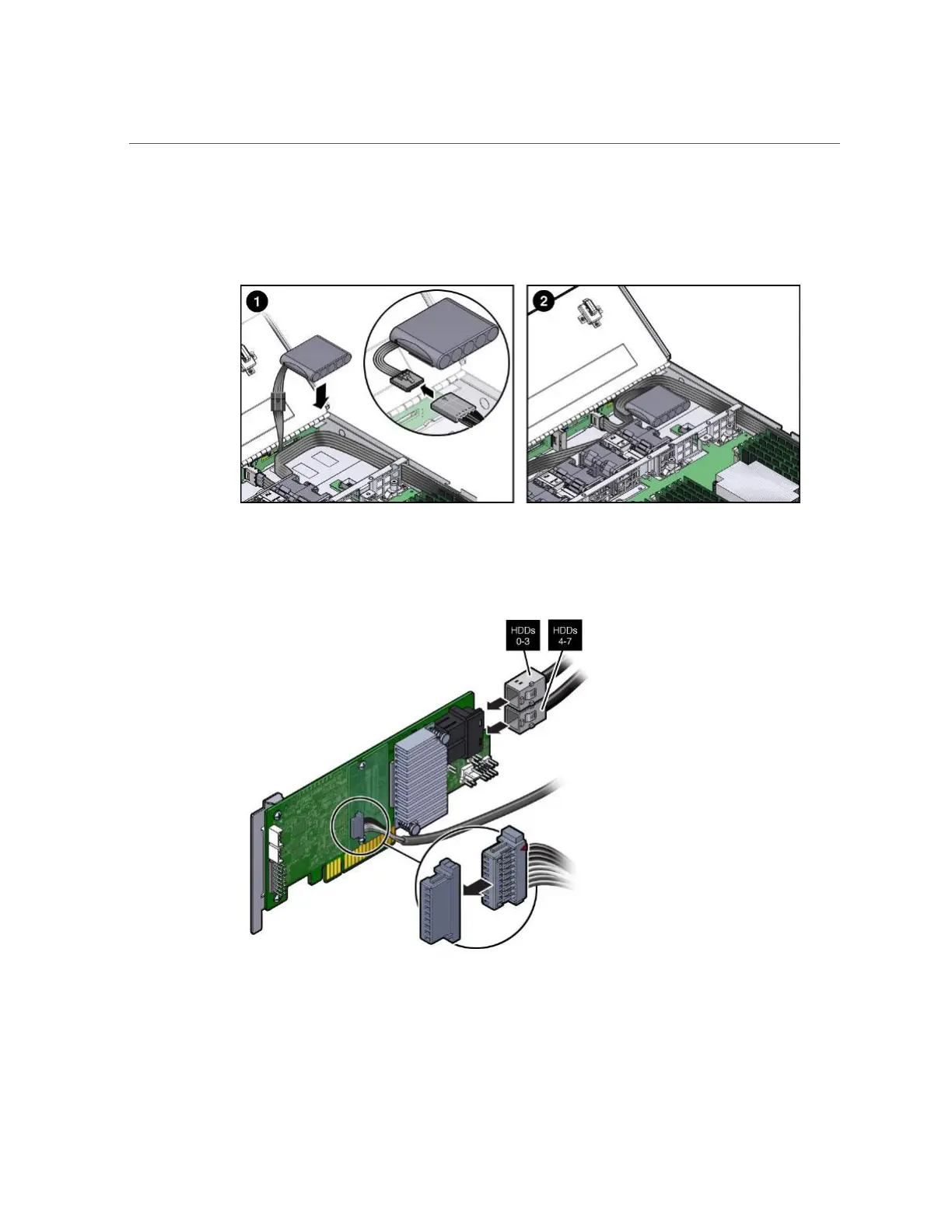

Press the super capacitor into the server's chassis so that it is secured to
the existing reclosable fastener [1 and 2].
6.
Connect the SAS cables and the super capacitor cable to the internal HBA card.
