Install the Internal HBA Card in PCIe Slot 4
Servicing FRUs 149
7.

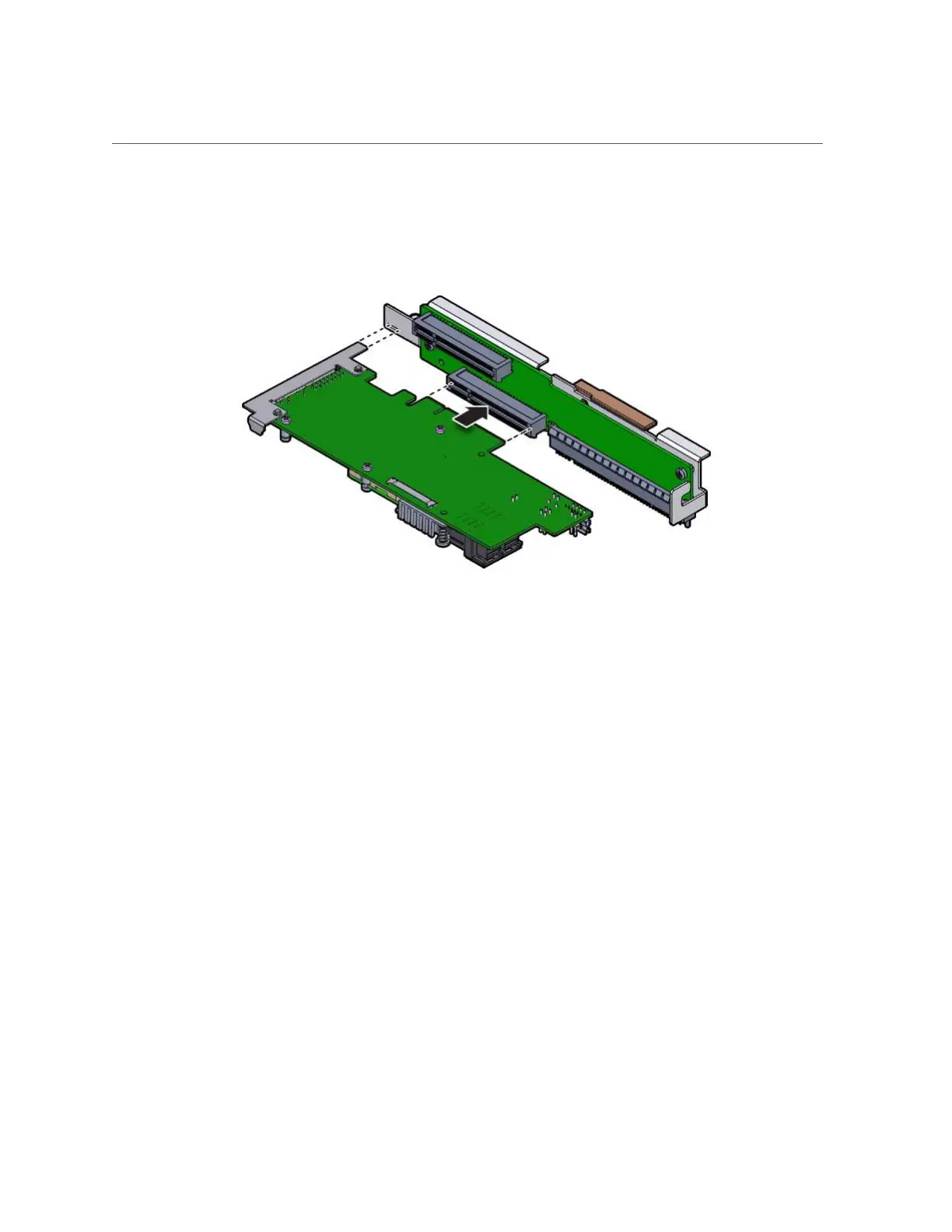

Insert the rear bracket on the internal HBA card into the rear connector on the
PCIe riser.
8.
Insert the internal HBA card connector into the bottom connector on the riser for
PCIe slot 3 and 4 .
9.
Install the PCIe riser.
For instructions, see “Install the PCIe Riser Into PCIe Slots 3 and 4” on page 105.
10.
Install fan module FM0.
See “Install a Fan Module” on page 79.
11.
Return the server to operation.
a.
Close the server fan door.
b.
Return the server to the normal rack position.
See “Return the Server to the Normal Rack Position” on page 191.
c.
Reconnect the data cables to the server and reconnect the power cords to
the server power supplies.
See “Reconnect Data Cables and Power Cords” on page 193.
d.
Power on the server.
See “Power On the Server” on page 194.
