Remove the Motherboard
168 Oracle Server X6-2 Service Manual • June 2016
a.

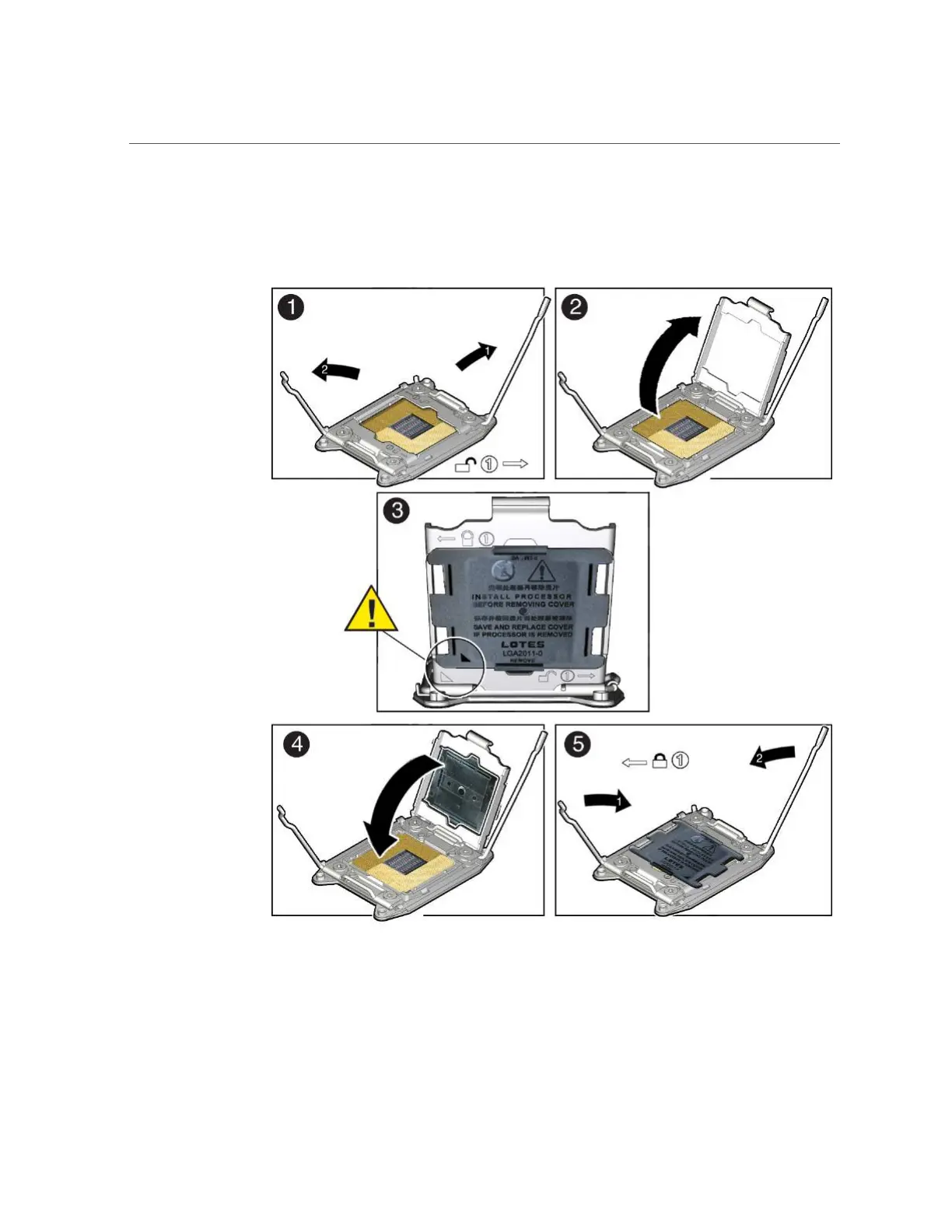

Open one of the processor ILM assemblies on the failed motherboard
[Frames 1 and 2].
b.
Hold the processor ILM assembly load plate open with one hand and
position the processor socket cover over the top of the ILM assembly load
plate so that 1) the arrow on the processor socket cover is aligned with the
arrow on the load plate and 2) the fasteners on one side of the cover (the
