Oracle X8-2L Service Manual

PCIe Slot Locations
Related Information
■
“Servicing the Internal HBA Card (FRU) and HBA Super Capacitor (CRU)” on page 181
PCIe Slot Locations

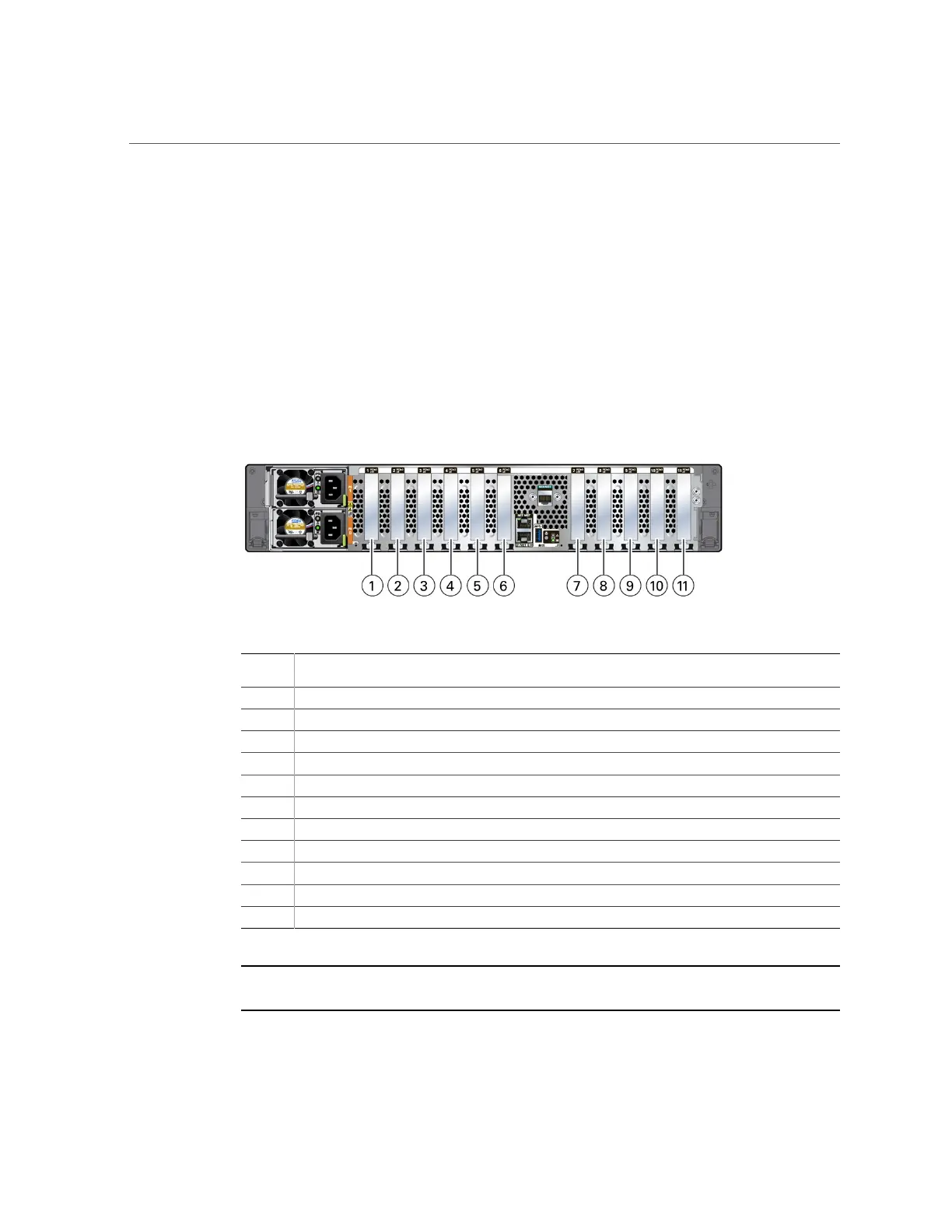

There are eleven PCIe slots available for PCIe cards. The following figure shows the PCIe slot
numbering.
Call
Out
Description
1 PCIe slot 1 (Nonfunctional in single-processor systems.)
2 PCIe slot 2 (Nonfunctional in single-processor systems.)
3 PCIe slot 3 (Nonfunctional in single-processor systems. Primary slot for Oracle PCIe NVMe switch card.)
4 PCIe slot 4 (Nonfunctional in single-processor systems. Primary slot for Oracle PCIe NVMe switch card.)
5 PCIe slot 5 (Nonfunctional in single-processor systems.)
6 PCIe slot 6
7 PCIe slot 7
8 PCIe slot 8 (Primary slot for Oracle PCIe NVMe switch card.)
9 PCIe slot 9 (Primary slot for Oracle PCIe NVMe switch card.)
10 PCIe slot 10
11 PCIe slot 11 (Primary slot for the Oracle Storage 12 Gb SAS PCIe RAID HBA, Internal card)
Note - All of the PCIe slots comply with the PCI Express 3.0 specification and can
accommodate 25 Watt PCIe3 cards.
134 Oracle Server X8-2L Service Manual • January 2021
