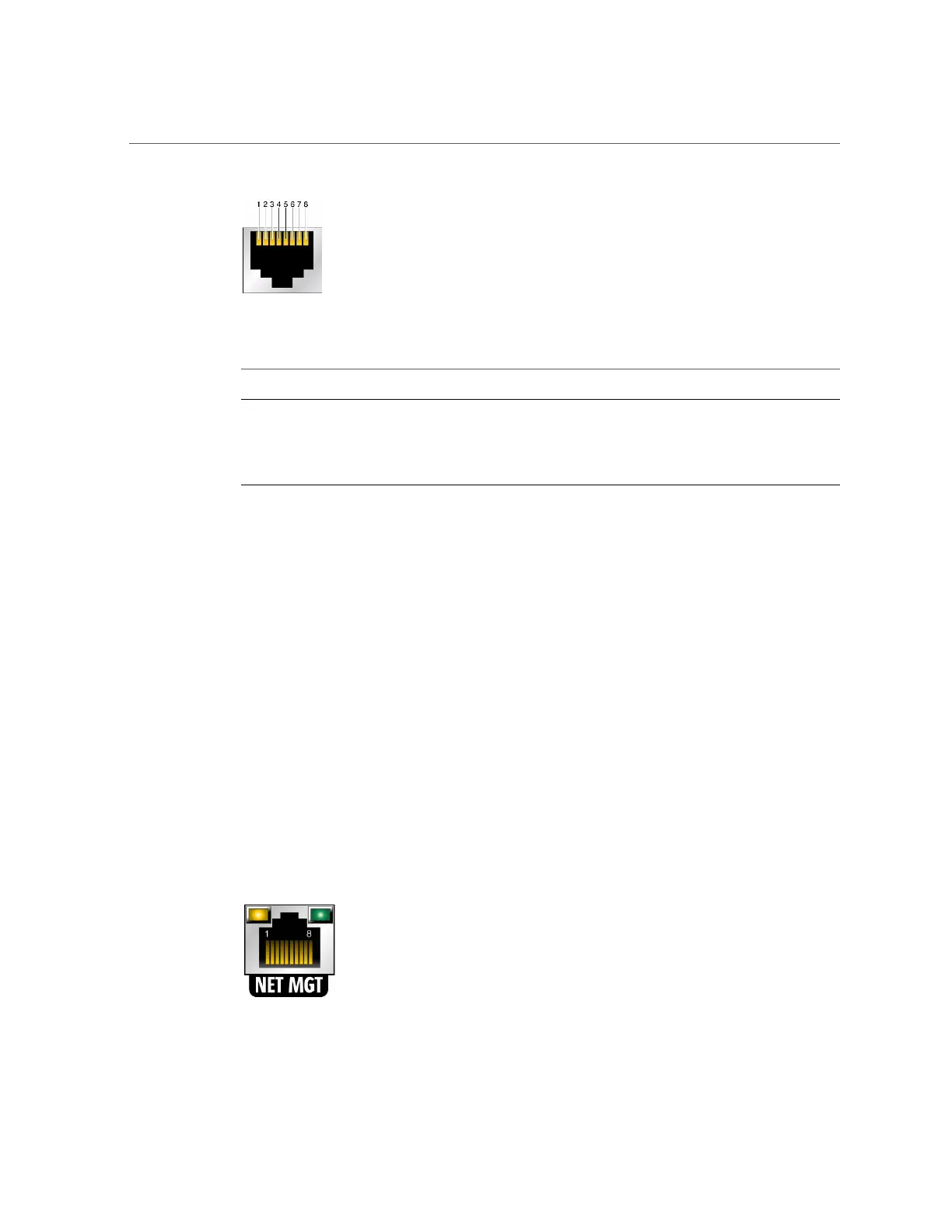

Network Management Port
TABLE 3
One GbE Port Signals
Pin
Signal Description Pin Signal Description
1 Transmit/Receive Data 0 + 5 Transmit/Receive Data 2 –
2 Transmit/Receive Data 0 – 6 Transmit/Receive Data 1 –
3 Transmit/Receive Data 1 + 7 Transmit/Receive Data 3 +
4 Transmit/Receive Data 2 + 8 Transmit/Receive Data 3 –
Related Information
■
“Back Panel Components and Cable Connections” on page 18
■
“Server System-Level Status Indicators” on page 31
■
“Disconnect Cables From the Server” on page 61
■
“Reconnect Power and Data Cables” on page 222
Network Management Port
The server has one auto-negotiating 10/100/1000BASE-T Ethernet management domain
interface, labeled NET MGT. For information about configuring this port for managing the
server with Oracle ILOM, refer to the Oracle Integrated Lights Out Manager (ILOM) 5.0
Documentation Library at https://www.oracle.com/goto/ilom/docs.
226 Oracle Server X8-2L Service Manual • January 2021
