Oracle X8-2L Service Manual

About System Components
■
“Illustrated Parts Breakdown” on page 20
■
“Customer-Replaceable Units” on page 21
■
“Field-Replaceable Units” on page 22
Illustrated Parts Breakdown

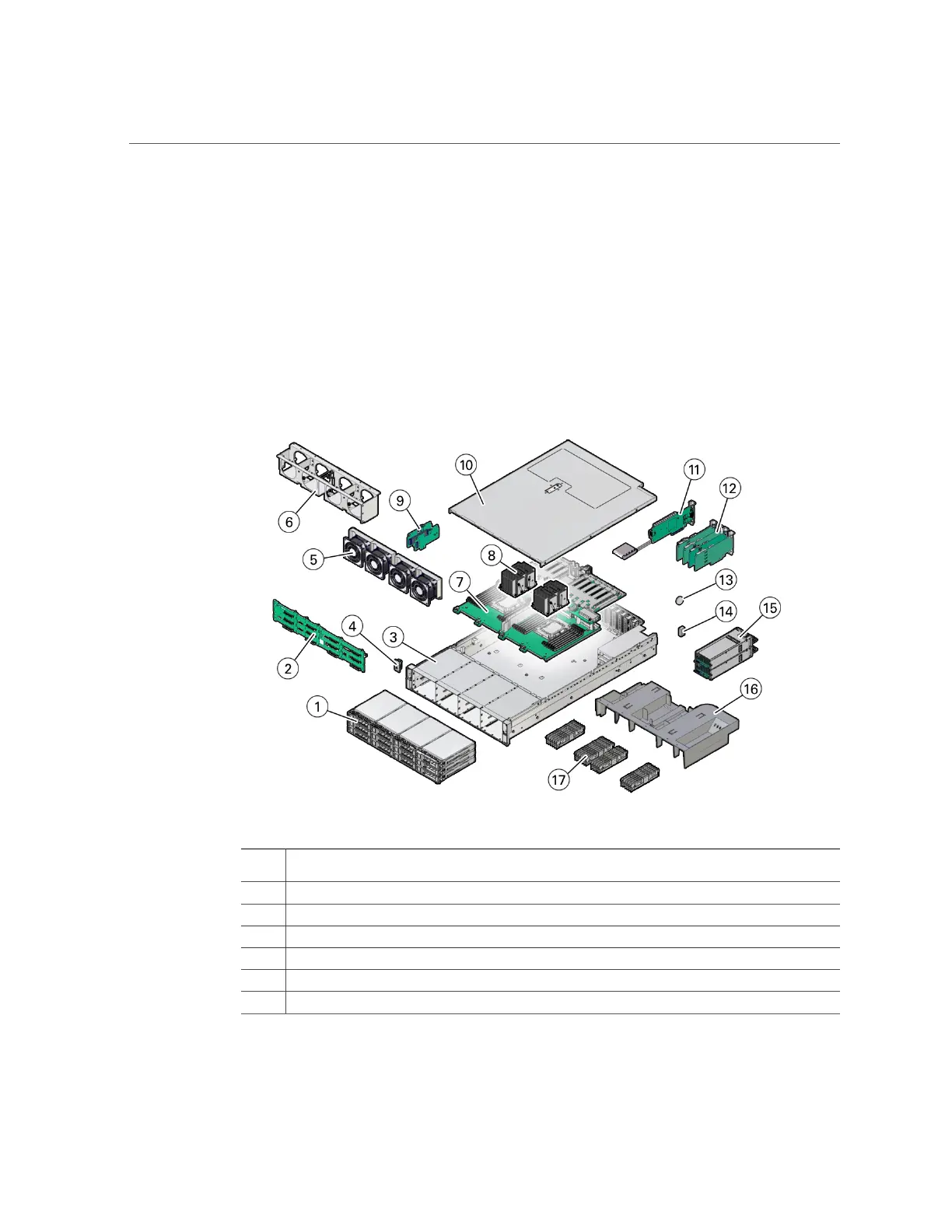

The following figure identifies the major components of the server.
Figure
Legend
Description
1 Twelve storage drives
2 Disk backplane
3 System chassis
4 Front LED indicator module and temperature sensor
5 Fan modules
6 Fan tray
20 Oracle Server X8-2L Service Manual • January 2021

Oracle X8-2L Specifications

General

Brand	Oracle
Model	X8-2L
Category	Server
Language	English
