Front and Back Panel Components

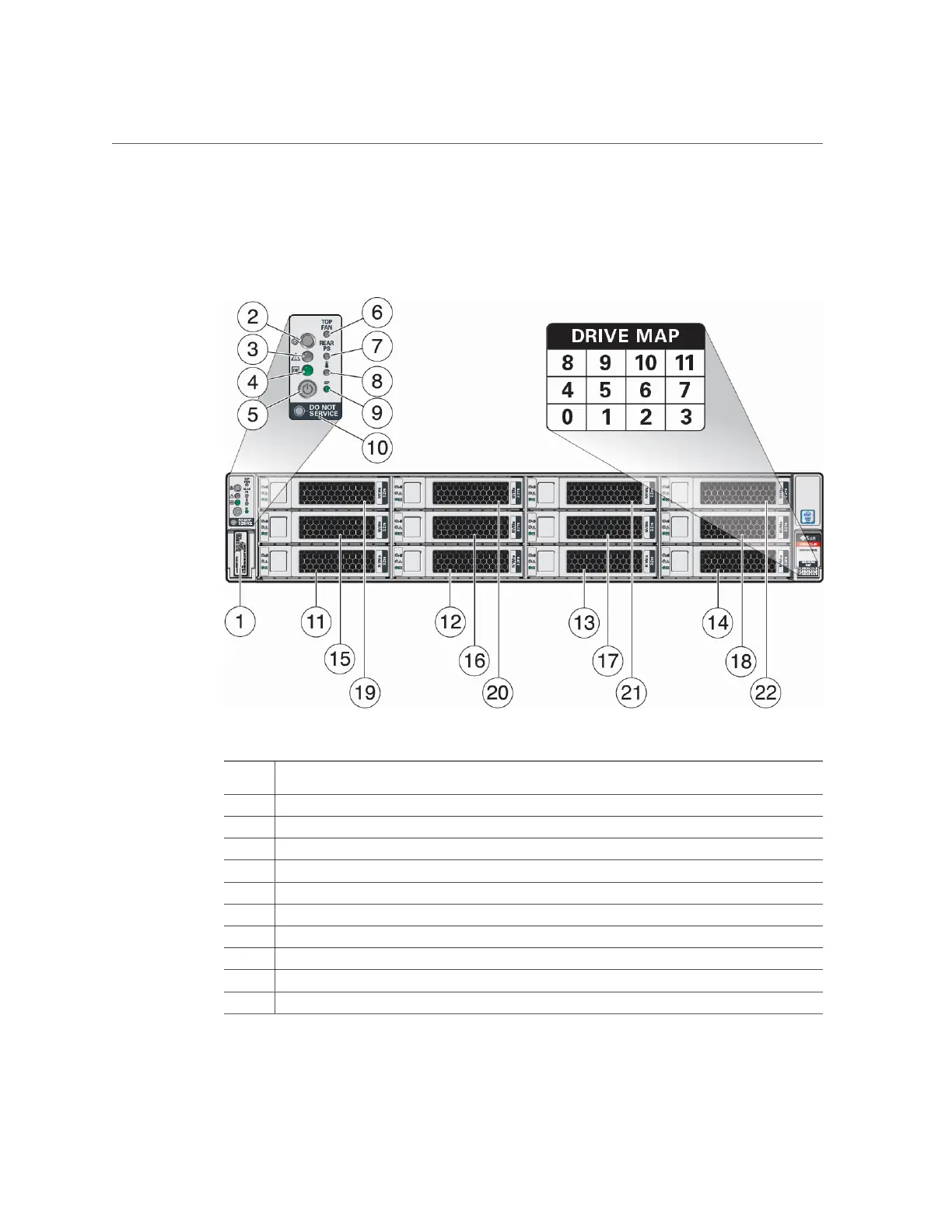

Front Panel Components
Call
Out
Description
1 Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag
2 Locate Button/LED: white
3 Fault-Service Action Required LED: amber
4 System OK LED: green
5 On/Standby button
6 Fault-Service Required LED: Top: Fan Module (amber)
7 Fault-Service Required LED: Rear: Power Supply (amber)
8 Fault-Service Required LED: Overtemp Icon: System Over Temperature Warning (amber)
9 SP OK LED: green
10 DO NOT SERVICE LED: white
About the Oracle Server X8-2L 17
