Oracle X8-2L Service Manual

Identify and Remove a DIMM
Identify and Remove a DIMM
1.
Prepare the server for service.
a.
Power off the server, and disconnect the power cords from the server power
supplies.
See “Powering Down the Server” on page 55.
b.
Extend the server into the maintenance position.
See “Extend the Server to the Maintenance Position” on page 62.
c.
Attach an antistatic wrist strap to your wrist and then to a metal area on the
chassis.
See “Take Antistatic Measures” on page 65.
d.
Remove the server top cover.
See “Remove the Server Top Cover” on page 65.
e.
Remove the air baffle.
See “Remove the Air Baffle” on page 113.
2.

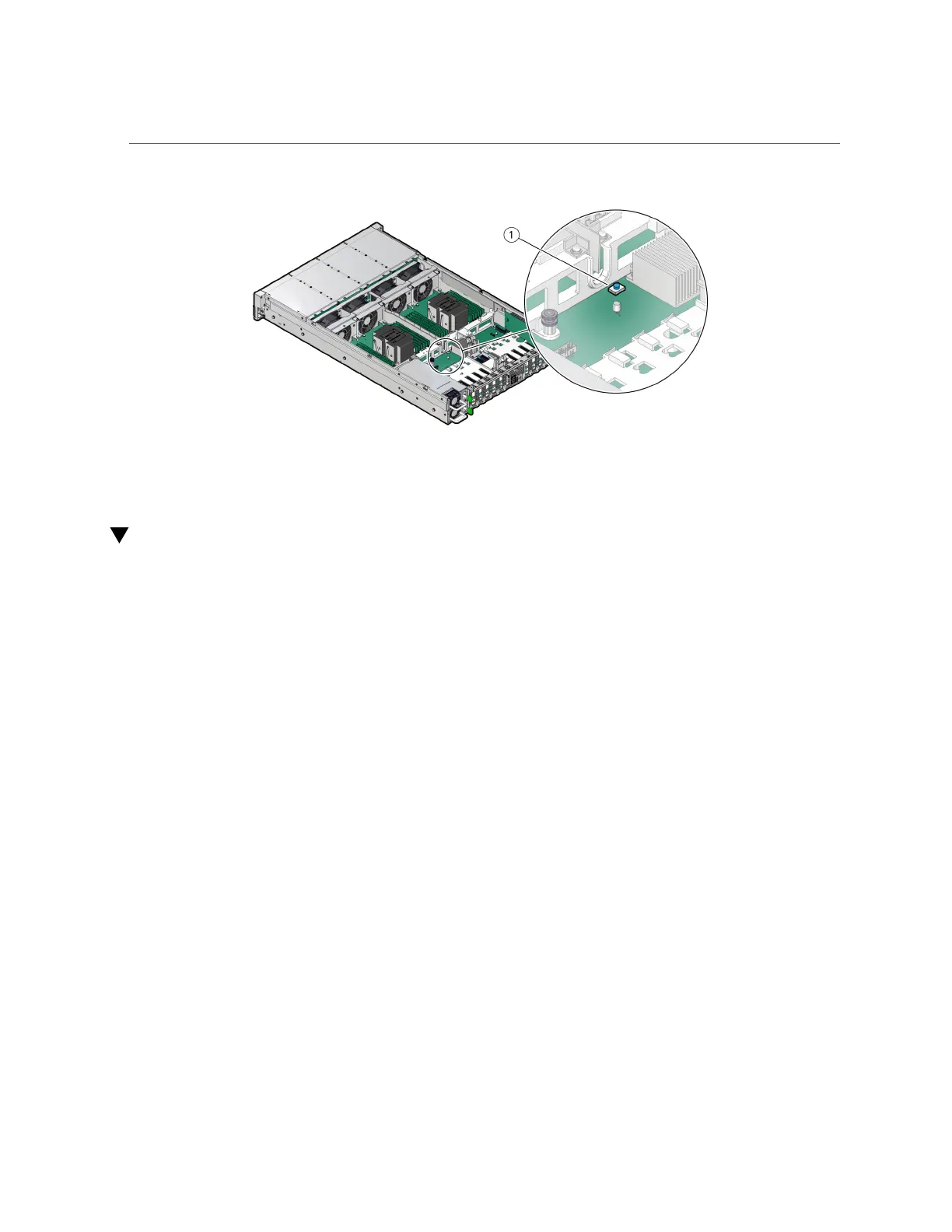

Identify and note the location of the failed DIMM by pressing the Fault Remind
button on the motherboard.
128 Oracle Server X8-2L Service Manual • January 2021
