Oracle X8-2L Service Manual

Install SAS Storage Drive Cables
Related Information
■
“Remove the Internal HBA Card and HBA Super Capacitor” on page 182
■
“Install SAS Storage Drive Cables” on page 192
Install SAS Storage Drive Cables
1.

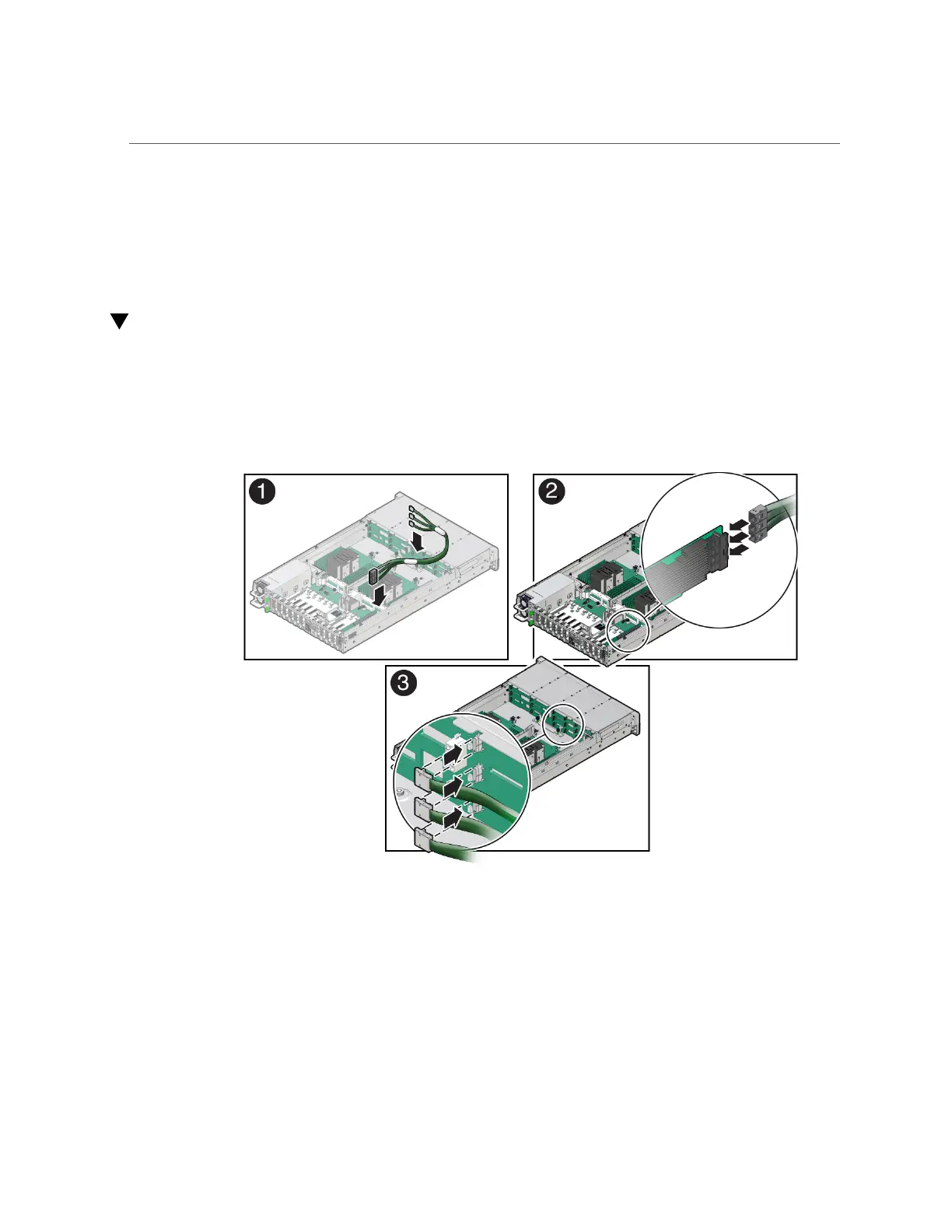

Install the SAS cables between the disk backplane and the rear PCIe slots [1].
Route the SAS cable bundle through the cable trough along the left side of the chassis.
2.
Reconnect the SAS cables to the Oracle Storage 12Gb SAS PCIe RAID HBA,
Internal card in PCIe slot 11 [2].
Plug each cable into its SAS connector until you hear an audible click. To ensure proper SAS
cable connections, see the SAS cable connections table in Step 3. See also “Install the Internal
HBA Card and HBA Super Capacitor” on page 185.
192 Oracle Server X8-2L Service Manual • January 2021
