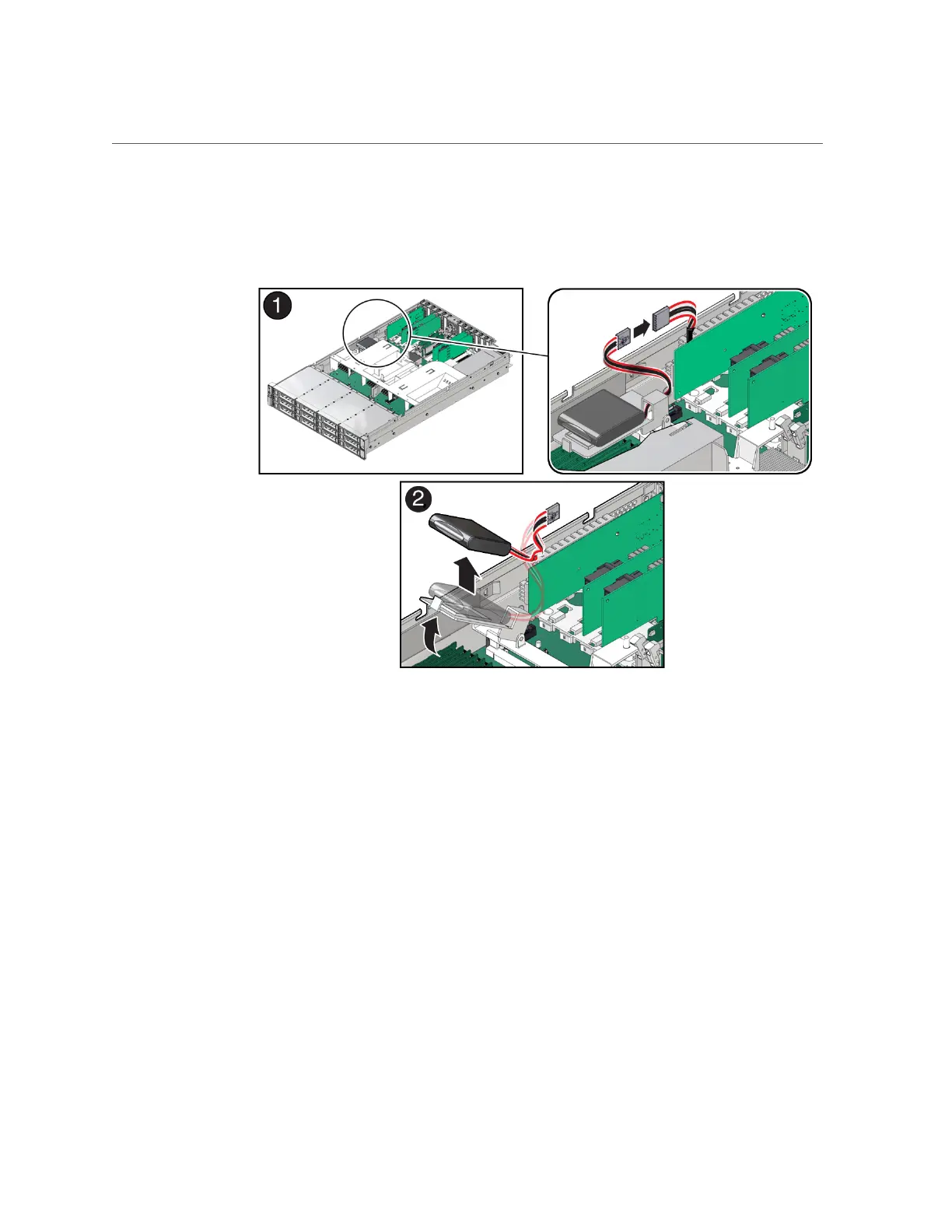

Remove the Internal HBA Card and HBA Super Capacitor

When removing the super capacitor, by careful not to snag the cable on the tray wire guide.

Place the super capacitor on an antistatic mat.

Servicing the Internal HBA Card (FRU) and HBA Super Capacitor (CRU) 183
