Extend the Server to the Maintenance Position
Although the cable management arm (CMA) that is supplied with the server is hinged to
accommodate extending the server, you should ensure that all cables and cords are capable of
extending.
3.

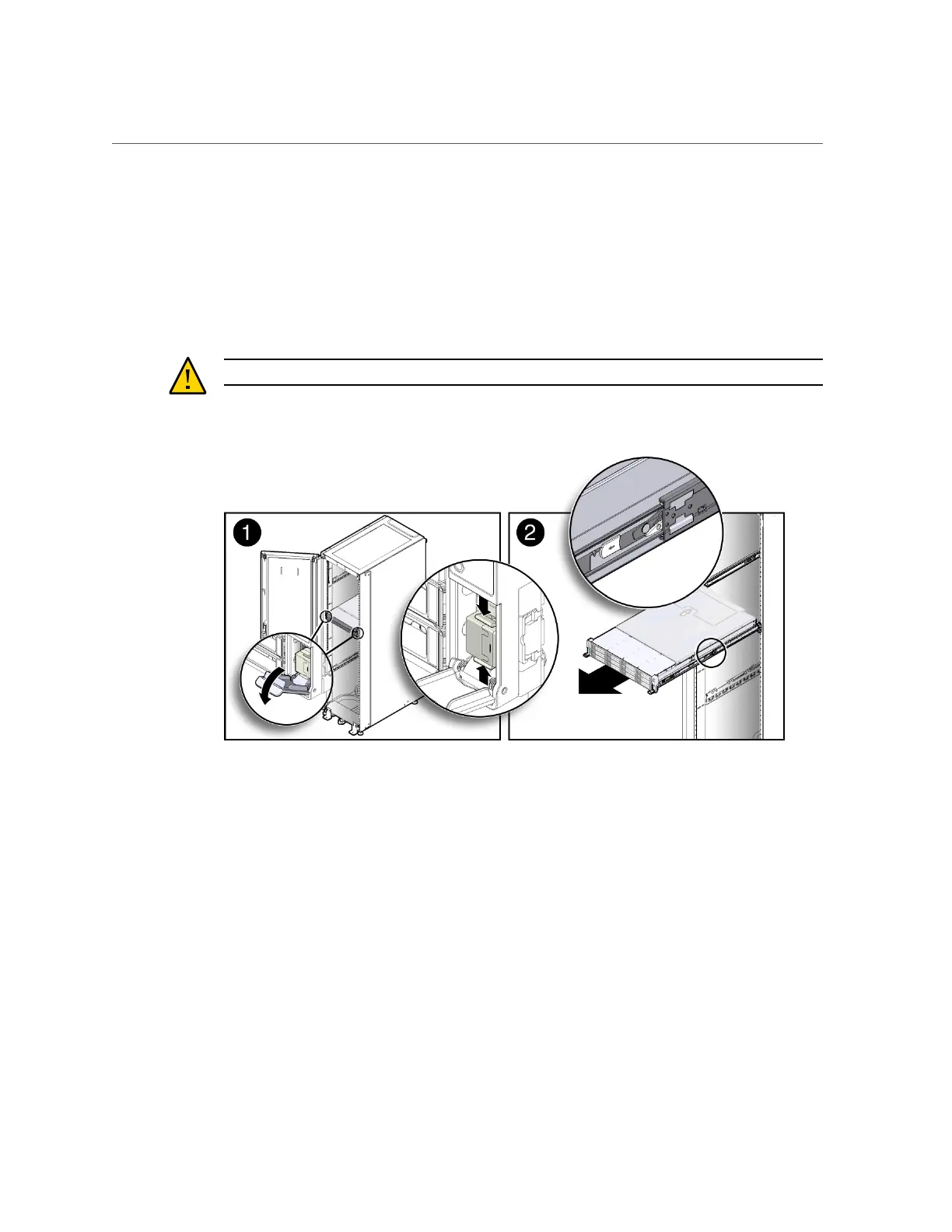

From the front of the server, open and hold the left and right release latch covers
in the open position.
When in an open position, the release latch covers engage the slide-rail release latches [1].
Caution - Deploy any rack anti-tilt mechanism before releasing the slide-rail release latches.
4.
While the release latch covers are in the open position, slowly pull the server
forward until the slide-rails latch into a locked position [2].
The server is now in the extended maintenance position.
Related Information
■
“Disconnect Cables From the Server” on page 61
■
“Remove the Server From the Rack” on page 64
■
“Reinstall the Server Into the Rack” on page 219
Preparing for Service 63
