Oracle X8-2L Service Manual

Remove a Fan Module
1.
Extend the server to the maintenance position.
See “Extend the Server to the Maintenance Position” on page 62.
2.
To access the fan modules, remove the server top cover.
See “Remove the Server Top Cover” on page 65.
3.
Identify the faulty fan module.
Each fan module has a fan status indicator (LED) that is located next to the module. If the LED

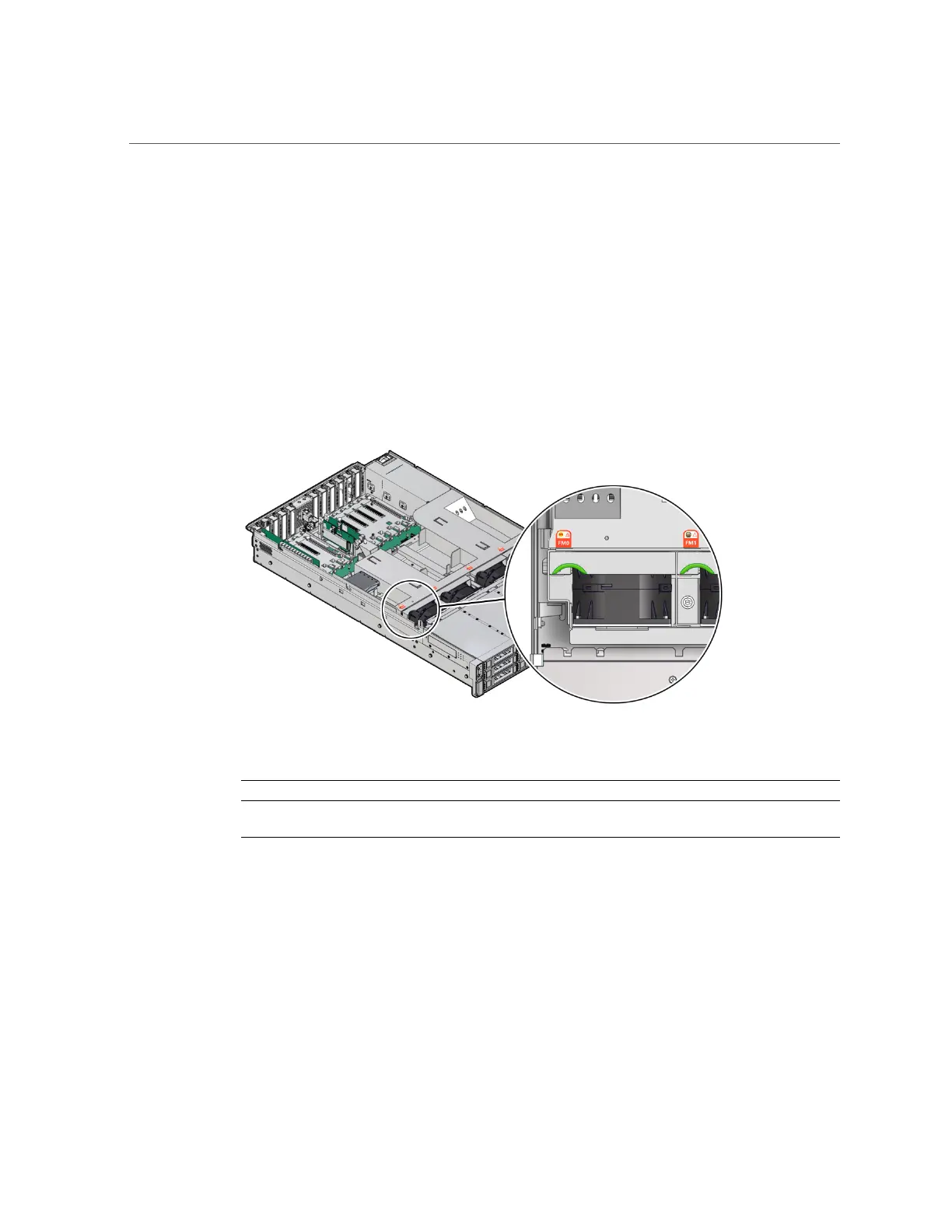

is amber, the fan has failed. The location of the fan status LED is shown in the following figure.
LED Color and State Meaning
Amber – The fan module is faulty. The front Top Fan LED and the front and back panel Fault-Service Required
LEDs are also lit if the system detects a fan module fault.
86 Oracle Server X8-2L Service Manual • January 2021
