339
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

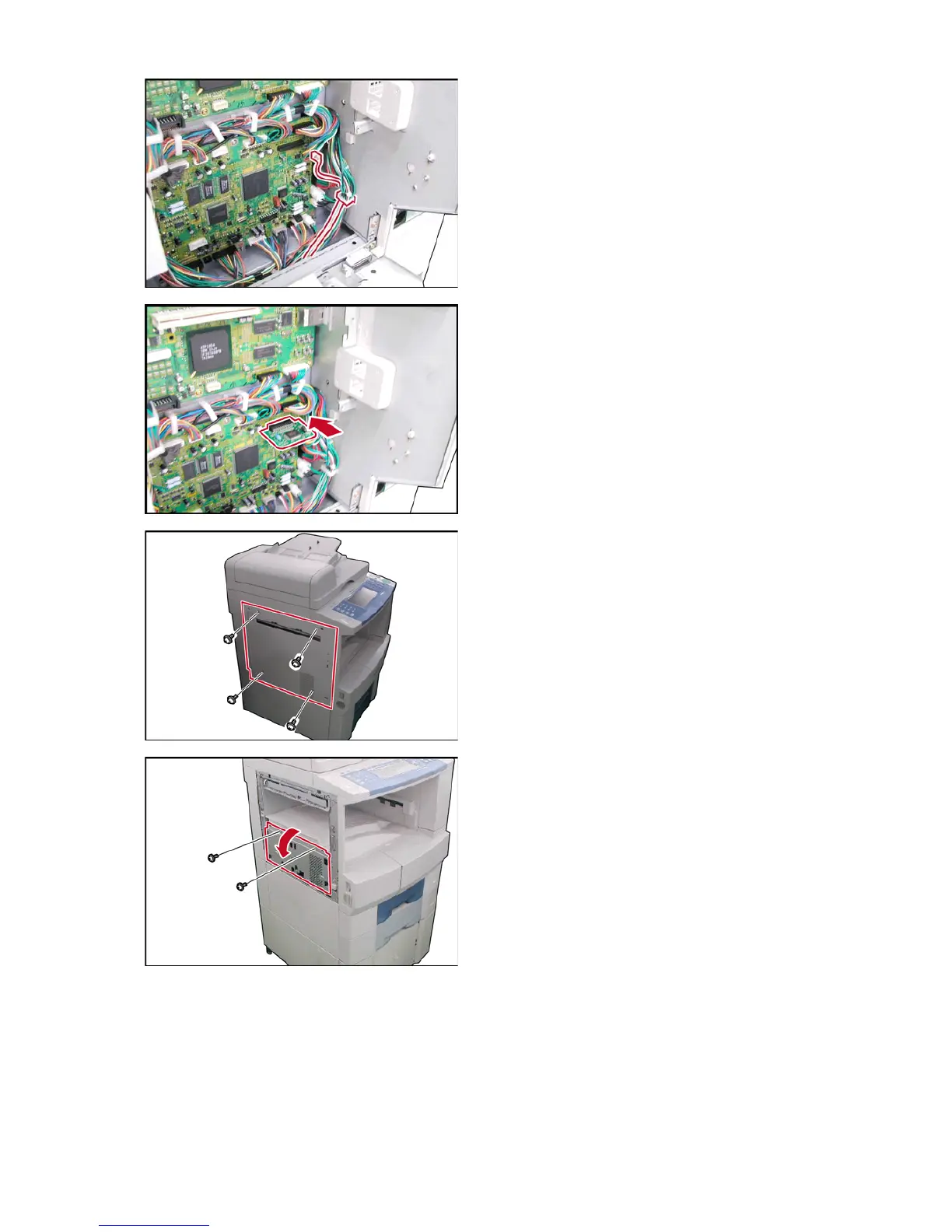

(20) Pull the FNS Harness from the bottom hole and
secure with the Harness Clamp.
(21) Connect the Harness to CN724 on the SPC PC
Board.
(22) Install the Finisher IPC PC Board to CN725 on
the SPC PC Board.
(23) Remove 2 Shoulder Silver Screws (Upper) and
2 Silver Screws (Lower).
(24) Remove the Left Cover.
(25) Remove 2 Screws.
(26) Open the LVPS Cover.
To Next Page
