340
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

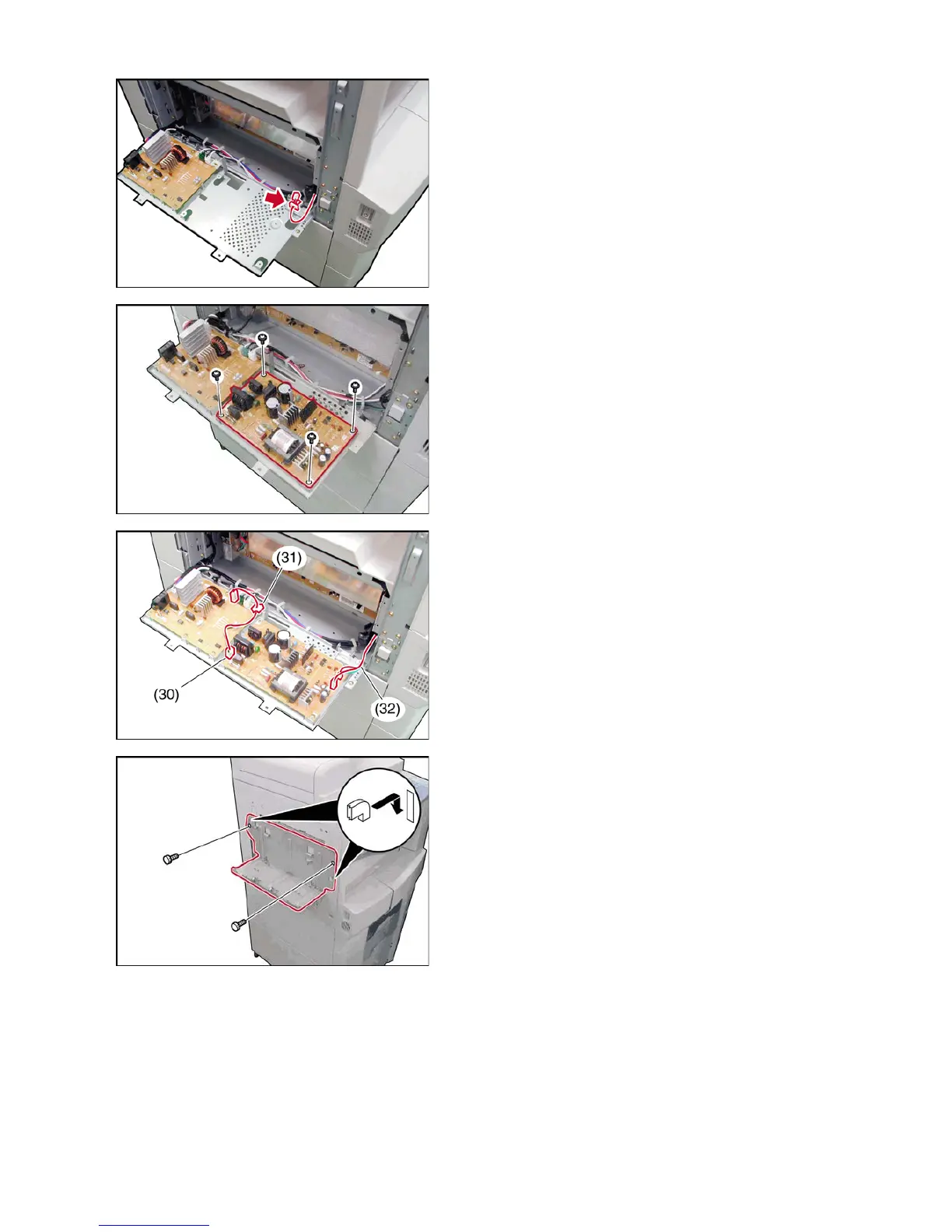

(27) Release the pre-installed Harness from the
Harness Clamp.
(28) Install the Optional LVPS.
(29) Secure the Optional LVPS with 4 Screws
(XTW3+6LFC).
(30) Connect the LVS2 Harness to CN64 on the
Optional LVPS and to CN102 on ACD PC Board.
(31) Secure the LVS2 Harness with the Harness
Clamp.
(32) Connect the pre-installed Harness to CN65 and
CN66 on the Optional LVPS.
(33) Close the LVPS Cover.
(34) Reinstall the Left Cover.
(35) Hook the Base Bracket and secure with 2 Silver
Thumb Screws (PF4124P023).
Note:
a. Ensure that the Mylar Sheet on the Base Bracket
does not get damaged.
b. It is easier to align the screw holes, if you insert
the Front Screw first.
To Next Page
