1 ADJUSTING AND CALIBRATING X-RAY BEAM Chapter E: CALIBRATIONS
98 Planmeca ProOne Technical manual
On the

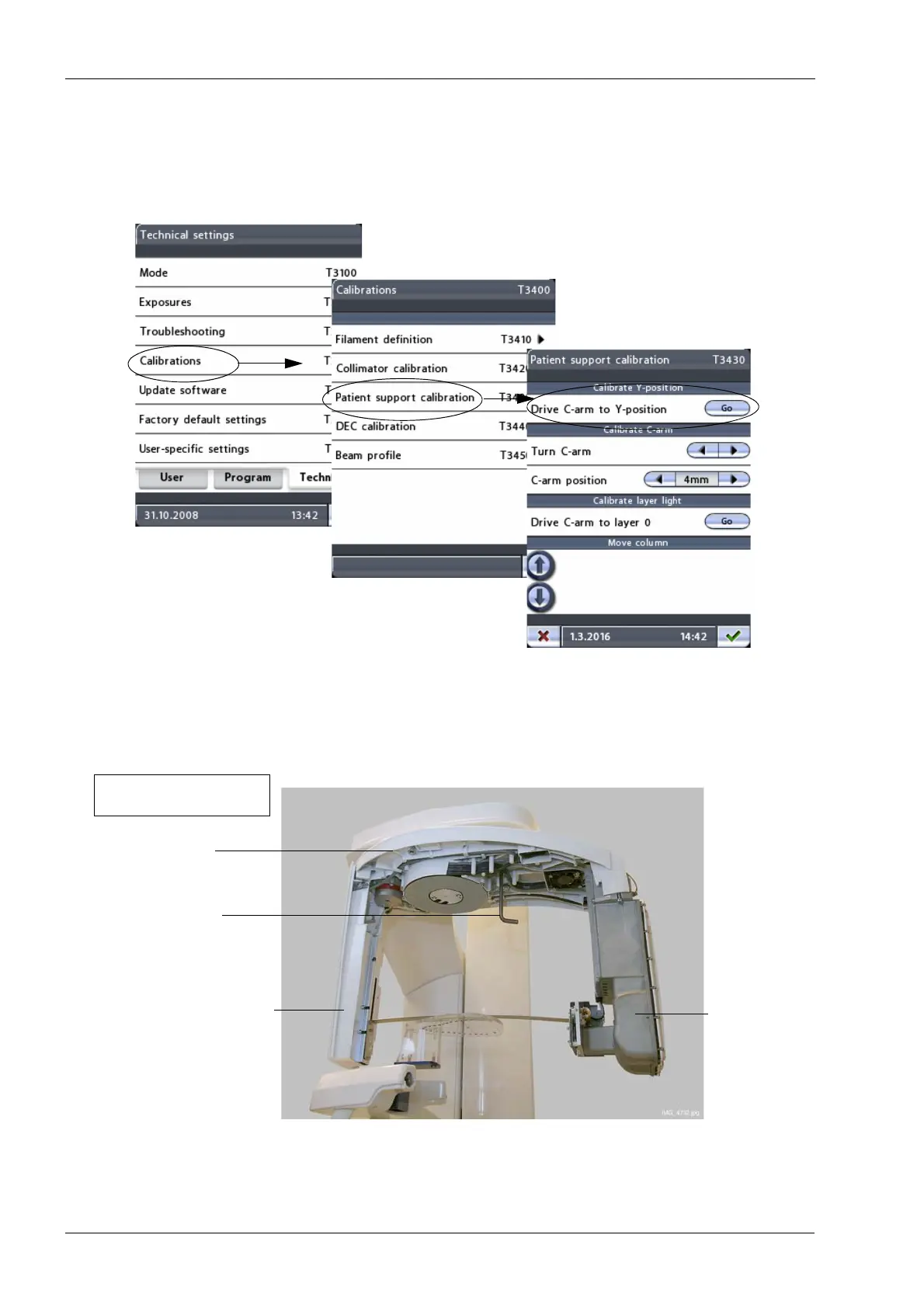

Calibrations (T3400)
display, select the option Patient support calibration (T3430).
The
Patient support calibration
(T3430)
display will appear.
Touch the Go button in the field
Drive C-arm to y-position
to move the C-arm to Y-position.
In this position, the C-arm is positioned perpendicular to the arm of the patient support
table (see figure below).
Use an alignment pin to lock the C-arm in this position. To do this, insert the alignment pin
into the hole located in the middle of the C-arm top frame and ensure that the alignment
pin reaches the positioning hole in the linear movement block.
C-arm top frame
Alignment pin
Tube head
Sensor head
C-arm in Y-position;
side view
