Chapter F: PARTS REPLACEMENT AND REPAIR 3 COLUMN PARTS REPLACEMENT
Technical manual Planmeca ProOne 133

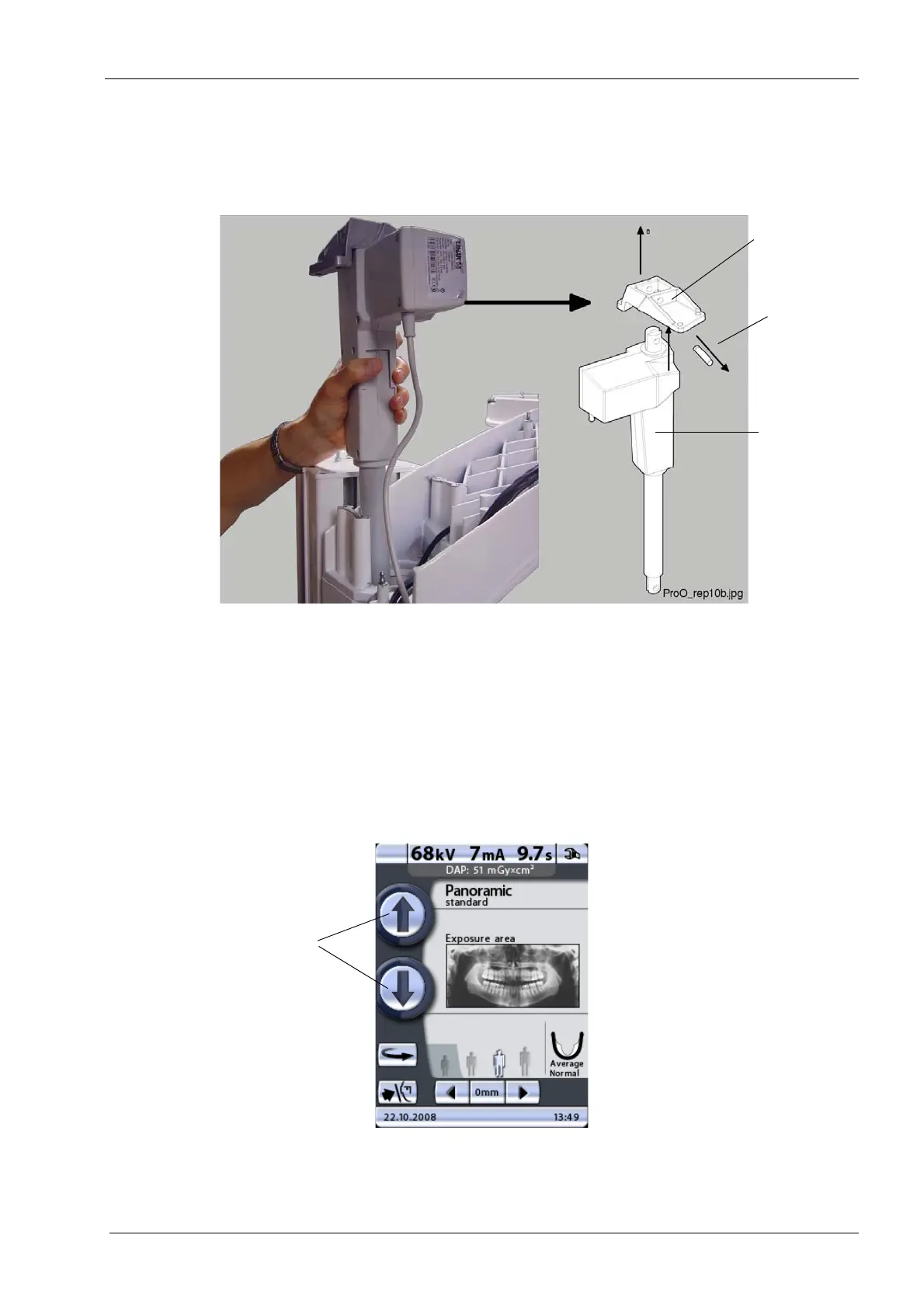

You can now lift the lift motor out of the column.
Detach the mounting block from the lift motor. To do this, loosen the locking screw that
holds the mounting block shaft in position and remove the mounting block shaft.
Install a new lift motor in reverse order.
Remove the locking pin from the back of the X-ray unit.
Check that the lift motor operates correctly. Switch the X-ray unit on and drive it up/down a
couple of times to assure smooth operation.
Mounting
block
Lift motor
Shaft
Locking screw
