2. Check the length of the new cables, especially the length from the mark to the C-arm

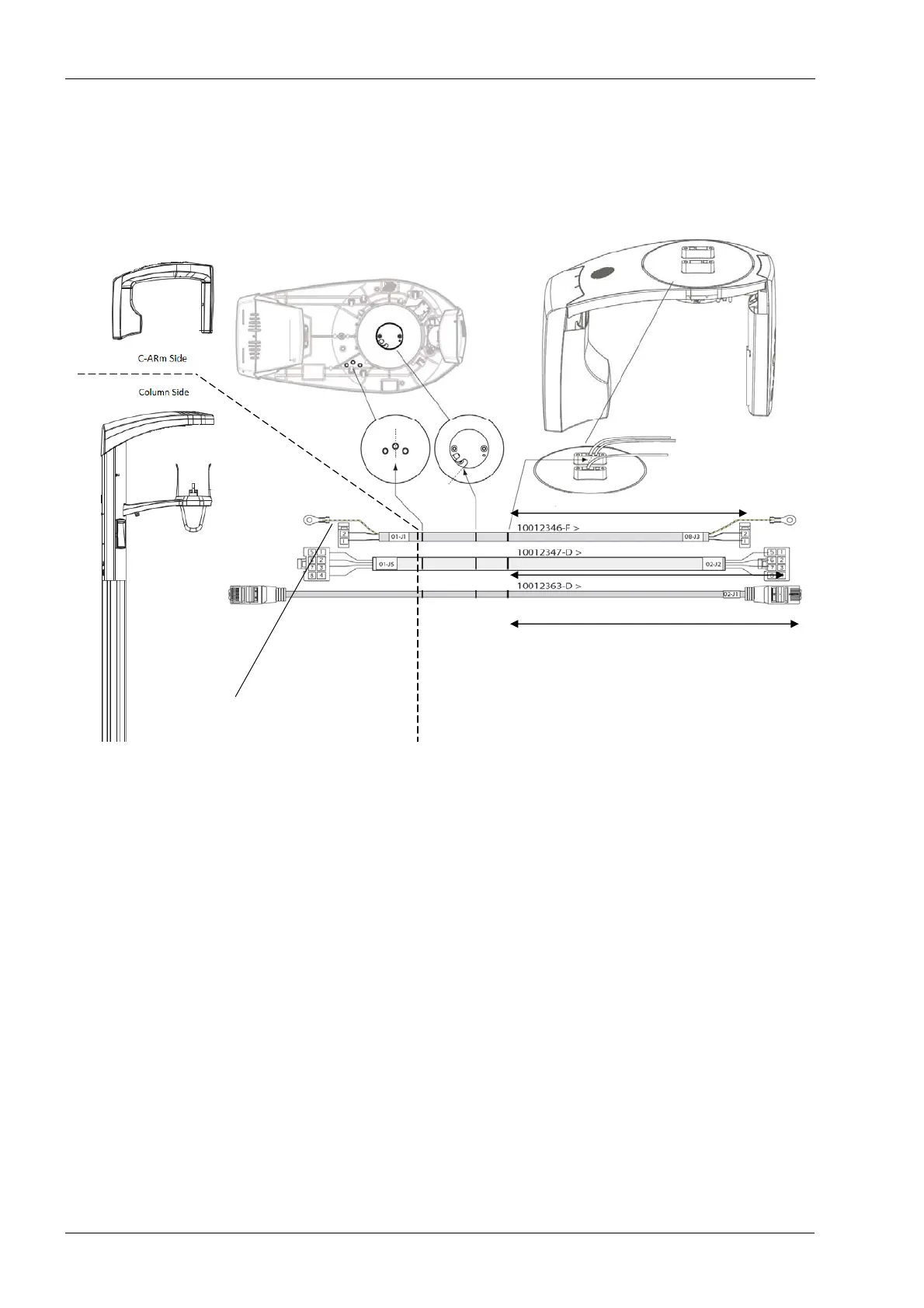

side end. The cables are routed as shown on the figure below. C-arm power cable
part number 10012346, PSU CAN cable 10012347 and C-arm camera cable
10012363. Note, that the grounding lead of the power cable column end is longer than
the grounding lead of the C-arm end.
3. If the C-arm camera cable is not attached to the C-arm power cable, attach the cables
together with a cable tie.
