4 C-ARM AND UPPER ARM PARTS REPLACEMENT Chapter F: PARTS REPLACEMENT AND REPAIR
178 Planmeca ProOne Technical manual

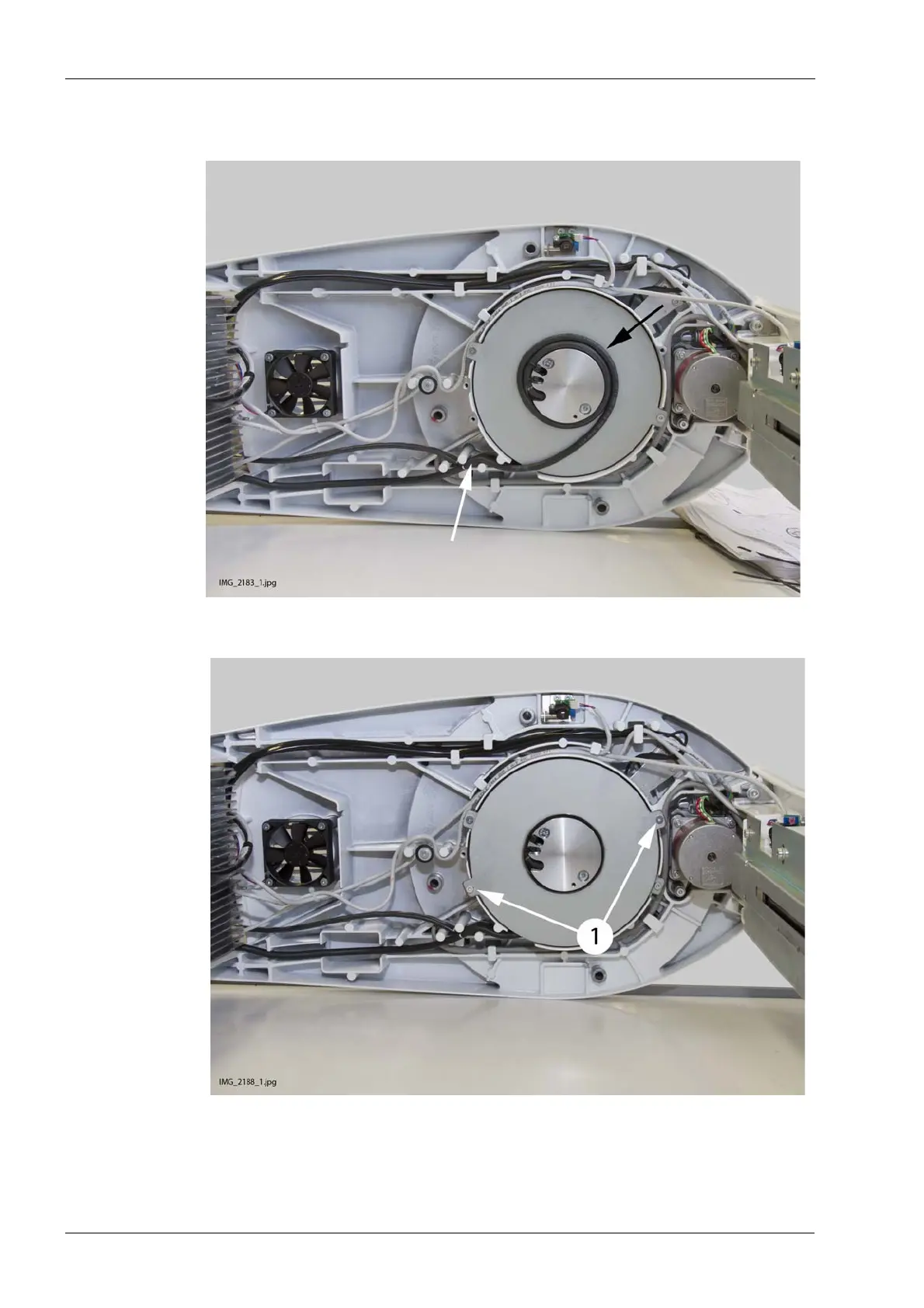

11. Rotate the C-arm power cable 1.5 turns around the cable guide (black arrow) and out
from the cable opening and through the cable guiding pins (white arrow).
12. Attach the cable plate (1).
