Chapter B: SETTINGS 2 USER SETTINGS
Technical manual Planmeca ProOne 37

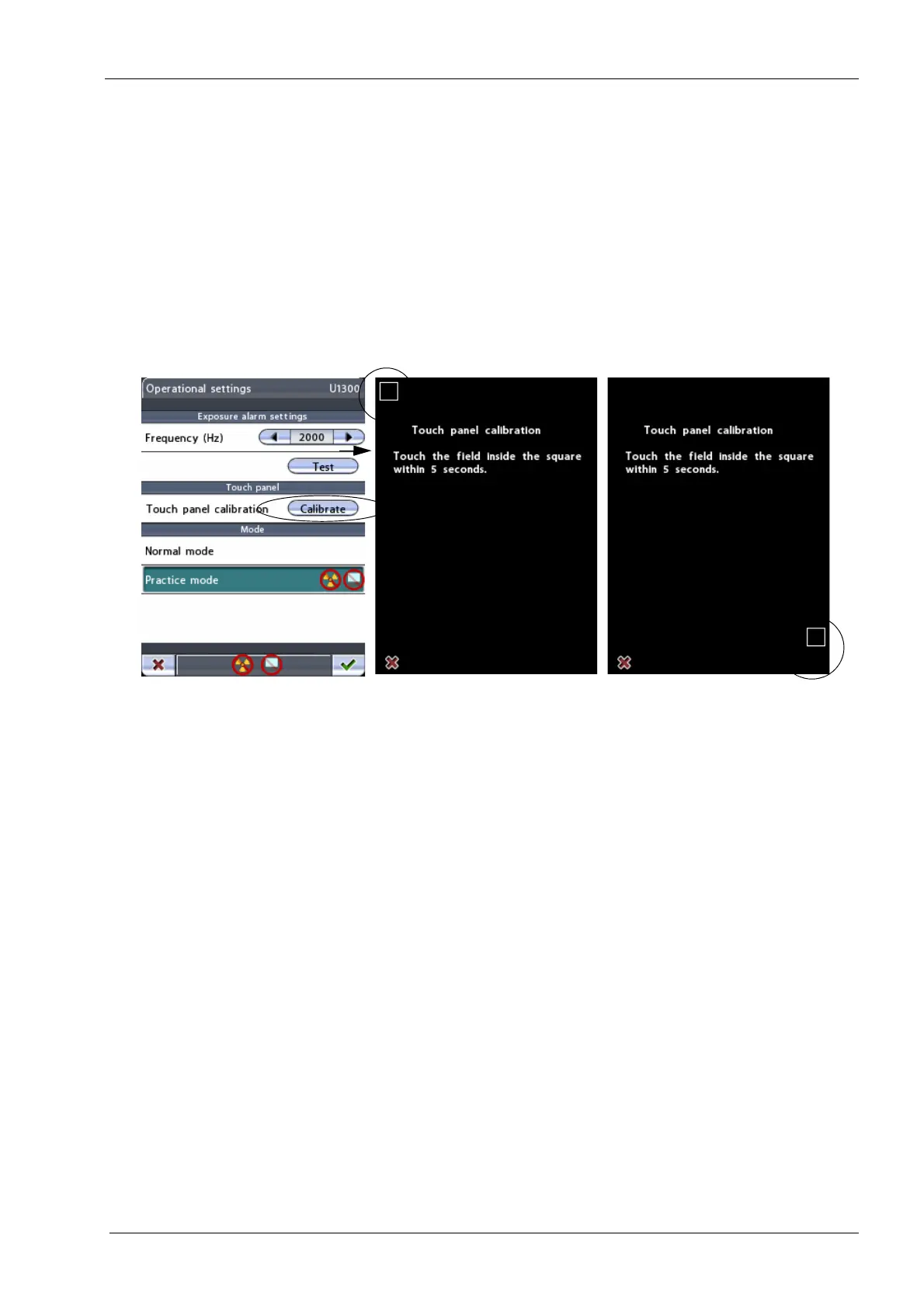

• Touch panel
Touch the
Calibrate
button to calibrate the touch panel. Touch panel calibration
adjusts the panel to respond to the pressure level of your finger touch.
A black calibration display with a white square in the top left corner will appear. Touch
the square to “teach” the panel the pressure of your individual finger touch and to
make it react rapidly to this pressure level. Another black calibration display with a
white square in the bottom right corner will appear. Again touch the square. Note that
you have to touch the square within five seconds as the calibration procedure will be
cancelled once this time limit has expired.
To cancel the calibration procedure, touch the red cross button in the bottom left
corner of the display.
• Mode
Normal mode: Touch the
Normal mode
field to switch normal operating mode on.
When normal mode is in use the
Normal mode
field is shown highlighted.
Practice mode: Practice mode enables the user to practice/demonstrate program
functions available on the X-ray unit. In practice mode no radiation is generated when
the exposure button is pressed and there is no connection to a computer. The C-arm
will move normally but no radiation will be generated and no radiation warning signals
will be given, i.e. this is a “dummy run” function for training and demonstration
purposes. For example, users might want to demonstrate the C-arm movements
before taking exposures of children or nervous patients.
Touch the
Practice mode
field to switch practice mode on. When practice mode is in
use the
Practice mode
field is shown highlighted and symbols indicating that radiation
and PC connection are disabled will appear in the status bar on all displays.
To switch practice mode off, touch the
Normal mode
field.
NOTE: Alternatively, practice mode can be switched on/off via Technical tab
(Technical > Mode > Practice mode).
First touch here...
...and then here
