FUEL SYSTEM AND AIR INTAKE MAINTENANCE
FUEL LINES

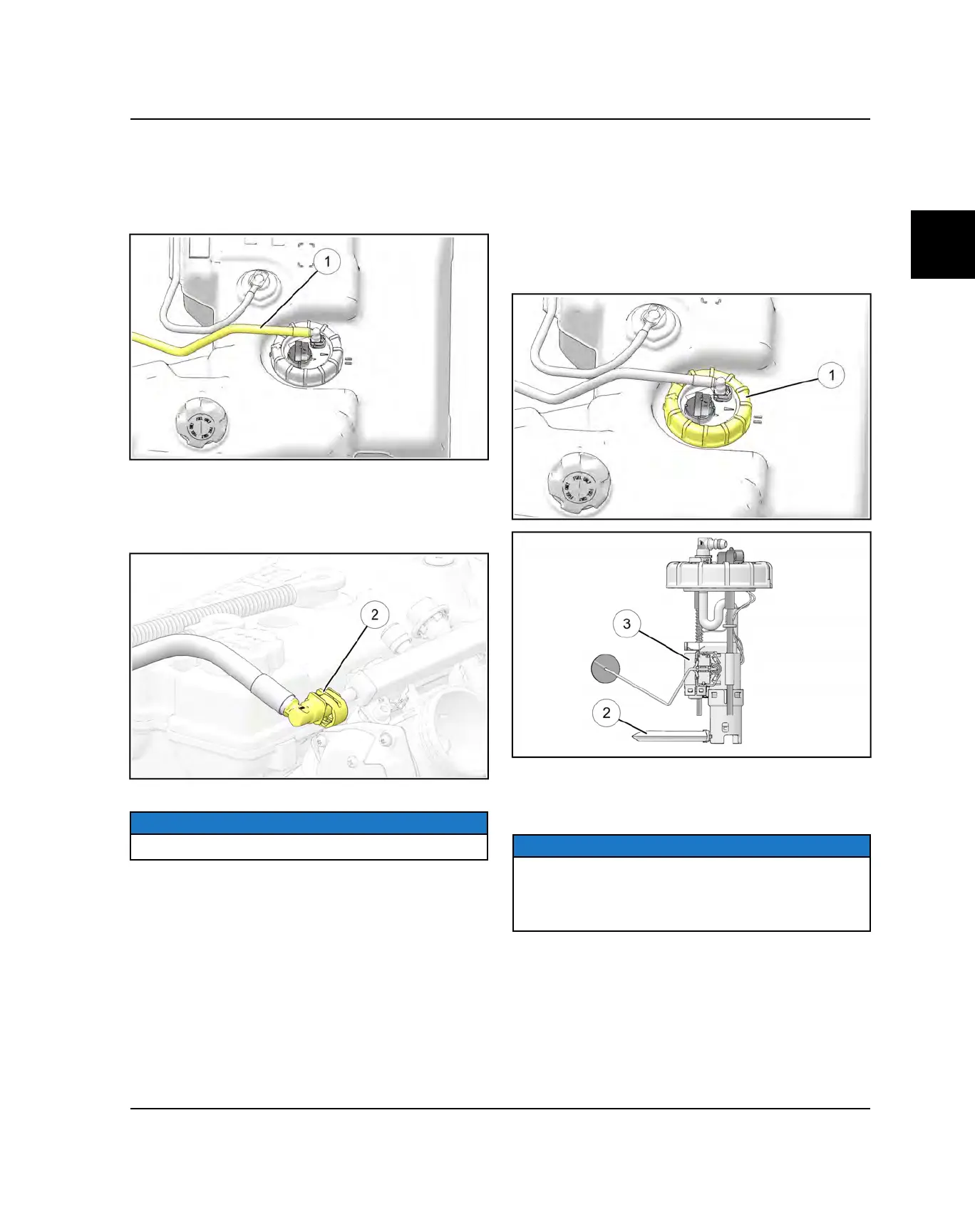

1. Check the quick-connect fuel line
q
at the fuel tank
for signs of wear, deterioration, damage or leakage.
Replace line(s) if necessary.
2. Locate the fuel supply fitting
w
through the right rear
wheel well on the upper right side of the engine.
Check the line and quick-connect fitting for signs of
wear, deterioration, damage or leakage. Replace line
if necessary.
3. Be sure fuel lines are routed and retained properly.
NOTICE
Make sure lines are not kinked or pinched.
FUEL PUMP / FUEL FILTERS
The fuel pump assembly
q
is located in the fuel tank
under the passenger seat.
This engine uses a serviceable, high-volume, high-
pressure, fuel pump that includes a preliminary filter
w
and an internal fine filter
e
located before the pump
regulator.
Cycle the ignition key to pressurize the fuel pump in
accordance with the periodic maintenance chart. Inspect
pump for damage or leaks.
NOTICE
Neither filter is serviceable individually. Must replace
the fuel pump as an assembly.
Refer to Chapter 4 for fuel pump replacement and all
other information related to the EFI System.
