10
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
10.23
ASSEMBLY VIEWS - BRAKE SYSTEM (GENERAL XP / GENERAL XP 4)

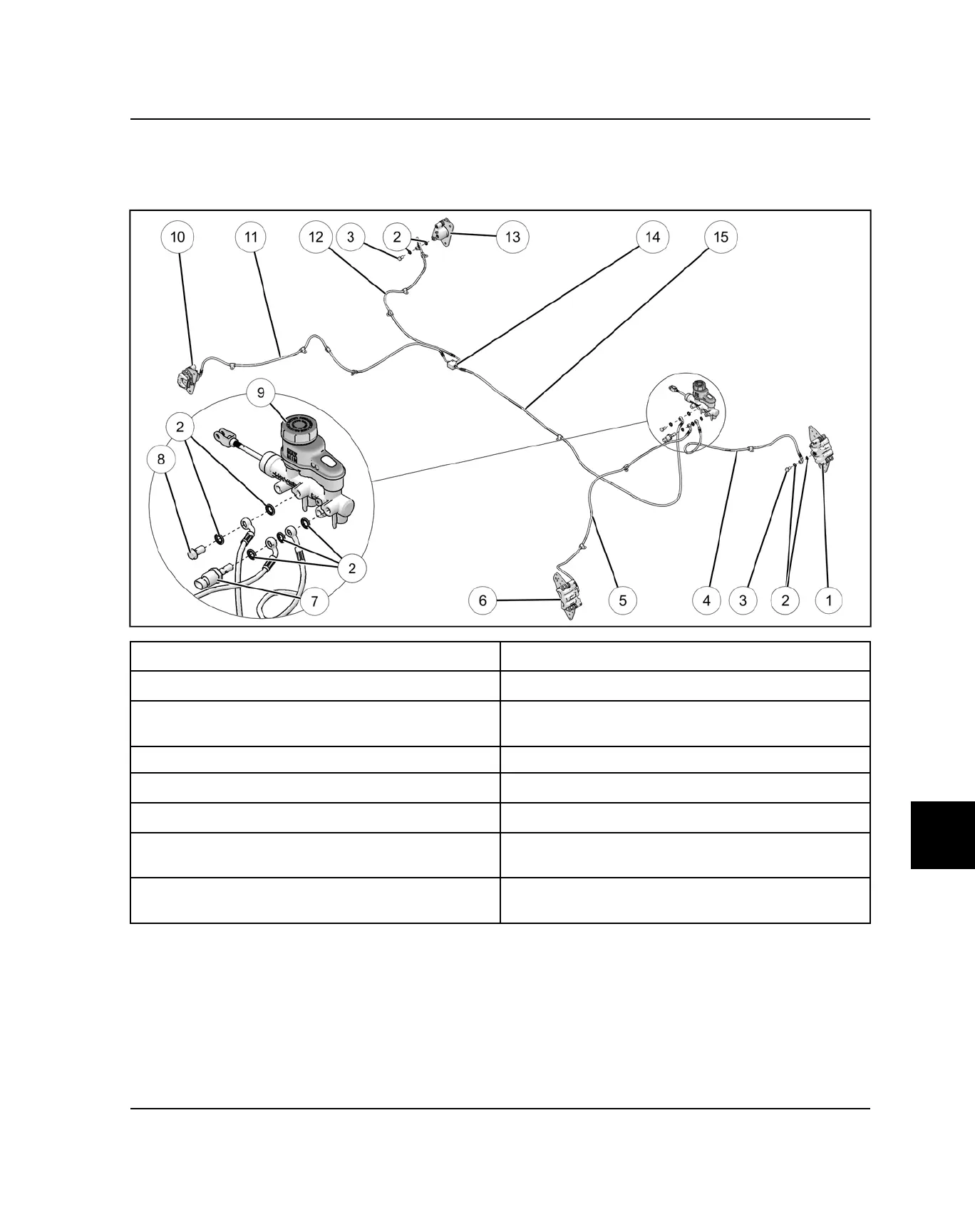

BRAKE SYSTEM ASSEMBLY VIEW - GENERAL XP
BRAKE SYSTEM COMPONENTS
q
LH Front Brake Caliper
o
Master Cylinder
w
Stat-O-Seals
a
RH Rear Brake Caliper
e
Banjo Bolt
15 lb-ft (20 Nm)
s
Rear Right Brake Line
r
Front Left Brake Line
d
Rear Left Brake Line
t
Front Right Brake Line
f
LH Rear Brake Caliper
y
RH Front Brake Caliper
g
Junction Block
u
Brake Switch
15 lb-ft (20 Nm)
h
Master Cylinder Brake Line
i
Banjo Bolt
15 lb-ft (20 Nm)
BRAKE SYSTEM
