RIDE COMMAND WITH ROCKFORD FOSGATE STAGE 4 AUDIO

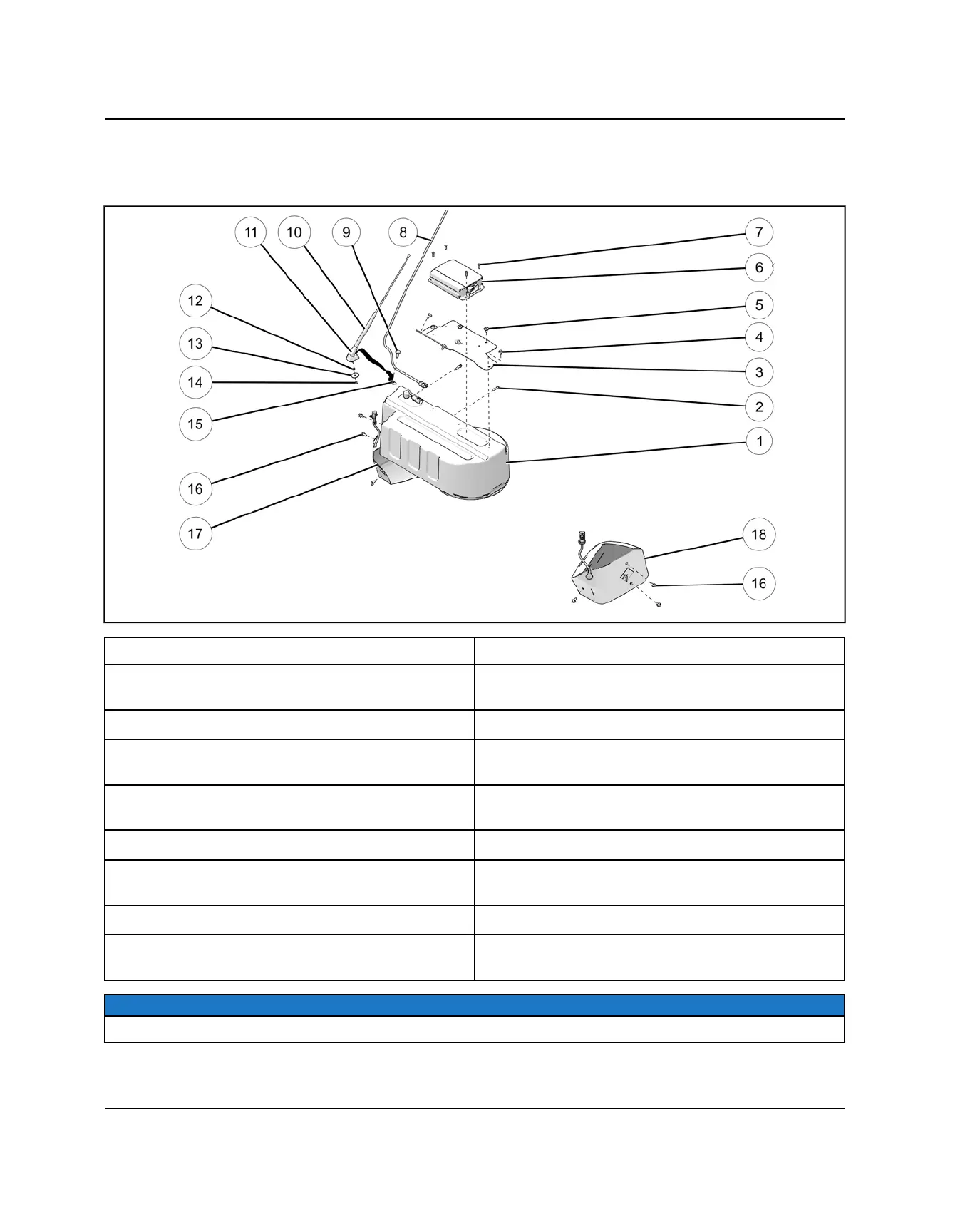

ROCKFORD FOSGATE AUDIO ASSEMBLY VIEW
FRONT VIEW
q
Subwoofer
a
AM/FM Antenna
w
Subwoofer Mounting Fasteners
30 in-lbs (4 Nm)
s
Antenna Mount
e
Subwoofer / Amp Bracket
d
Washer
r
Subwoofer / Amp Bracket Fasteners
30 in-lbs (4 Nm)
f
Washer
t
Subwoofer / Amp Bracket Fasteners
30 in-lbs (4 Nm)
g
Nut
25 in-lbs (3 Nm)
y
Amplifier
h
AM/FM Antenna Ground Strap
u
Amp Fasteners
30 in-lbs (4 Nm)
j
Front Speaker Mounting Fasteners
30 in-lbs (4 Nm)
i
Rear Audio Harness
k
RH Speaker Asm.
o
AM/FM Antenna Ground Strap Fastener
14 ft-lbs (19 Nm)
l
LH Speaker Asm.
NOTICE
2-Seat and 4-seat rear speaker harness is identical except for length.
