9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
WHEEL HUBS - GENERAL XP / GENERAL XP 4

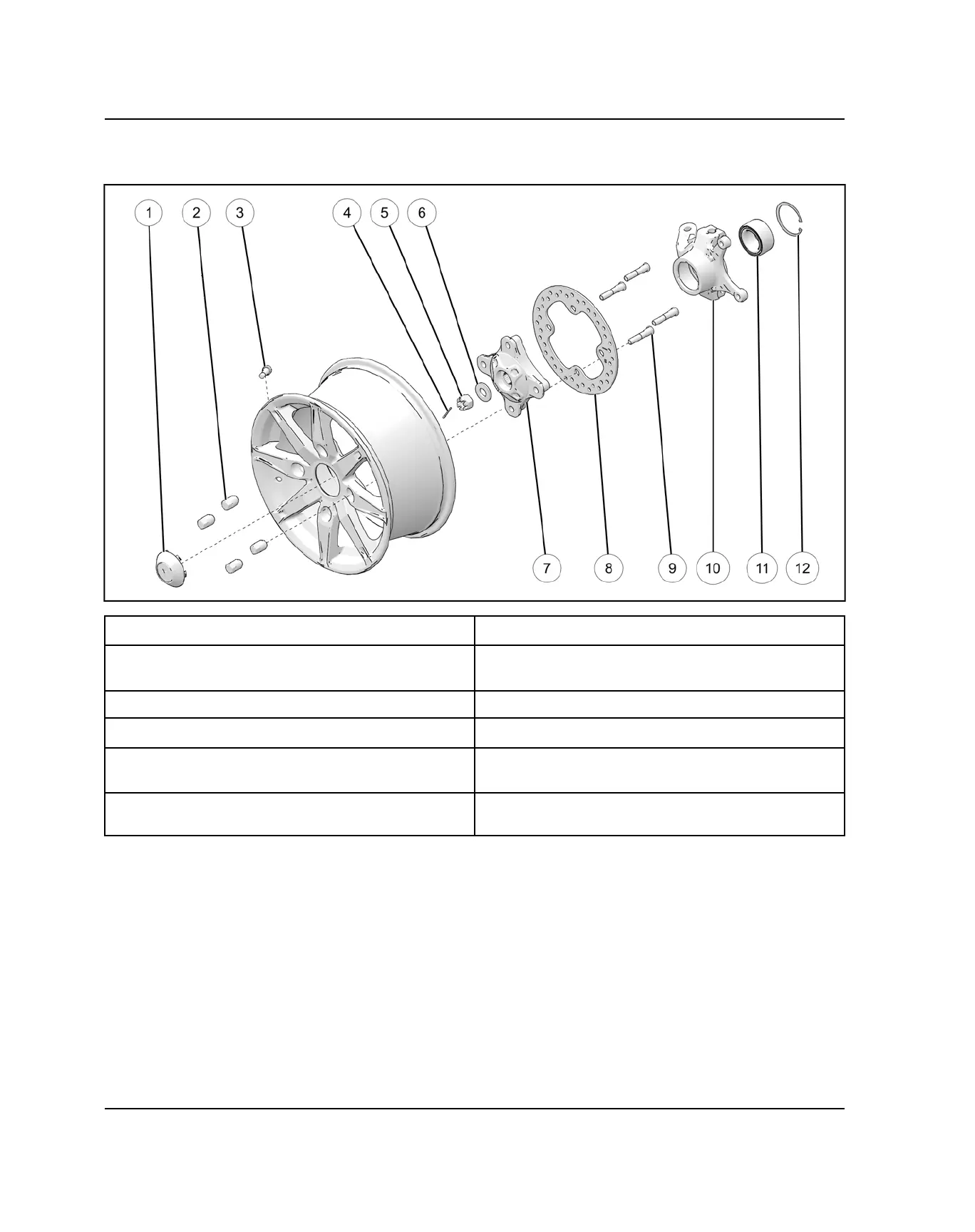

FRONT HUB ASSEMBLY VIEW
q
Rim Cap
u
Wheel Hub
w
Wheel Nut
120 lb-ft (163 Nm)
i
Brake Disc
e
Valve Stem
o
Wheel Studs
r
Cotter Pin
a
Bearing Carrier
t
Hub Castle Nut
180 lb-ft (244 Nm)
s
Wheel Bearing
y
Washer
Install washer with domed side out
d
Snap Ring
