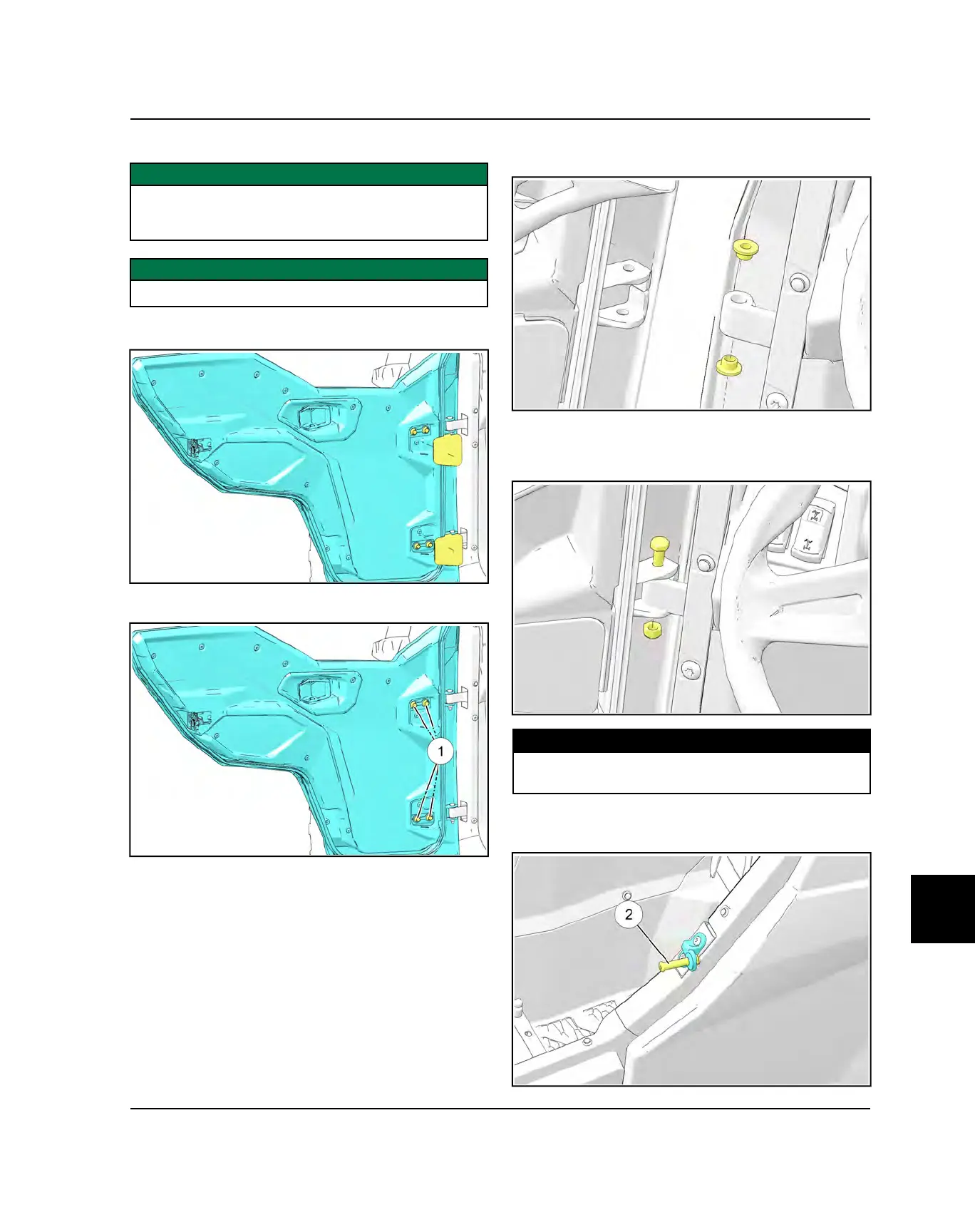

DOOR INSTALLATION
IMPORTANT
Be careful not to damage body panels during door
adjustment. Leave the packaging on the door until fully
installed.
IMPORTANT
Ensure ROPS are installed before installing the door.
1. Remove plastic covers off of door panel.
2. Loosen 13mm door hinge fasteners
q
.
3. With the help of an assistant, align the Driver door
hinges with door hinge mounting brackets.
4. Place door pivot bushings in door hinge mounting
brackets.
5. Install the door hinge pivot bolts and nuts into the
door hinges using a 13mm socket and wrench.
Torque the nuts to specification.
TORQUE
Door Hinge Pivot Nut:
8 lb-ft (11 Nm)
6. Verify the stiker is in a nominal position both vertically
and laterally and adjust if needed.
