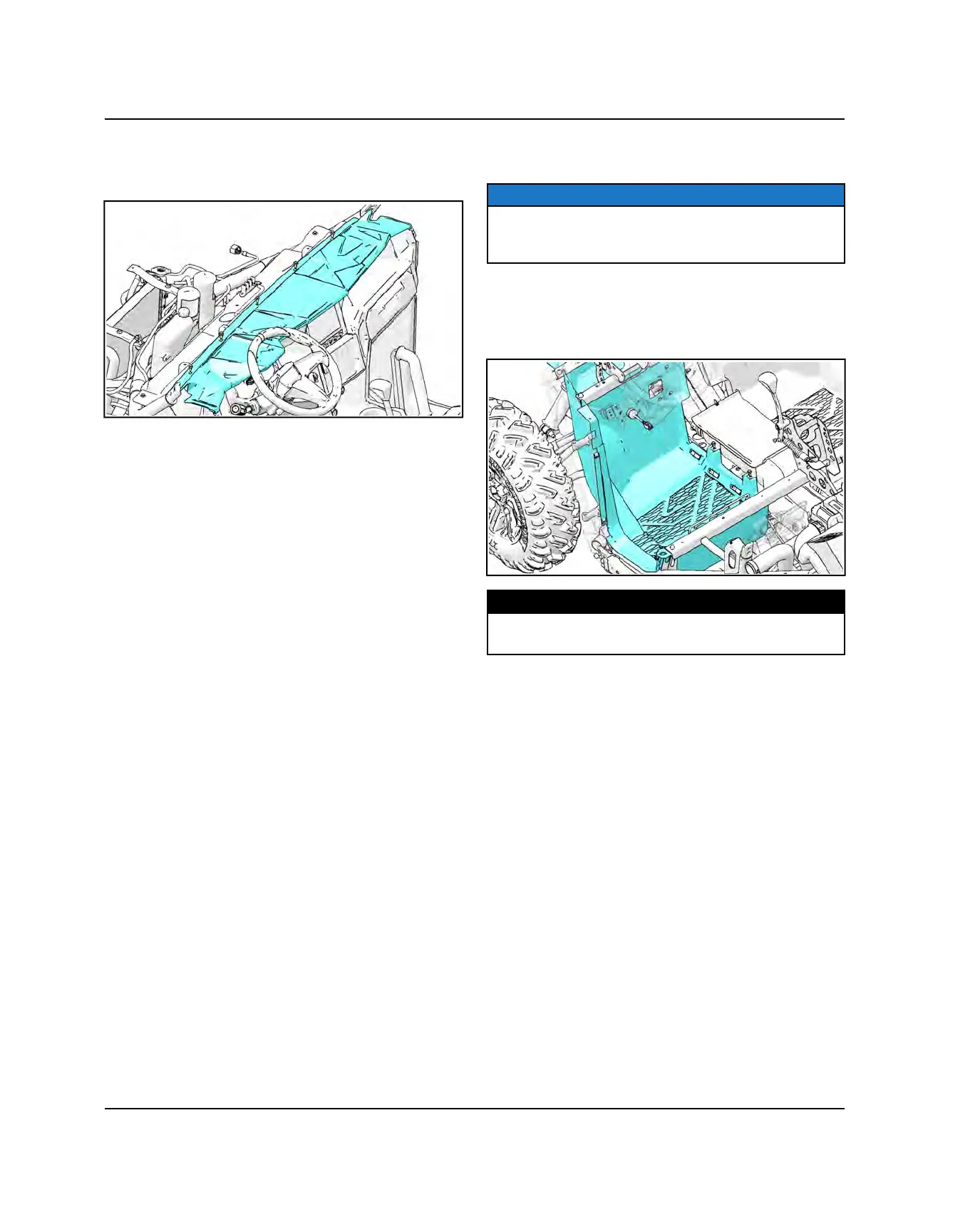

UPPER DASH PANEL INSTALLATION
1. Install the fasteners holding the upper dash panel to
the vehicle.
2. Install the hood, front and rear fenders, and rocker
panels. Refer to “Exterior Body Component
Installation” page procedure.
INTERIOR BODY COMPONENT
INSTALLATION - GENERAL 4
NOTICE
ROPS shown removed for illustration purposes only. It
is not necessary to remove the ROPS to remove the
interior body components.
MAIN FLOOR INSTALLATION
1. Install the RH and LH main floors in the vehicle and
install the fasteners holding the main floors to the
vehicle. Torque the fasteners to specification.
TORQUE
Floor Fasteners:
3.5 lb-ft (4.7 Nm)
2. Install the brake pedal, accelerator pedal, and
mounting bracket. Refer to “Brake Pedal
Installation” page 10.48 procedure.
BODY / FRAME
