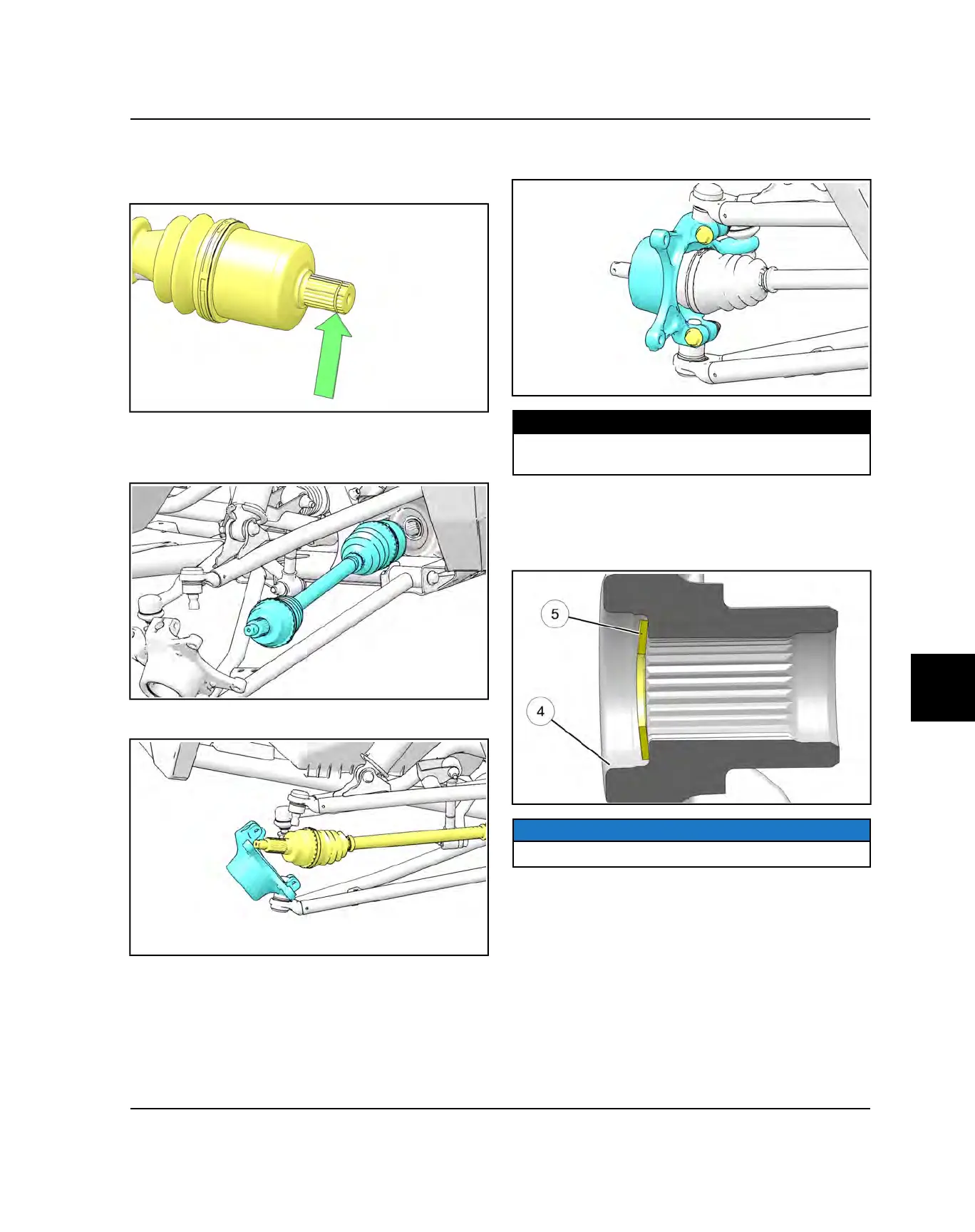

FRONT DRIVE SHAFT INSTALLATION
1. Install new spring ring on drive shaft. Apply an anti-
seize compound to the splines.
2. Align splines of drive shaft with front gearcase and
reinstall the drive shaft. Use a rubber mallet to tap on
the outboard end of the drive shaft if necessary
3. Install drive shaft into the front bearing carrier.
4. Install the upper and lower ball joint ends into the
front bearing carrier.
5. Install NEW pinch bolts and nuts. Torque to
specification.
TORQUE
Ball Joint Pinch Bolts:
42 lb-ft (57 Nm)
6. Apply Anti-Seize to drive shaft axle splines.
7. Install front wheel hub assembly
r
, cone washer
t
,
and hand tighten the castle nut. Install washer with
domed side out.
NOTICE
Some models may feature two cone washers.
