DRIVE BELT INSTALLATION
IMPORTANT
Be sure to install belt in the same direction as it was
removed.

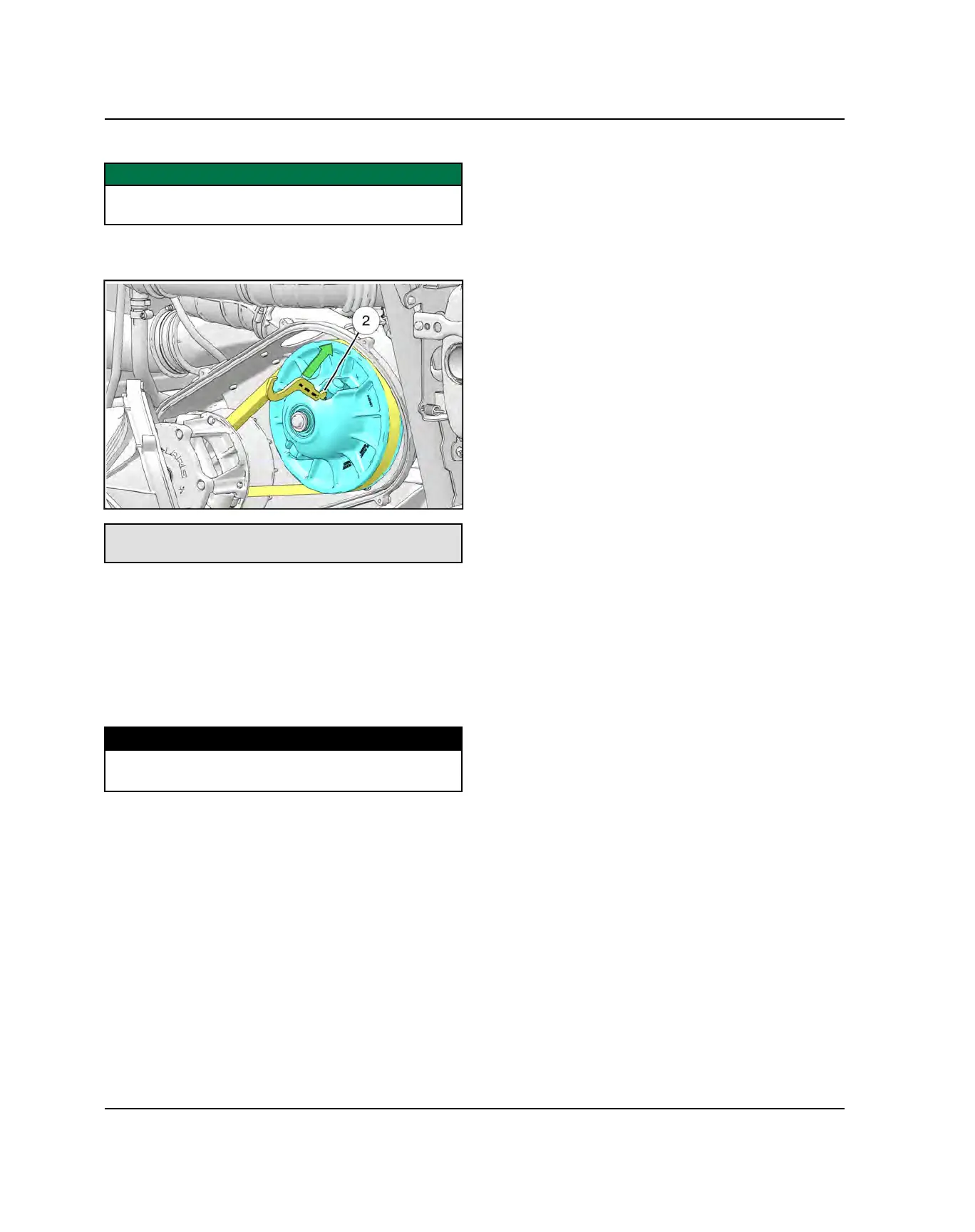

1. With the clutch spreader tool installed
w
, loop the belt
over the drive clutch and over the driven clutch.
Clutch Spreader Tool:
2878925
2. Rotate the driven clutch and walk the belt into the
clutch.
3. Remove the clutch spreader tool from driven clutch.
4. Rotate / spin the driven clutch and belt approximately
5-7 times to properly seat the belt in the driven clutch.
5. Install the outer clutch cover and eight screws.
Torque screws to specification.
TORQUE
Outer Clutch Cover Screws:
4.5 lb-ft (6 Nm)
