5
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
5.9

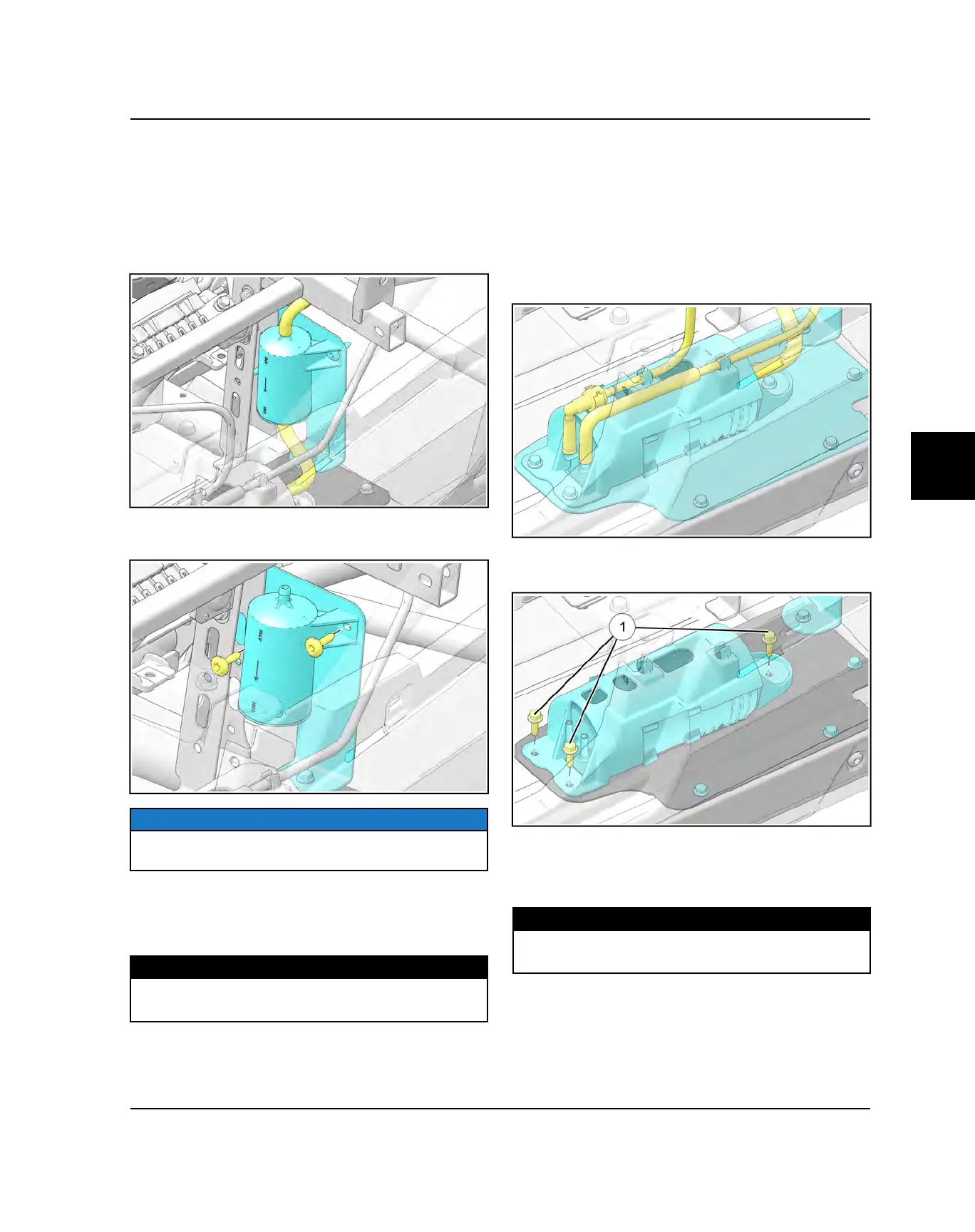

CARBON CANISTER FILTER
REPLACEMENT
1. Remove seats. See page 11.51.
2. Remove center council and rear lower close off panel
by referencing page 11.56
3. Remove lines connected to carbon canister filter.
4. Remove fasteners
q
securing carbon canister filter
to canister filter bracket.
NOTICE
Pay attention to the orientation of the carbon canister
filter while removing.
5. Replace carbon canister filter.
6. Installation is performed by reversing the removal
procedure.
TORQUE
Carbon Canister Filter Fasteners:
72 in-lbs (8 Nm)
7. Reinstall rear lower close off panel and center
council. Reference page 11.63
8. Reinstall seats. See page 11.76.
CARBON CANISTER REPLACEMENT
1. Remove seats. See page 11.51.
2. Remove center council and rear lower close off panel
by referencing page 11.56
3. Remove lines connected to carbon canister.
4. Remove three fasteners
q
securing carbon canister
to carbon canister mounting bracket.
5. Replace carbon canister.
6. Installation is performed by reversing the removal
procedure.
TORQUE
Carbon Canister Fasteners:
72 in-lbs (8 Nm)
7. Reinstall rear lower close off panel and center
council. Reference page 11.63
8. Reinstall seats. See page 11.76.
FUEL SYSTEM
