STEERING RACK INSTALLATION
1. Install the steering rack from the LH side of the
vehicle. Rotate the steering rack as necessary.
2. Install the fasteners that hold the steering rack
gearbox to the vehicle. Torque fasteners to
specification.
TORQUE
Steering Rack Fasteners:
16 lb-ft (20 Nm)
3. Install the lower steering shaft to the steering rack
gearbox. Refer to “Steering Shaft Installation -
Lower” page 9.21 procedure.

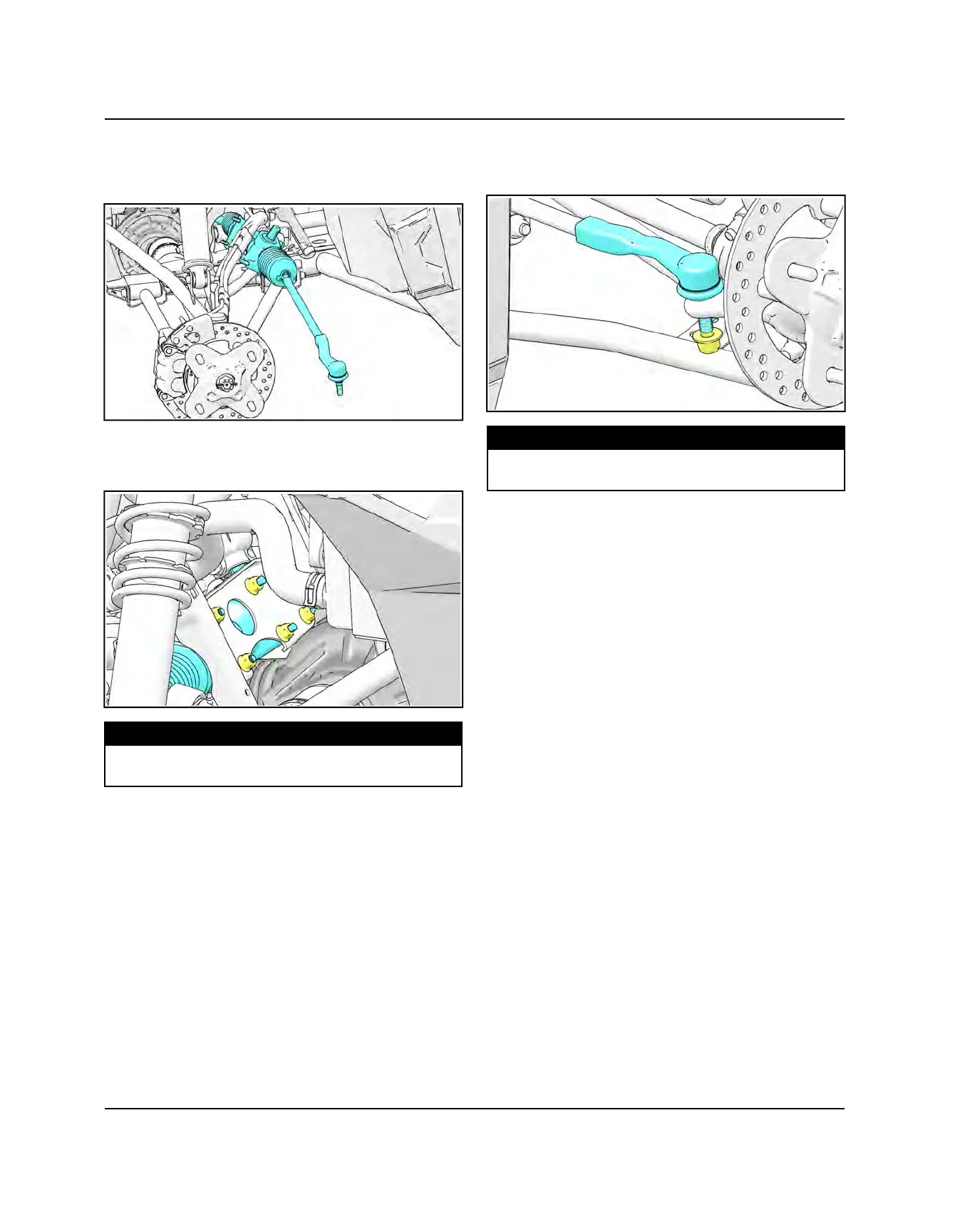

4. Install the fasteners securing the tie rods end to the
front bearing carriers. Torque fasteners to
specification.
TORQUE
Tie Rod Jam Nut:
15 lb-ft (20 Nm)
5. Verify front wheel alignment. Refer to “Wheel Toe
Alignment Inspection” page 2.44 procedure.
6. Install the wheel nuts and wheels from the vehicle.
Refer to “Wheel Installation” page procedure.
