9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
7.27
BEVEL DIFFERENTIAL

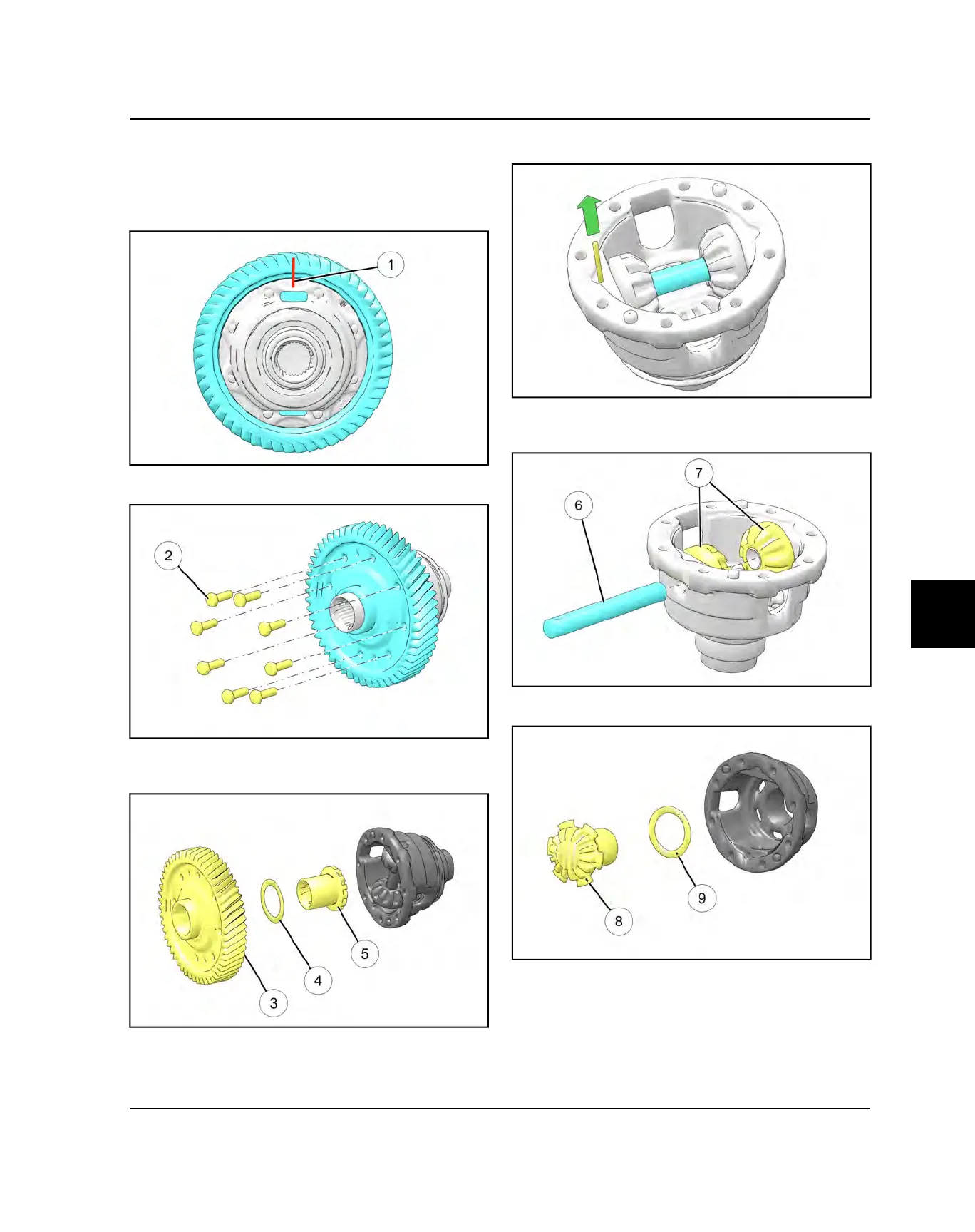

BEVEL DIFFERENTIAL DISASSEMBLY
1. Use a scribe or marker to mark the differential carrier
and ring gear
q
prior to disassembly.
2. Remove eight fasteners
w
retaining the ring gear.
3. Remove ring gear
e
, thrust washer
r
, and output
gear
t
.
4. Remove dowel pin from the differential pin.
5. Slide the differential pin
y
out of the carrier and
remove the pinion gears
u
.
6. Remove output gear
i
and Thrust washer
o
.
