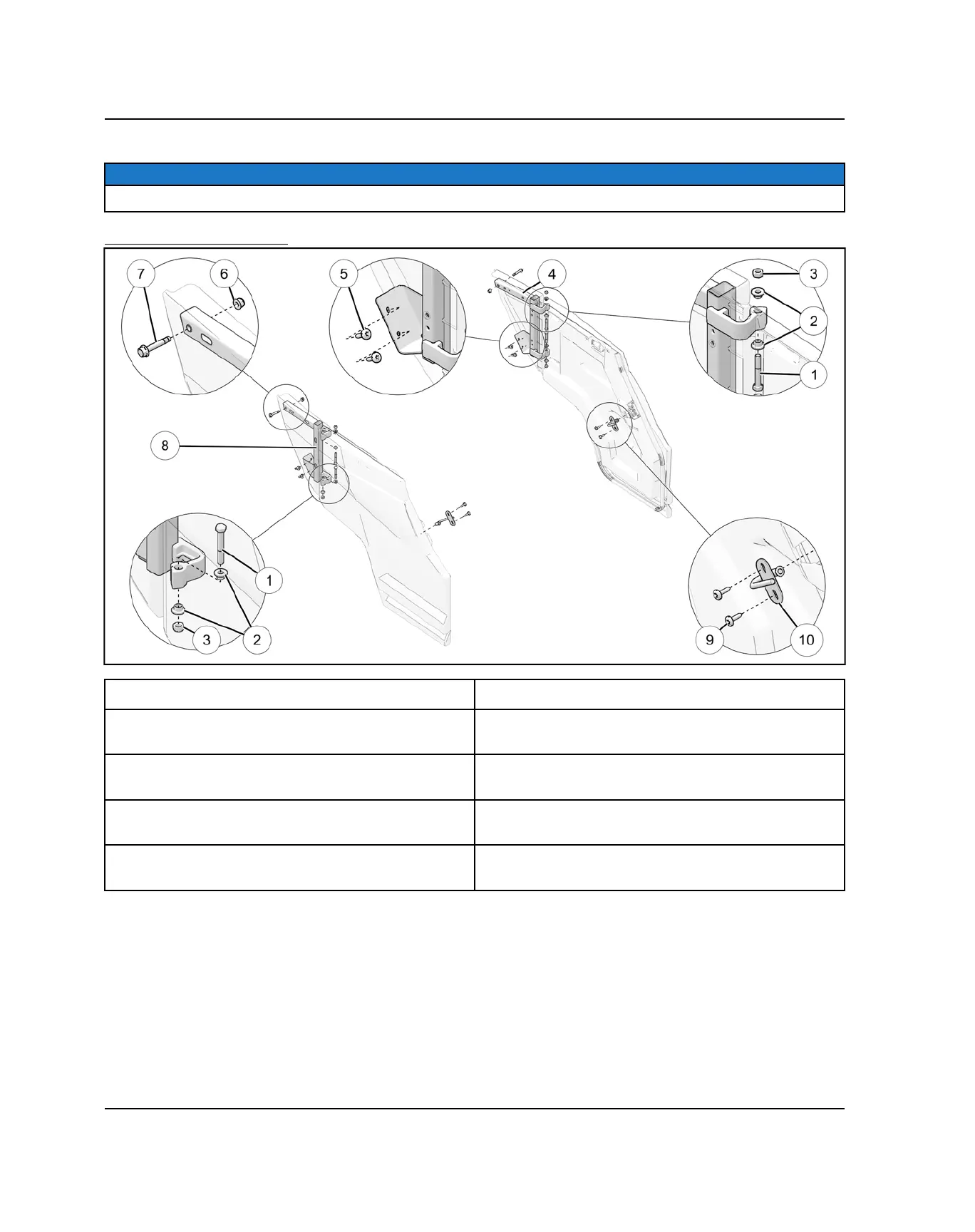

DOOR ASSEMBLY VIEW - REAR
NOTICE
Rear doors are only applicable to GENERAL 4 models.
REAR DOOR MOUNTING
q
Door Hinge Pivot Fastener
y
Nut
w
Door Pivot Bushing
u
Upper Rear Bolster Fasteners
17 lb-ft (23 Nm)
e
Nut
8 lb-ft (11 Nm)
i
RH Rear Bolster
r
LH Rear Bolster
o
Striker Mount Fasteners
5 lb-ft (7 Nm)
t
Lower Rear Bolster Fasteners
5 lb-ft (7 Nm)
a
Rear Striker
