Polaris General XP 2021

11.20
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

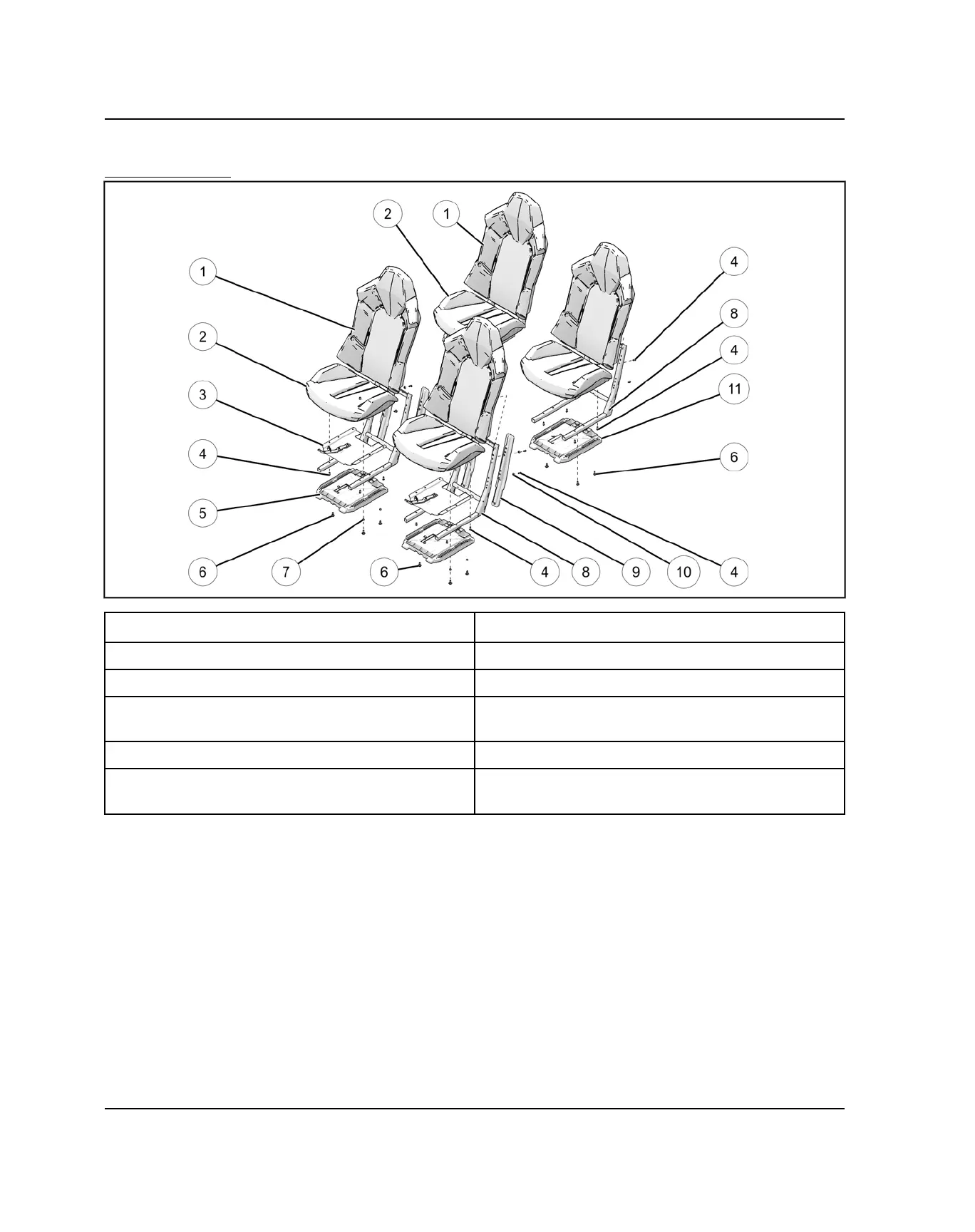

SEAT ASSEMBLY VIEW - GENERAL 4
SEAT ASSEMBLY
q
Seat Back Asm.
u
Tube Spacer
w
Seat Bottom Asm.
i
Seat Frame
e
Seat Slider Asm.
o
Seat Base Pad
r
Seat Back / Bottom Mounting Fasteners
6 ft-lbs (8 Nm)
a
Sleeve
t
Seat Slider Base Asm.
s
Seat Base Asm.
y
Seat Base Mounting Fasteners
6 ft-lbs (8 Nm)
BODY / FRAME
