9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
12.67

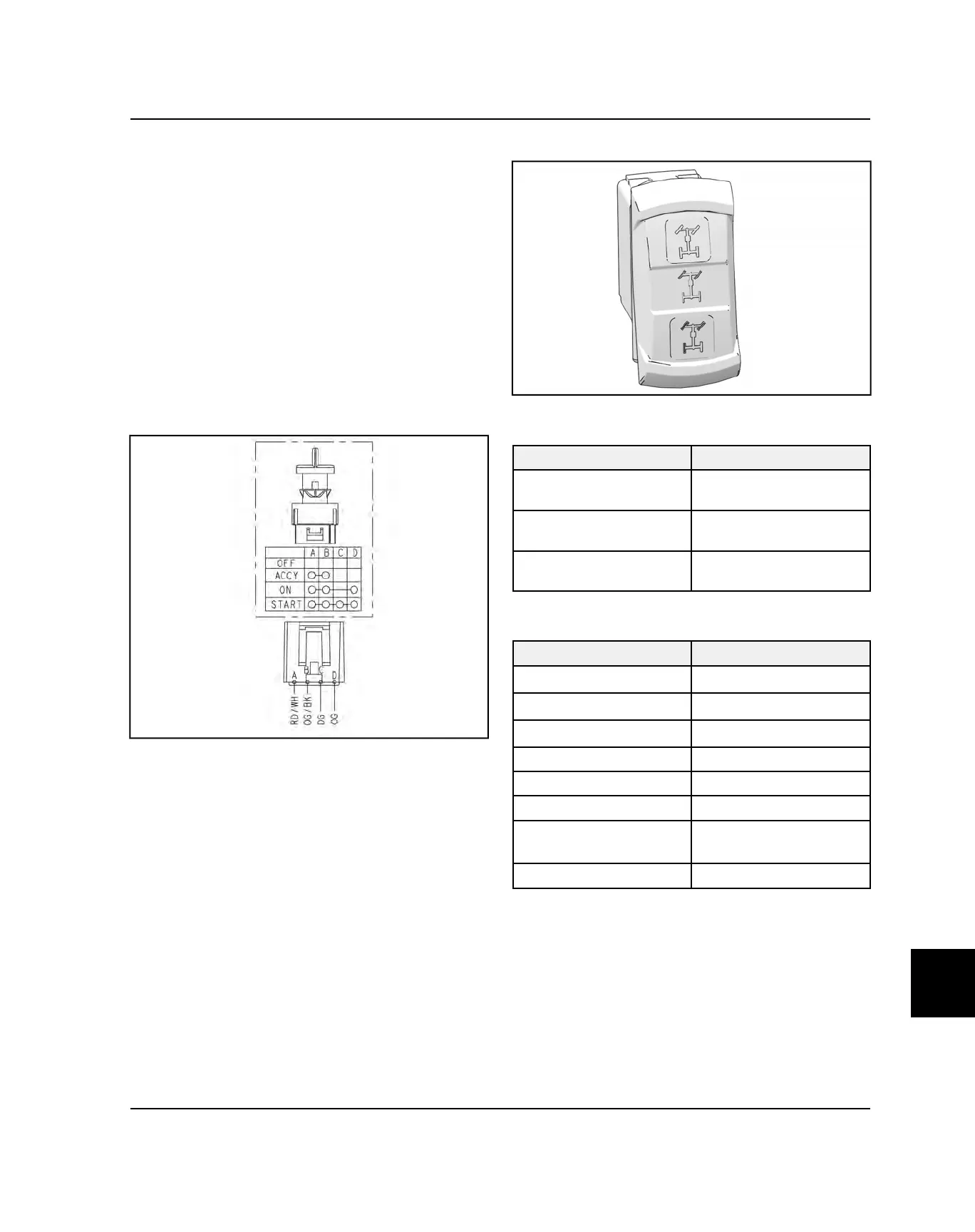

IGNITION / KEY SWITCH
1. Disconnect the key switch harness by depressing the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 4 sets of outputs (OFF / ACCY / ON
/ START). If any of the tests fail, replace ignition
switch assembly.
• In the OFF position, there should be no continuity
between any of the pins.
• Turn the key to ACCY position. There should be
contunity between switch pins A and B.
• Turn the key to ON position. There should be
continuity between switch pins A, B and D.
• Turn the key to START position. There should be
continuity between all the pins on the switch.
AWD / 2WD / TURF SWITCH
PIN CONTINUITY
SWITCH POSITION CONTINUITY BETWEEN
POS 1
ON
Pins 2 and 3
POS 2
OFF
—
POS 3
ON
Pins 1 and 2
SWITCH FUNCTION
PIN FUNCTION
1
Turf Request Input
2
Ground, AWD Switch
3
AWD Request Input
4
—
5
—
6
—
7
Key Switch B+, AWD
Switch Light
8
—
CHASSIS / BODY ELECTRICAL
