11.6
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

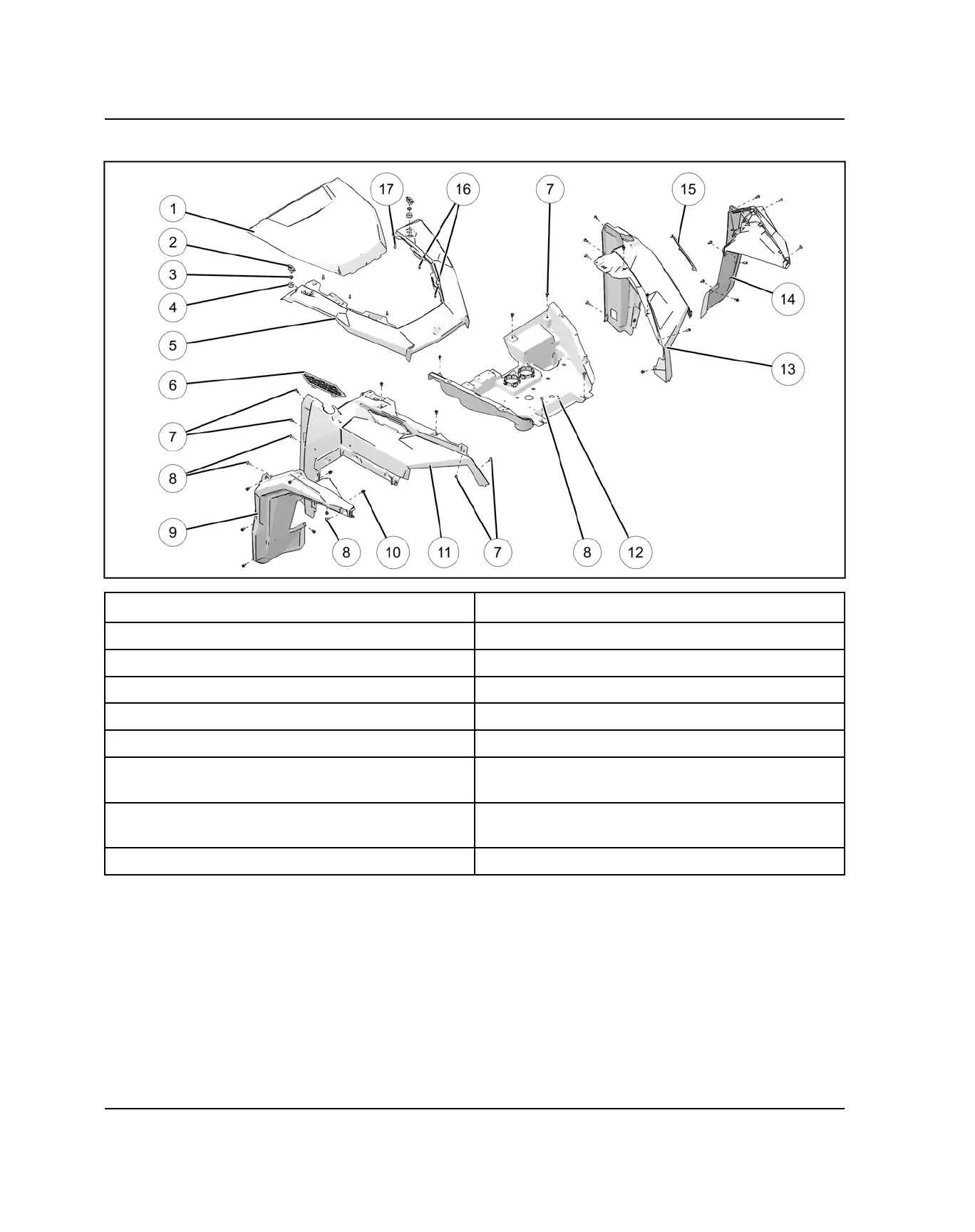

HOOD & FRONT FENDER ASSEMBLY VIEW - GENERAL XP / GENERAL XP 4
q
Inner Hood
a
Trim Clip
w
1/4 Turn Latch
s
RH Front Fender
e
Washer
d
Hood Liner
r
Latch Grommet
f
LH Front Fender
t
Outer Hood
g
LH Fender Flair
y
RH Hood Vent
h
LH Hood Vent
u
Plastic Push Rivet
j
Front Hood Fasteners
10 in-lbs (1.1 Nm)
i
Body Fasteners
3.5 lb-ft (4.7 Nm)
k
Rear Hood Fasteners
22 in-lbs (2.5 Nm)
o
RH Fender Flair
