9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

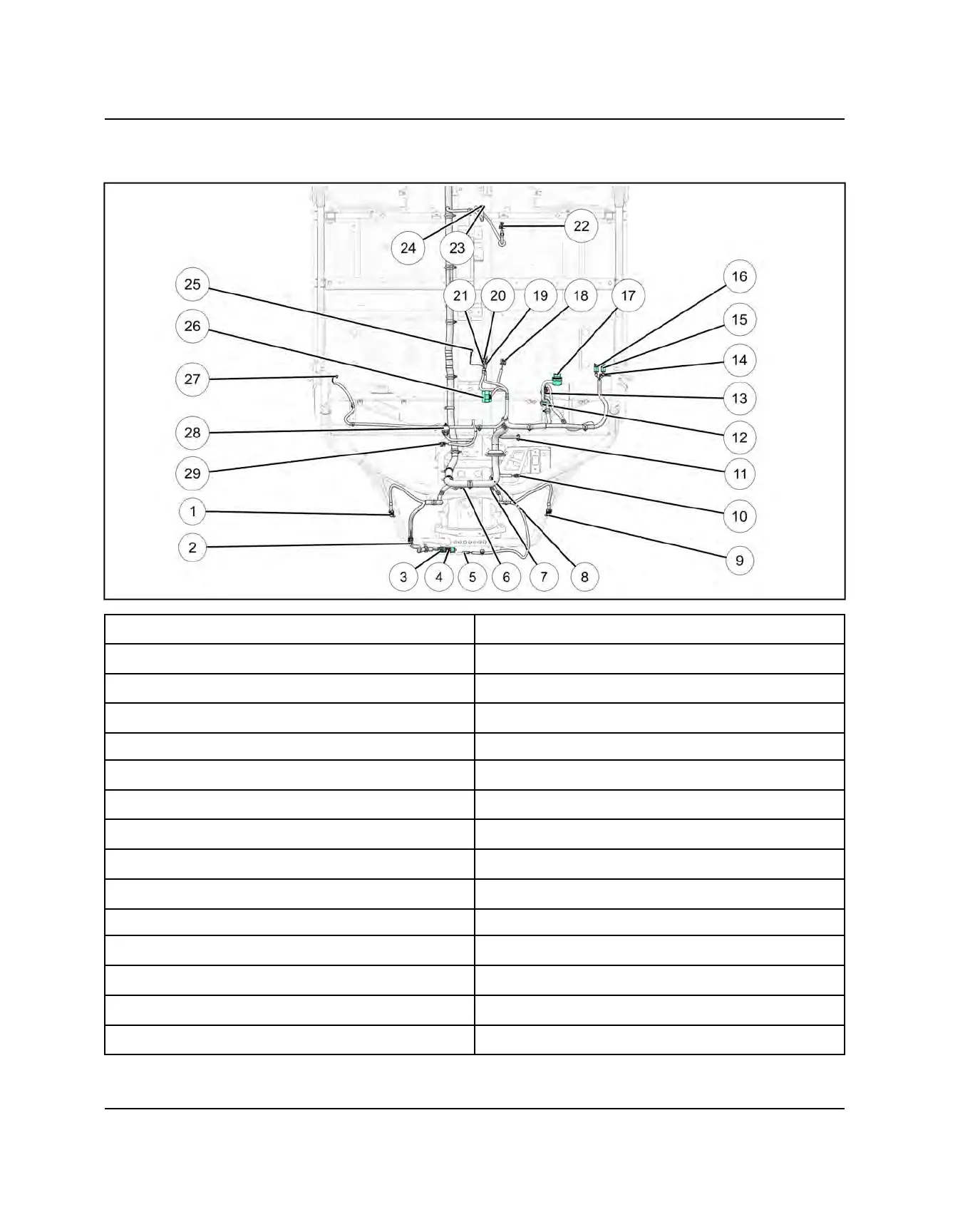

HARNESS COMPONENT LOCATIONS - 4 SEAT
FRONT VIEW
q
RH Headlight
j
AWD/2WD/TURF Switch
w
Ambient Air Temp
k
Speedometer
e
Voltage Regulator AC Input
l
Key Switch
r
Voltage Regulator DC Out
1(
12V Receptacle HI (Dash)
t
Video Front
2)
Winch Switch
y
Winch Contactor
2!
12V Receptacle LO (Dash)
u
Engine Coolant Fan
2@
Seatbelt Switch
i
AWD Coil
2#
12V Receptacle HI (Console)
o
LH Headlight
2$
12V Receptacle LO (Console)
a
Brake Pressure Switch
2%
LED Light #1
s
Pedal Position Sensor
2^
Infotainment
d
EPS Signal
2&
LED Light #3
f
EPS Power
2*
Diagnostic
g
LED Light #2
2(
Pulse Bar
h
Headlight Switch
CHASSIS / BODY ELECTRICAL
