10.64
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

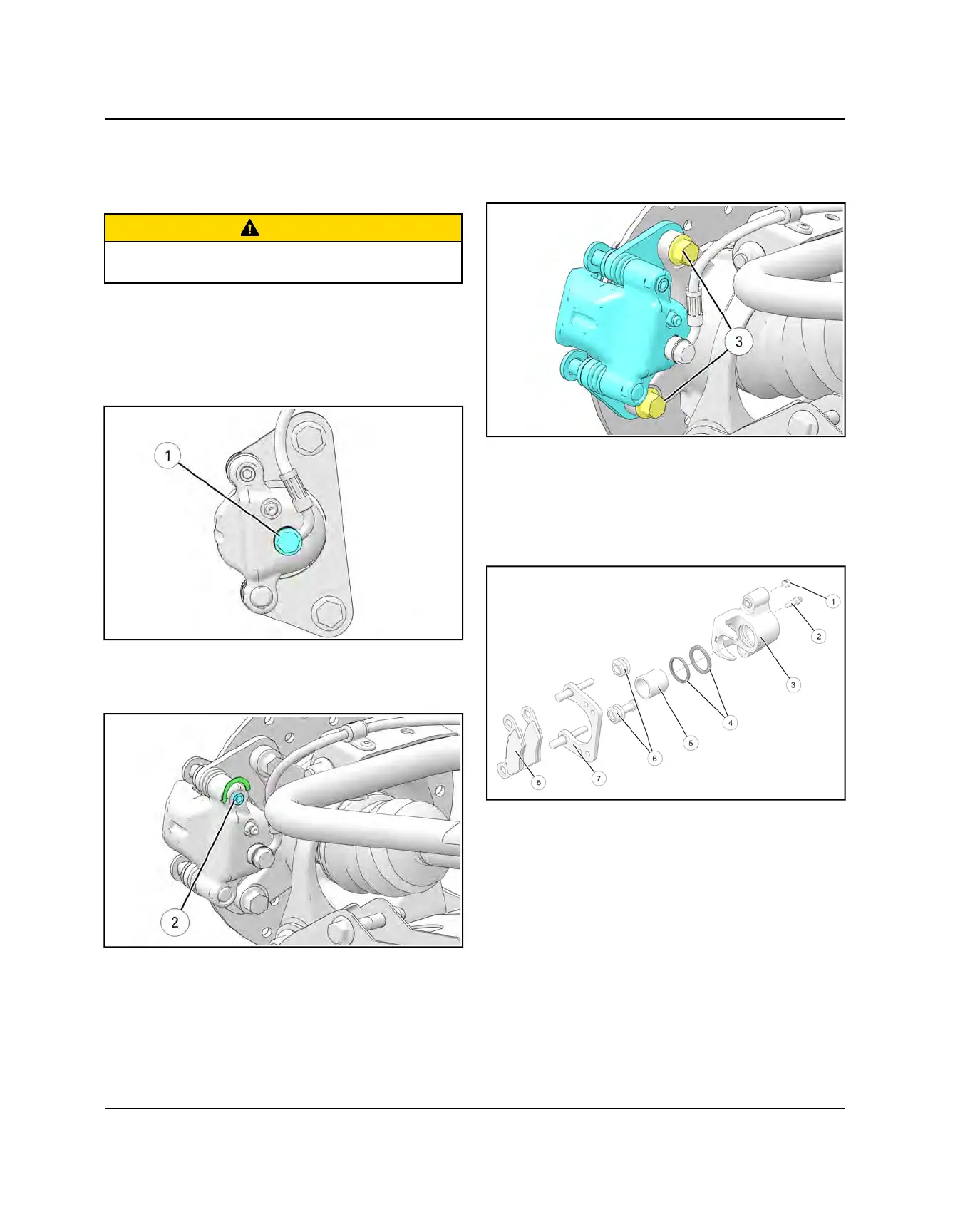

REAR CALIPER SERVICE - GENERAL XP
REAR CALIPER REMOVAL
1. Elevate and safely support the rear of the vehicle.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur.
2. Remove the four wheel nuts and the rear wheel.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch brake
fluid when removing the brake line. Use a wrench to
remove the brake line banjo bolt
q
.
5. If necessary, loosen brake pad adjustment set screw
w
2-3 turns to allow brake pad removal after the
caliper is removed.
6. After the fluid has drained into the container, remove
the two caliper mounting bolts
e
and brake caliper.
7. Clean the brake disc, caliper body and caliper pistons
with brake cleaner or alcohol.
REAR CALIPER DISASSEMBLY
1. Remove brake pad adjustment set screw
q
.
2. Push upper pad retainer pin inward and slip brake
pads
i
past the edge and remove from the caliper.
3. Remove mount bracket
u
and dust boots
y
.
BRAKE SYSTEM
