Polaris General XP 2021

13
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
13.31

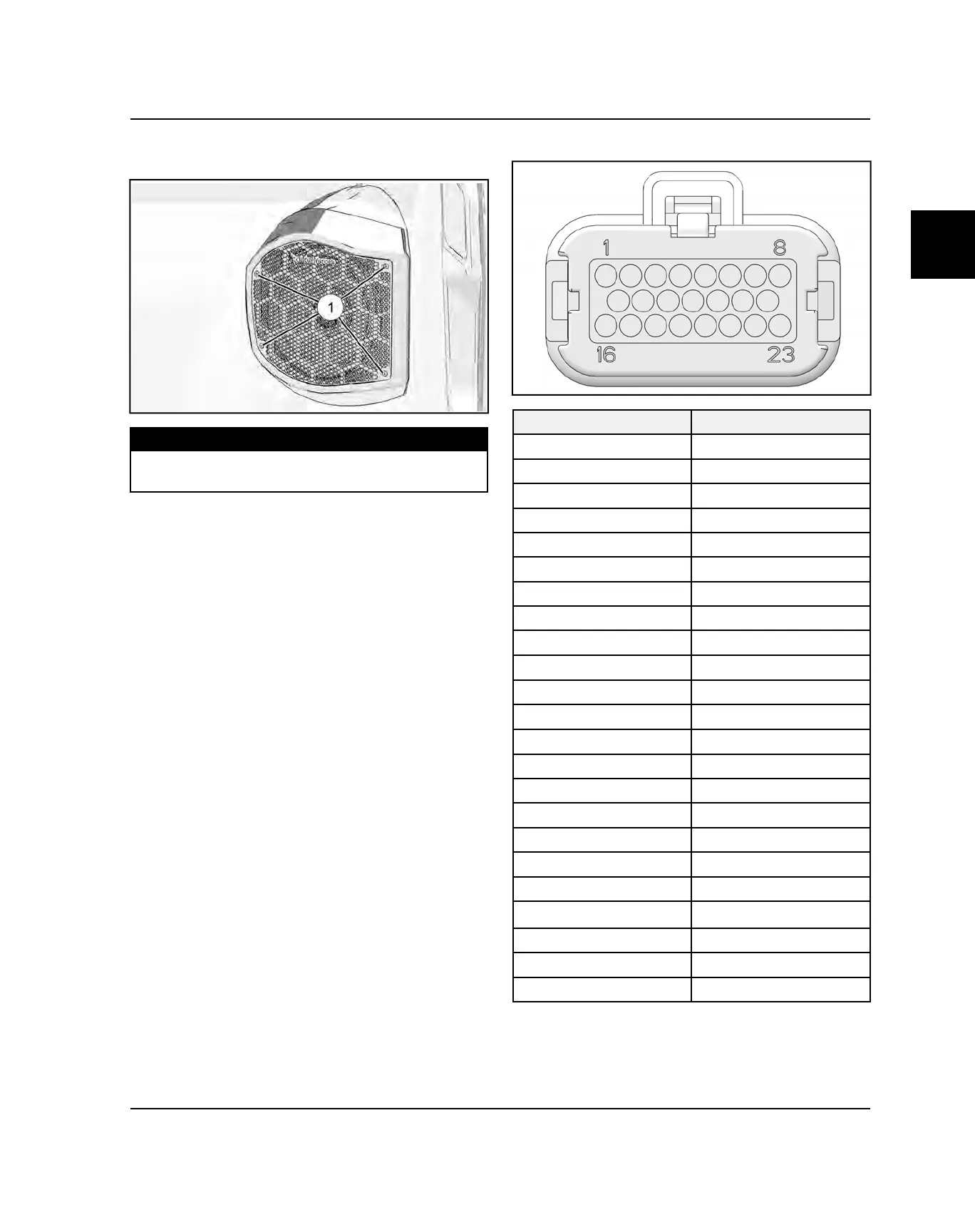

4. Install the four speaker cover fasteners
q
. Torque
fasteners to specification.
TORQUE
Speaker Cover Fasteners:
7 in-lbs (.75 Nm)
BASE AUDIO DISPLAY PINOUT
PIN FUNCTION
1
—
2
—
3 LEFT - FRONT
4 LEFT + FRONT
5
—
6
—
7
—
8
—
9 USB +5V
10 USB DATA -
11 USB DATA +
12 USB GROUND
13
—
14
—
15
—
16
—
17
—
18 RIGHT - FRONT
19 RIGHT + FRONT
20
GROUND, PMX
21 SW B+
22
—
23
—
FACTORY-INSTALLED OPTIONS
