9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.35

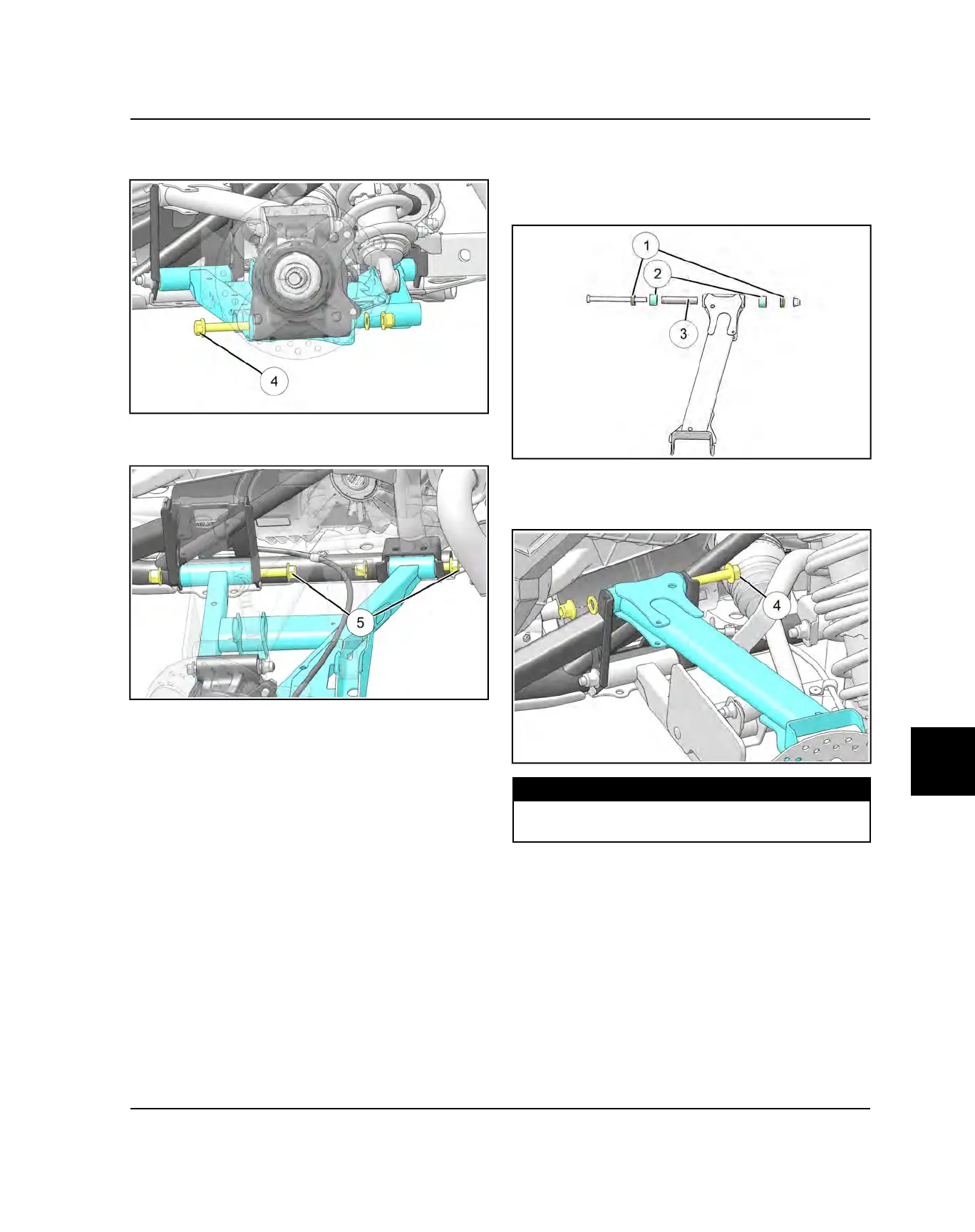

4. Remove the fastener
r
connecting the lower control
arm to the bearing carrier.
5. Remove the fasteners
t
connecting the lower control
arm to the chassis.
6. Examine control arm bushings and pivot tube.
Replace if worn. Discard hardware.
7. If not replacing the control arm, thoroughly clean the
control arm and pivot tube.
REAR CONTROL ARM INSTALLATION
UPPER CONTROL ARM
1. Insert NEW pivot caps
q
, control arm bushings
w
,
and pivot tube
e
into new control arm..
2. Install upper control arm assembly onto vehicle
frame. Install NEW fasteners
r
holding control arm
to vehicle. Torque fasteners to specification.
TORQUE
Rear Inner Control Arm Fasteners:
40 lb-ft (54 Nm) + 90°
