9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
6.5
ASSEMBLY VIEWS - PVT SYSTEM

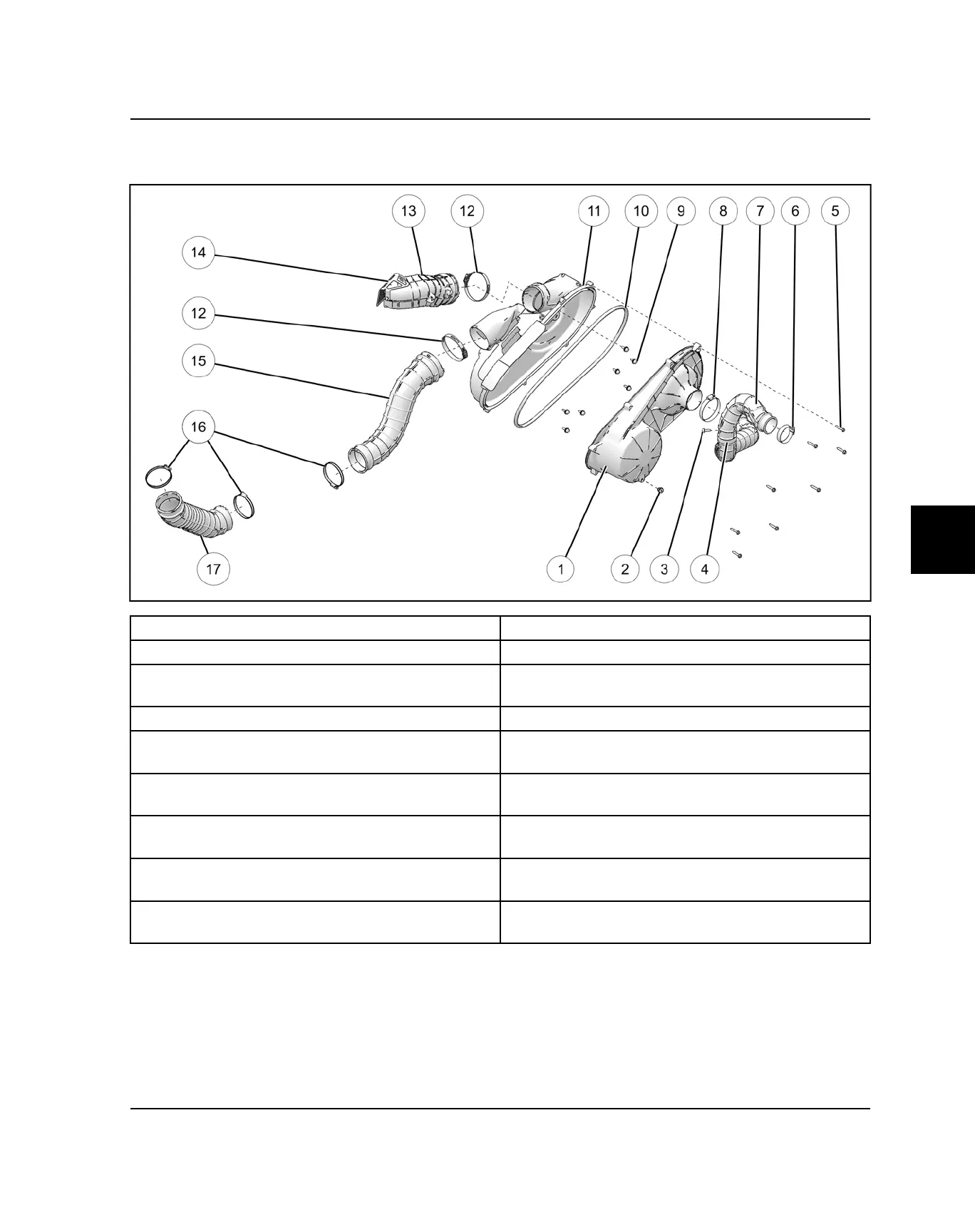

PVT COVERS / DUCT ASSEMBLY VIEW - GENERAL
q
Outer Clutch Cover
a
Inner Cover Seal
w
Clutch Cover Drain Screw
s
Inner Clutch Cover
e
Intake Hose Bracket Fastener
3.5 lb-ft (4.7 Nm)
d
Slotted Hose Clamp
35 in-lbs (8 Nm)
r
Intake Hose Bracket
f
Outlet Hose
t
Outer Clutch Cover Fasteners
4.5 lb-ft (6 Nm)
g
Belt Screen Bracket
y
Hose Clamp
35 in-lbs (8 Nm)
h
Inlet Hose
u
Intake Hose
j
Band Clamp
24 in-lbs (8 Nm)
i
Hose Clamp
35 in-lbs (8 Nm)
k
Intake Duct Hose
o
Inner Clutch Cover Fasteners
10 lb-ft (14 Nm)
PVT SYSTEM
