9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

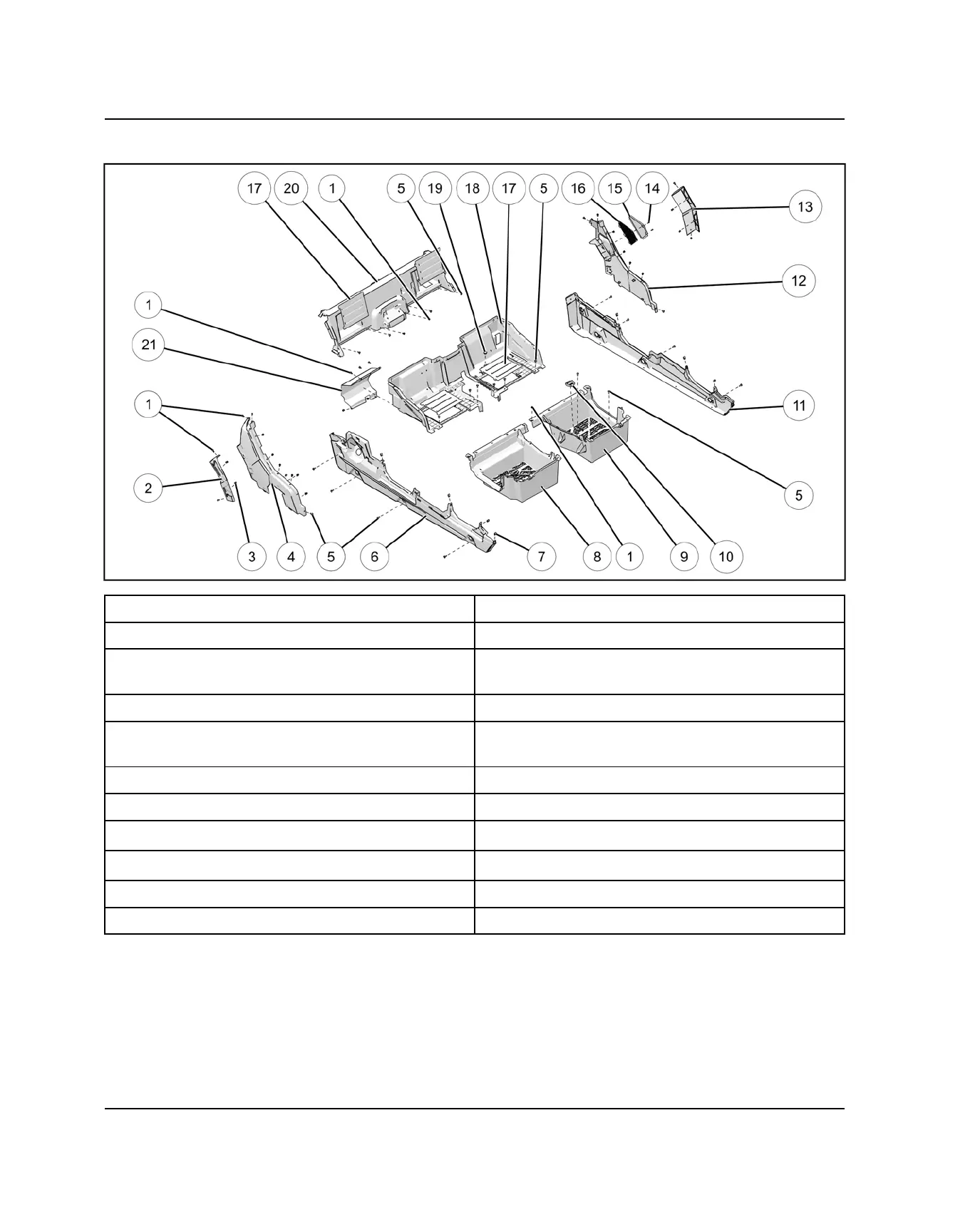

REAR CLOSEOFF, FENDERS, & FLOOR ASSEMBLY VIEW - GENERAL 4
q
Plastic Push Rivet
d
LH Rear Fender
w
RH Fender Flair
f
LH Fender Flair
e
Trim Clip
g
Rear Fender Intake Fastener
22 in-lbs (2.5 Nm)
r
RH Rear Fender
h
Clutch Intake Filter
t
Body Fastener
3.5 lb-ft (4.7 Nm)
j
Rear Fender Intake
y
RH Rocker Panel
k
Service Panel
u
U-Nut
l
Lower Rear Closeoff Panel
i
RH Rear Floor
1(
End Cap Plug
o
Floor Drain Plug
2)
Upper Rear Closeoff Panel
a
LH Rear Floor
2!
Fuel Tank Debris Shield
s
LH Rocker Panel
BODY / FRAME
