11
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
11.87

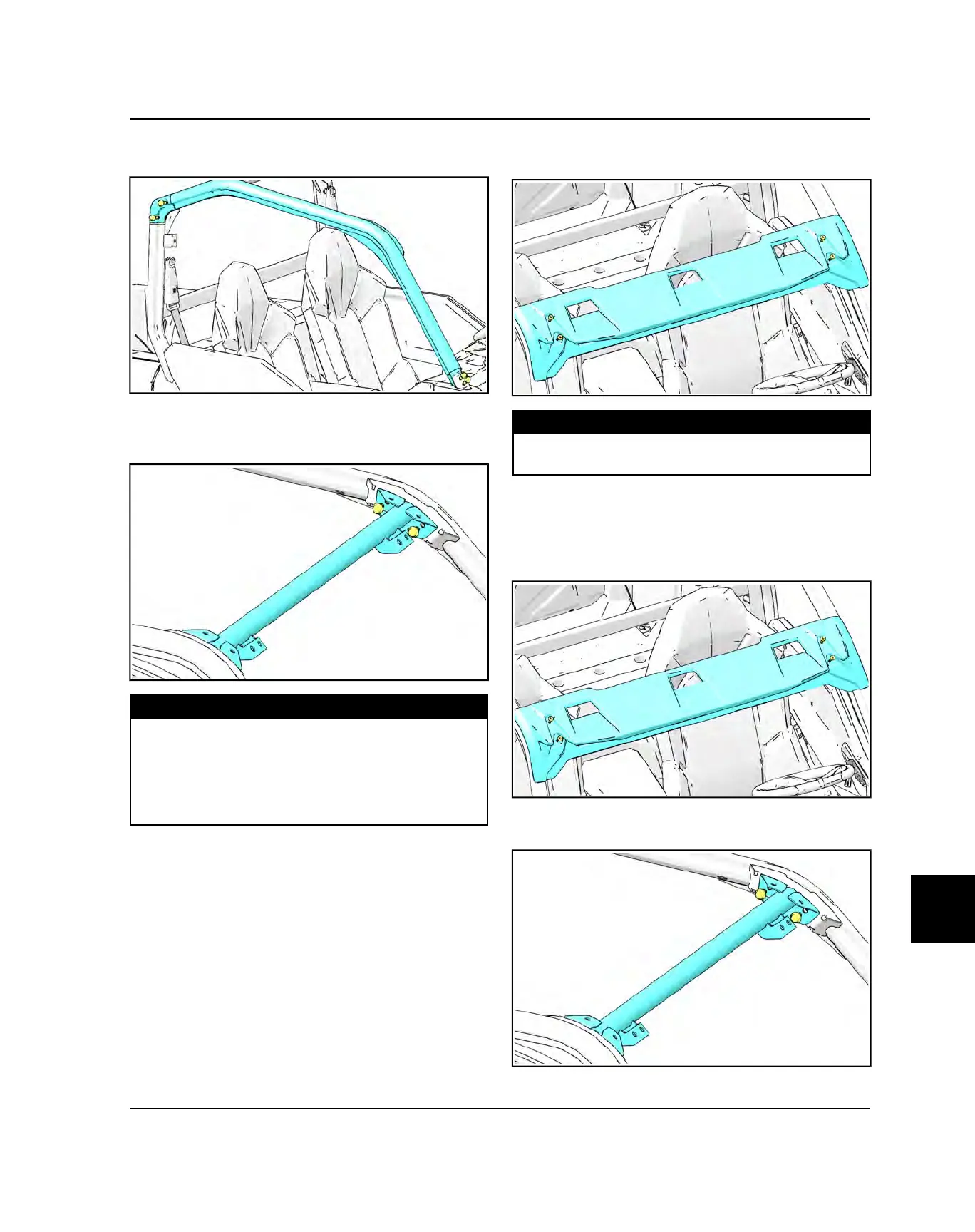

4. Loosely install the fasteners that hold the RH and LH
ROPS to the vehicle frame and rear ROPS.
5. Loosely install the fasteners that hold the front cross
to the RH and LH ROPS. Torque the ROPS fasteners
to specification in order of installation.
TORQUE
Rear ROPS Fasteners:
40 lb-ft (54 Nm)
Side ROPS Fasteners:
40 lb-ft (54 Nm)
Front Cross Fasteners:
40 lb-ft (54 Nm)
6. Install the fasteners that hold the visor panel to the
front cross. Torque the fasteners to specification.
TORQUE
Visor Panel Fasteners:
3.5 lb-ft (4.7 Nm)
ROPS REMOVAL - GENERAL 4
1. Remove the fasteners that hold the visor panel to the
front cross.
2. Remove the fasteners that hold the front cross to the
front RH and LH ROPS.
BODY / FRAME
