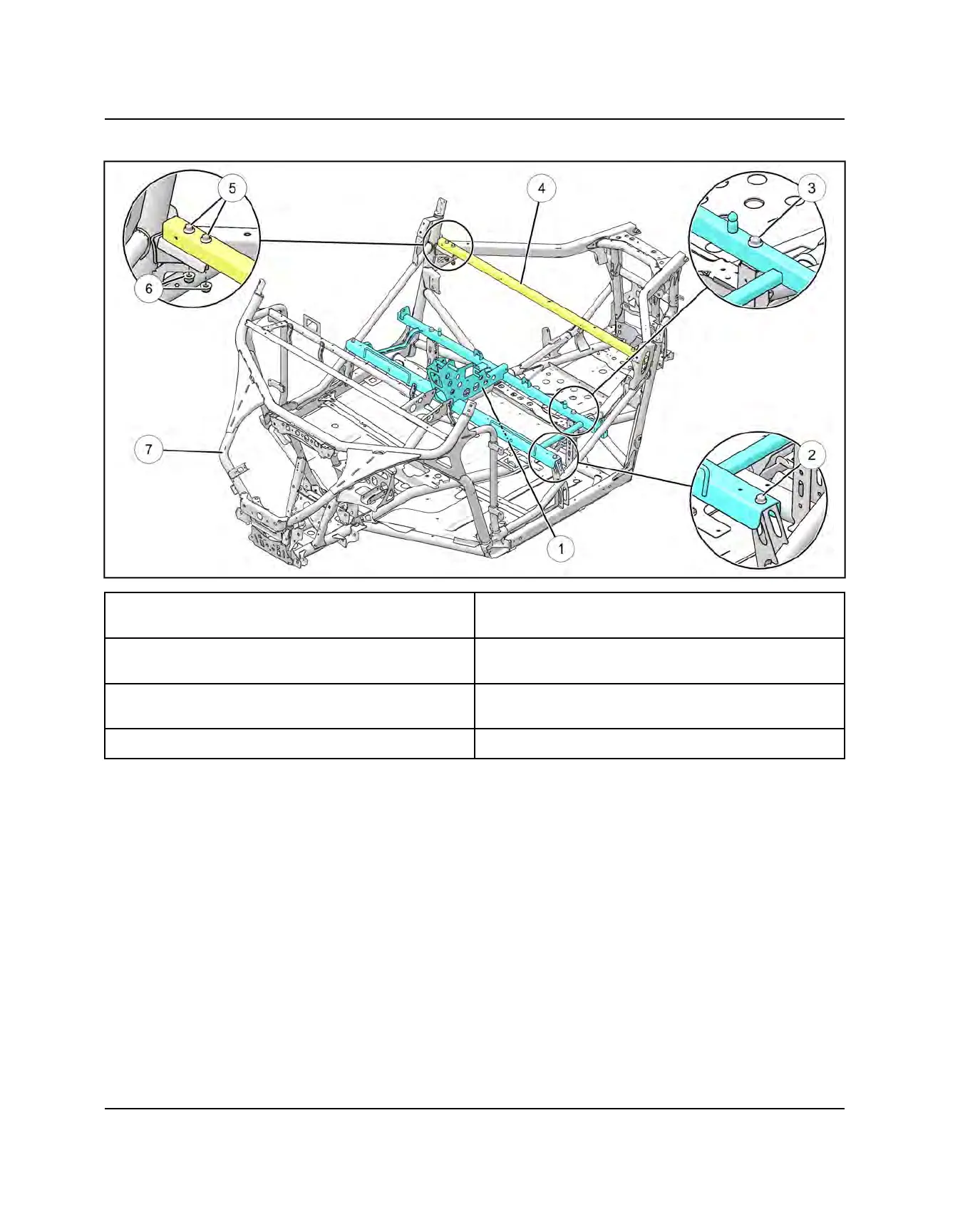

FRAME ASSEMBLY VIEW - GENERAL XP
q
Seat Base Frame
t
Top Frame Fasteners
22 ft-lbs (30 Nm)
w
Front Seat Base Frame M8 Fasteners
10 ft-lbs (14 Nm)
y
Nut
e
Front Seat Base Frame M10 Fasteners
30 ft-lbs (41 Nm)
u
Main Frame
r
Top Frame
BODY / FRAME
