9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
12.63

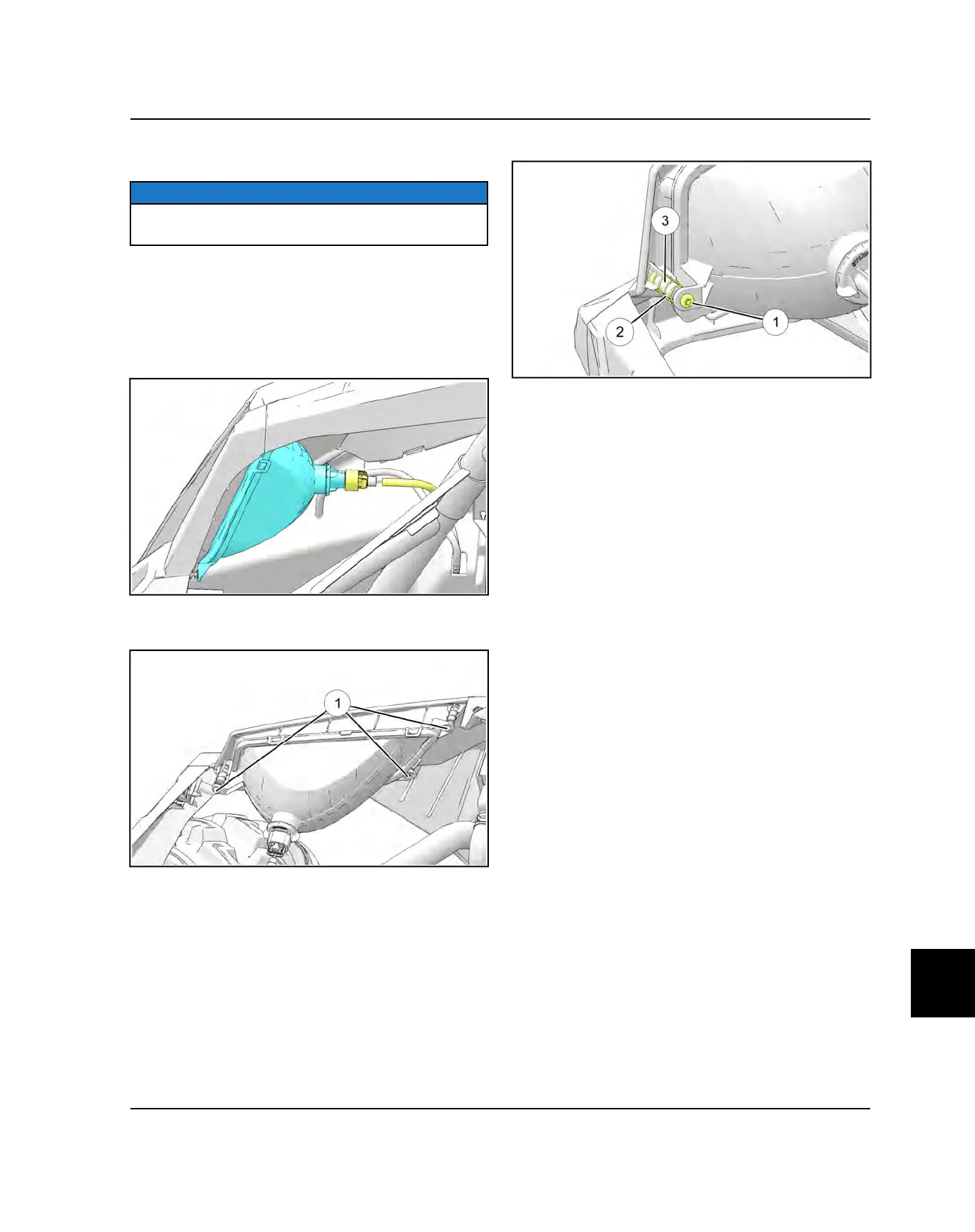

4. Install the new bulb into the housing and rotate it
clockwise 90° to lock it in place.
NOTICE
Make sure the tab on the bulb locates properly in the
housing.
5. Install the harness onto the new headlight bulb.
HEADLIGHT REMOVAL
1. Disconnect the harness from the bulb. Be sure to pull
on the connector, not on the wiring.
2. Remove the three headlight mounting screws
q
and
three adjustment preload springs .
3. Carefully lift and remove headlight assembly from the
bumper.
HEADLIGHT INSTALLATION
1. Install the headlight adjustment springs
w
onto the
front bumper mounting bosses.
2. Insert the three headlight mounting screws
q
into the
headlight assembly mounting holes.
3. Maneuver the headlight assembly into position. Be
sure all three headlight springs and mounting screws
are properly aligned with mounting bosses
e
on the
front bumper.
4. Fully tighten all three headlight screws until the
headlight assembly is fully seated. Back headlight
mounting screws off 1/8-1/4 in (2-3 turns).
5. Connect headlight electrical connector to the
headlight assembly.
6. Adjust headlight position. Refer to Headlight
Adjustment page 12.62 procedure.
