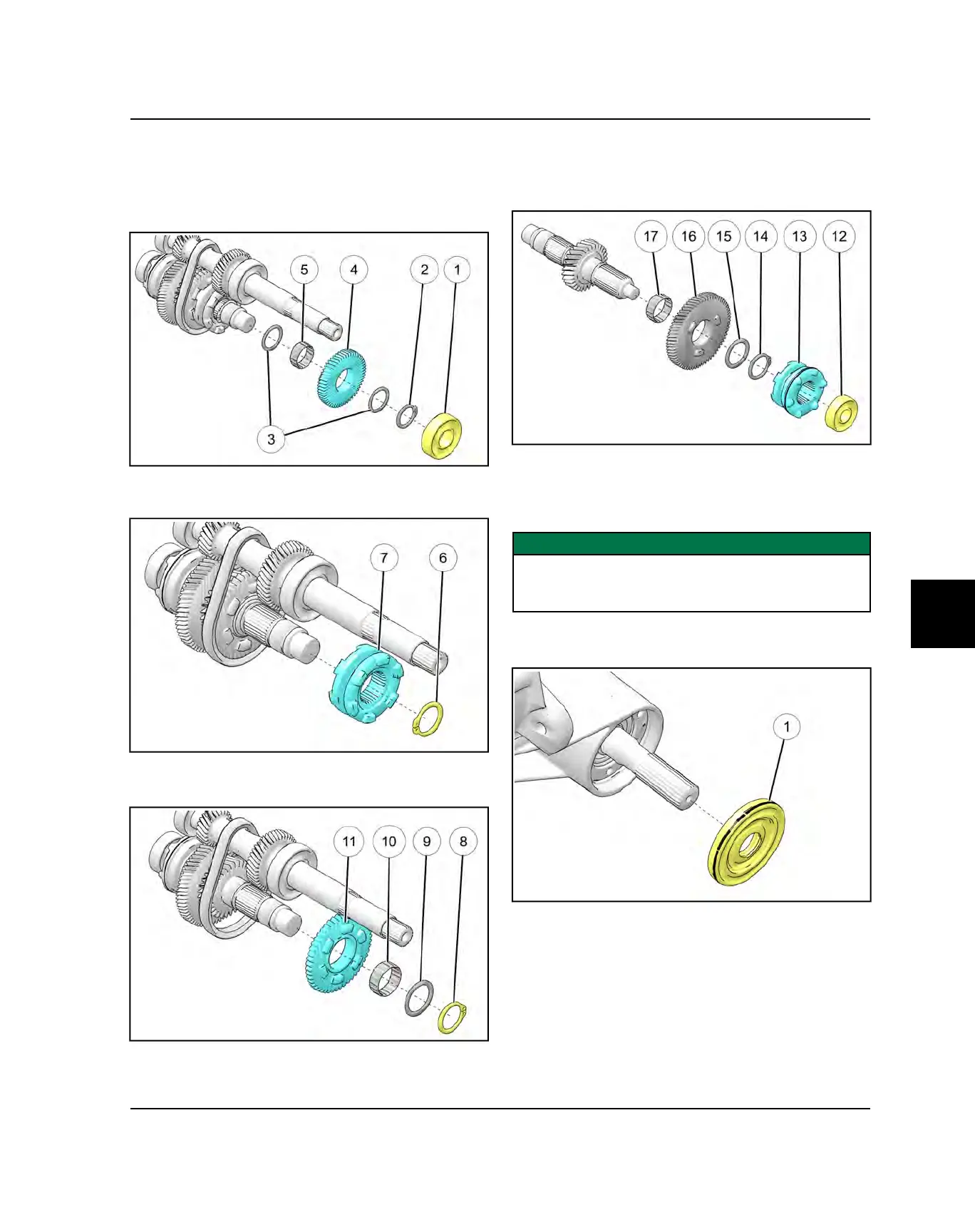

GEAR CLUSTER DISASSEMBLY
1. Remove the bearing
q
from the reverse shaft using a
bearing puller. Remove the retaining ring
w
and slide
the washers
e
, gear
r
, and needle bearing
t
off the
reverse shaft.
2. Remove the retaining ring
y
and engagement dog
u
from the reverse shaft.
3. Remove the retaining ring
i
, washer
o
, needle
bearing
a
, and sprocket
s
from the reverse shaft.
4. Tilt the two shafts towards each other and remove the
silent chain from the two shafts.
5. If necessary, disassemble the other end of the
reverse shaft. Remove the bearing
d
, engagement
dog
f
, retaining ring
g
, washer
h
, gear
j
, and
needle bearing
k
from the reverse shaft.
SNORKEL SHAFT REMOVAL /
DISASSEMBLY
IMPORTANT
The pinion shaft must be removed prior to removing the
snorkel shaft assembly. Failure to remove pinion shaft
will result in damage to the snorkel shaft.
1. Extract the seal
q
from the snorkel shaft to access
the snorkel tube for removal.
