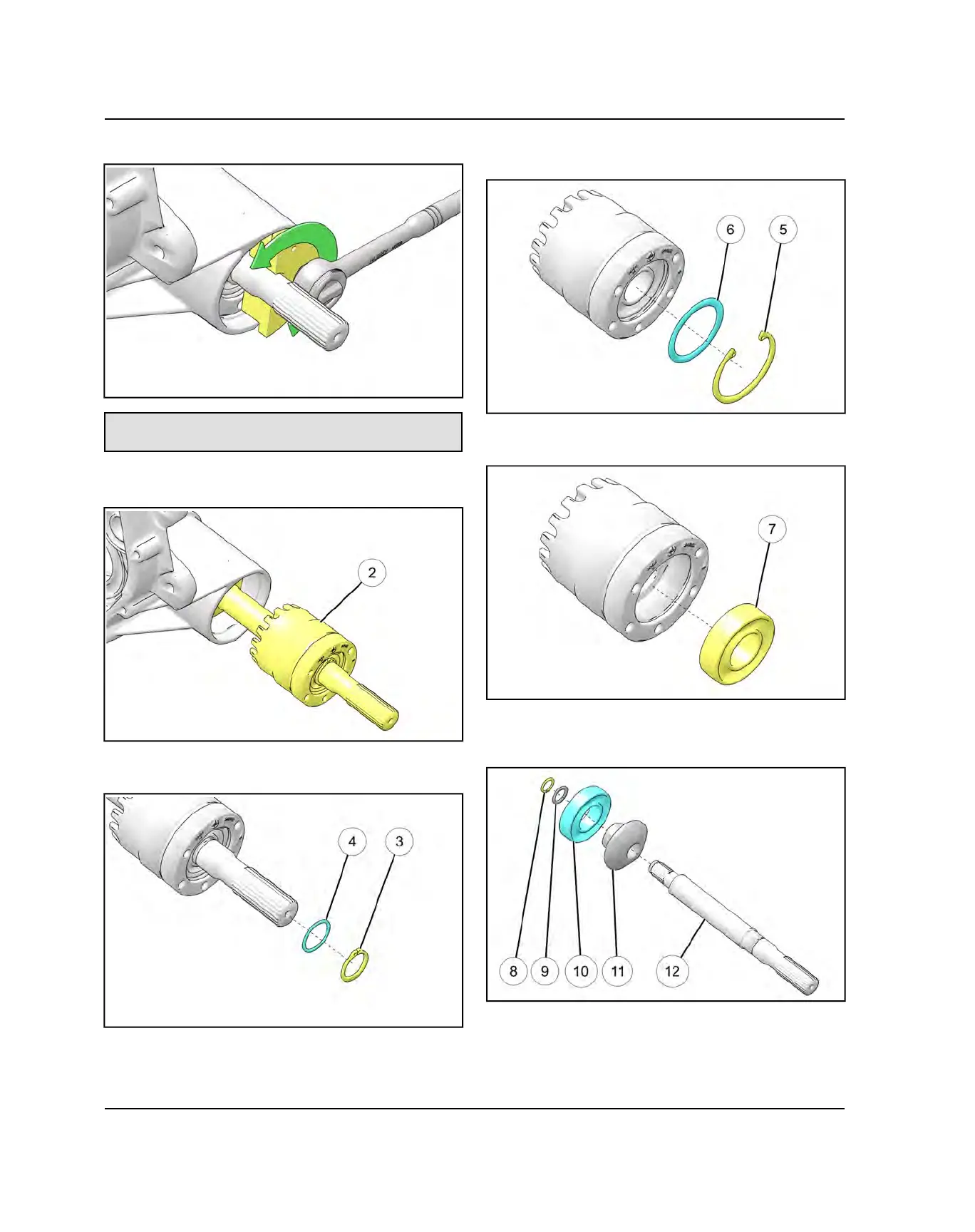

2. Using the Snorkel Tool, fully loosen the snorkel tube.
Snorkel Tool:
PA-50231
3. Remove the snorkel tube and shaft assembly
w
from
the transmission case.
4. Remove the snap ring
e
and shim
r
from the
snorkel shaft.
5. Use an arbor press to remove the snorkel tube from
the snorkel shaft.
6. Remove the snap ring
t
and shim
y
retaining the
bearing in the snorkel tube.
7. Lightly tap on the bearing
u
from the opposite side to
remove it from the snorkel tube.
8. Remove the retaining ring
i
to remove the remaining
washer
o
, bearing
a
and gear
s
from the snorkel
shaft
d
.
TRANSMISSION
