12.6
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
CHASSIS HARNESS

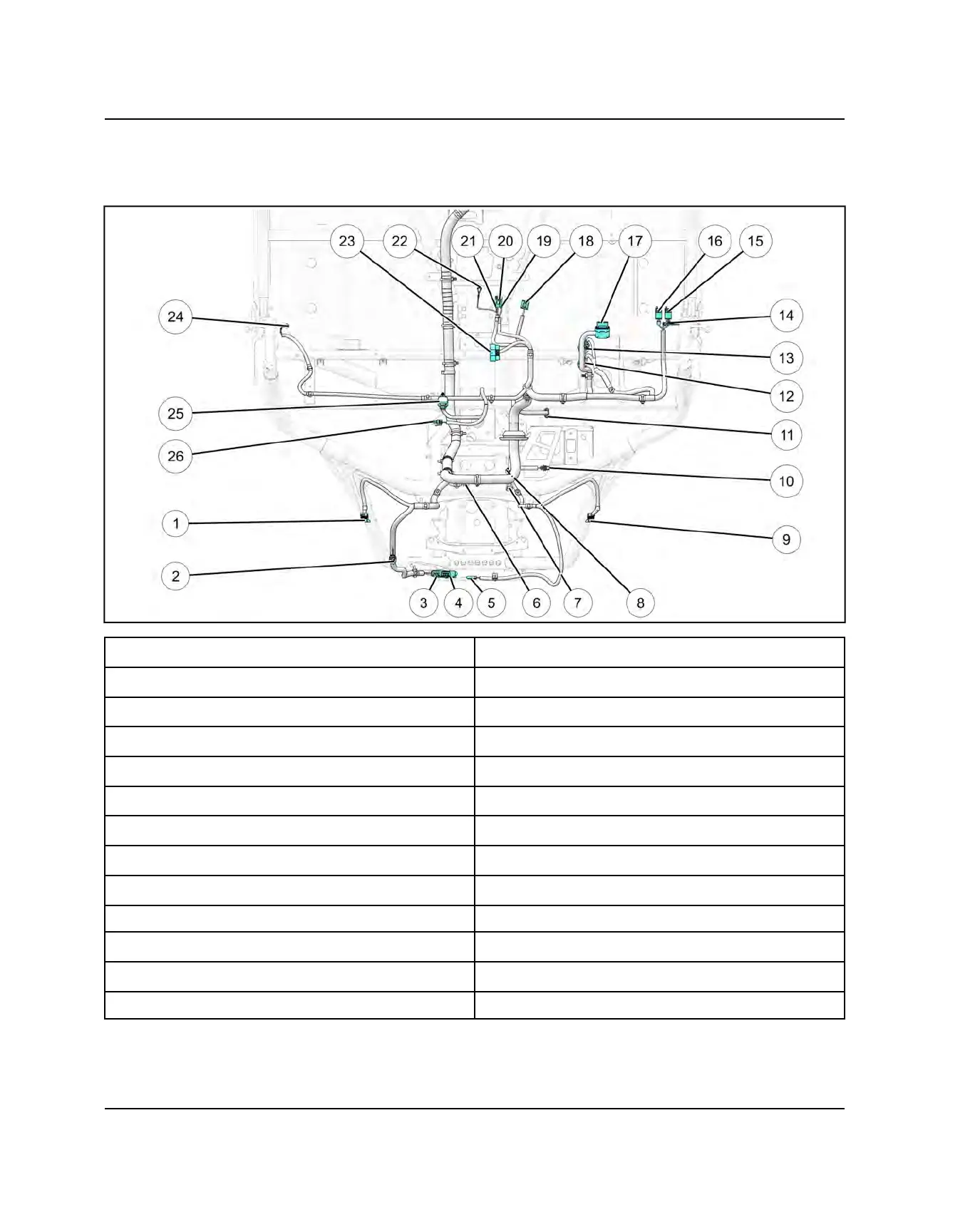

HARNESS COMPONENT LOCATIONS - 2 SEAT
FRONT VIEW
q
RH Headlight
g
LED Light #2
w
Ambient Air Temp
h
Headlight Switch
e
Voltage Regulator AC Input
j
AWD/2WD/TURF Switch
r
Voltage Regulator DC Out
k
Speedometer
t
Video Front
l
Key Switch
y
Winch Contactor
1(
12V Receptacle HI (Dash)
u
Engine Coolant Fan
2)
Winch Switch
i
AWD Coil
2!
12V Receptacle LO (Dash)
o
LH Headlight
2@
LED Light #1
a
Brake Pressure Switch
2#
Infotainment
s
Pedal Position Sensor
2$
LED Light #3
d
EPS Signal
2%
Diagnostic
f
EPS Power
2^
Pulse Bar
