U-JOINT ASSEMBLY
NOTICE
Before servicing the prop shaft U-joint, be sure the joint
is clean to ensure no debris damages the yoke.

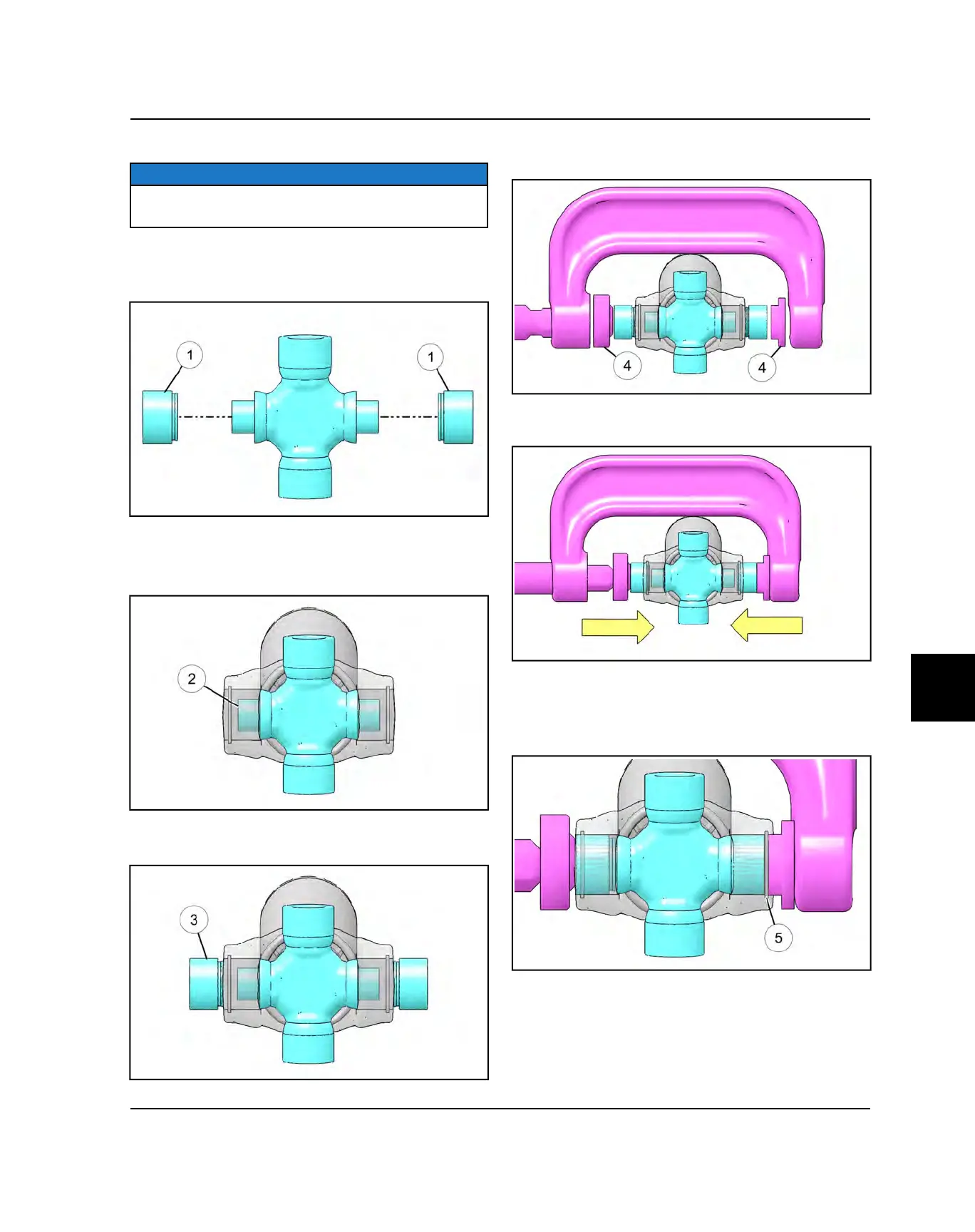

1. With NEW U-joint, remove two opposing caps
q
from
end of joint to go into yoke and secure other two so
they do not fall off during installation.
2. Ensure yoke bores and ring grooves are clean before
installing new U-joint.
3. Place U-joint ends
w
without caps into yoke bores.
4. Place caps
e
into yoke bores and align with U-joint
ends by hand.
5. Place clamp and installer adapters
r
with smaller
OD than caps over each cap.
6. Tighten clamp to install caps simultaneously into yoke
bores.
7. Push U-joint side to side during clamping to seat into
caps properly.
8. Tighten clamp until both caps are flush with yoke and
one cap is past retaining ring groove
t
.
