9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
11.63

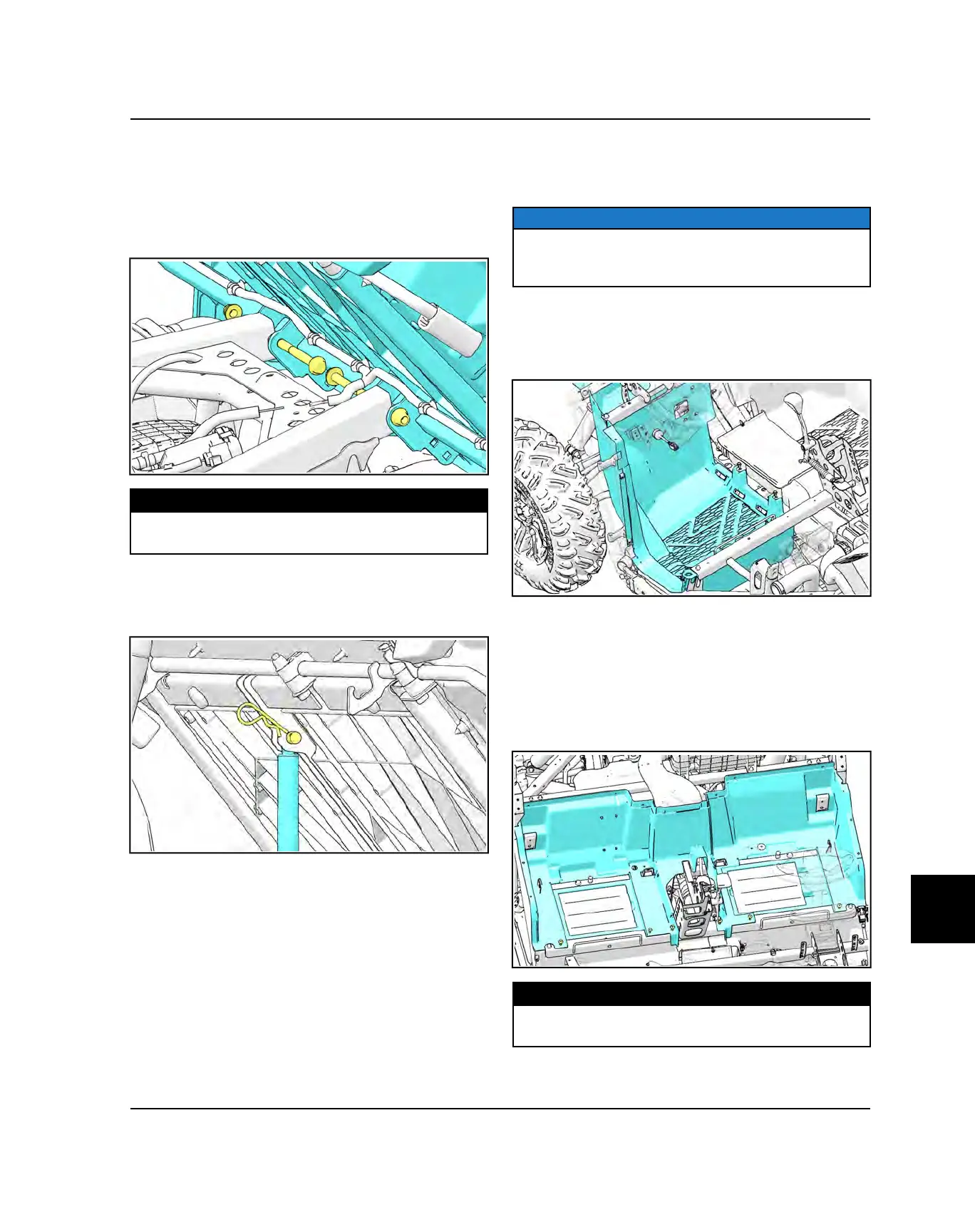

BODY COMPONENT INSTALLATION
CARGO BOX INSTALLATION
1. With the help of an assistant, install the cargo box
onto the vehicle. Install the fasteners holding the
cargo box to the vehicle frame. Torque fasteners to
specification.
TORQUE
Cargo Box Fasteners:
14 lb-ft (19 Nm)
2. Connect the cargo box wire harness to the main wire
harness.
3. Install the pin holding the shock to the cargo box.
4. Lower the cargo box and secure in position.
INTERIOR BODY COMPONENT
INSTALLATION
NOTICE
ROPS shown removed for illustration purposes only. It
is not necessary to remove the ROPS to remove the
interior body components.
MAIN FLOOR INSTALLATION
1. Install the RH and LH main floors in the vehicle and
install the fasteners holding the main floors to the
vehicle.
2. Install the brake pedal, accelerator pedal, and
mounting bracket. Refer to “Brake Pedal
Installation” page 10.48 procedure.
LOWER REAR CLOSEOFF PANEL
INSTALLATION
1. Install the fasteners holding the rear lower close-off
panel to the vehicle. Torque fasteners to specification.
TORQUE
Rear Lower Close-off Panel Fasteners:
3.5 lb-ft (4.7 Nm)
BODY / FRAME
