9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
11.71
EXTERIOR BODY COMPONENT
INSTALLATION

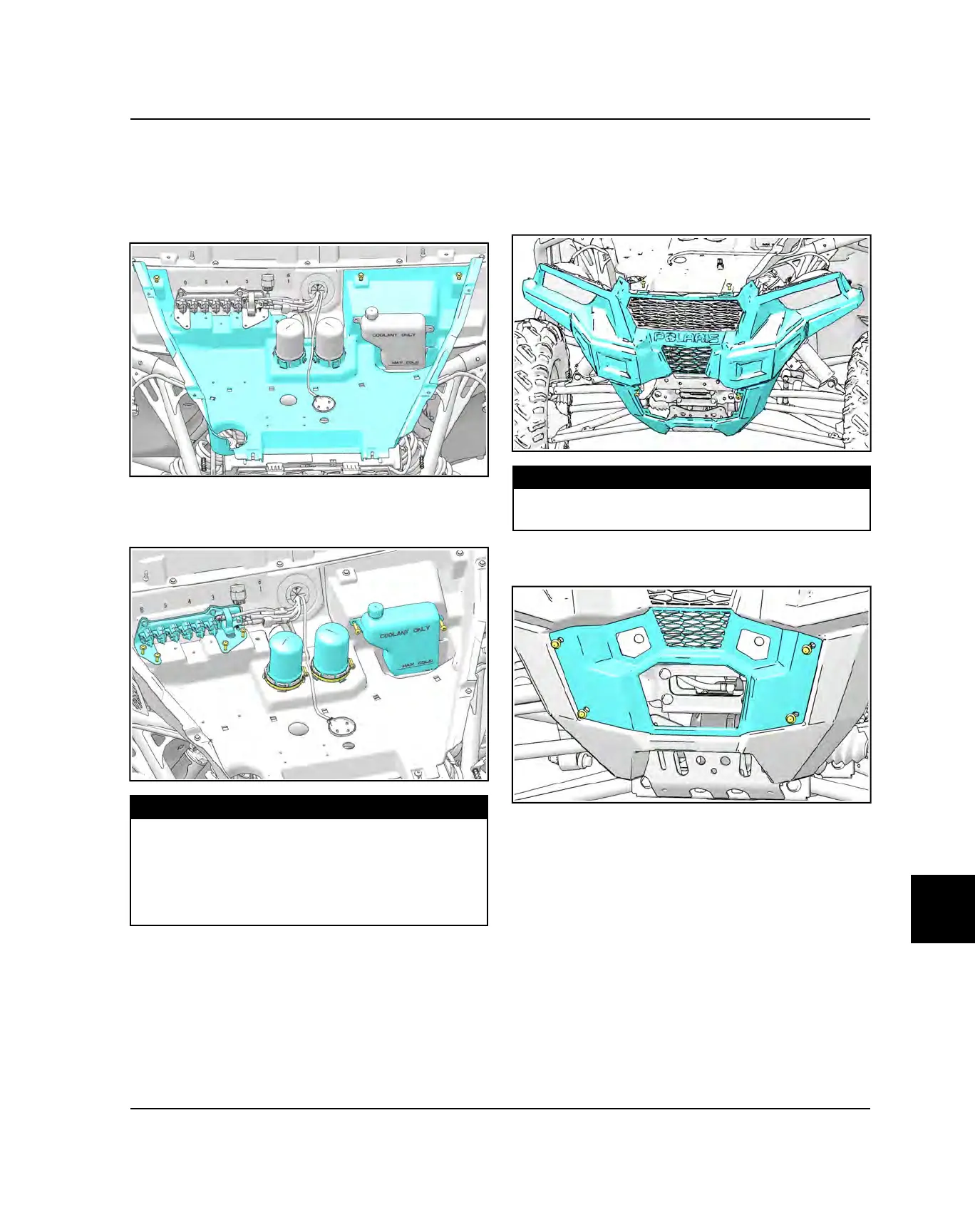

HOOD LINER INSTALLATION
1. If removed, install fasteners holding the hood liner to
the vehicle.
2. Install the fasteners and clamps securing the pulse
bar mounting bracket, intake duct, and coolant surge.
Torque fasteners to specification.
TORQUE
Pulse Bar Fasteners:
3 lb-ft (4 Nm)
Intake Duct Hose Clamp:
3 lb-ft (4 Nm)
Coolant Surge Tank Fasteners:
2 lb-ft (2.7 Nm)
FRONT FASCIA INSTALLATION
1. Install the front fascia on the vehicle and connect the
headlights to the wiring harness. Install the fasteners
holding the upper front fascia to the vehicle and the
hood liner. Torque the fasteners to specification.
TORQUE
Upper Front Fascia Fasteners:
3.5 lb-ft (4.7 Nm)
2. Install the fasteners holding the lower front fascia to
the vehicle.
BODY / FRAME
