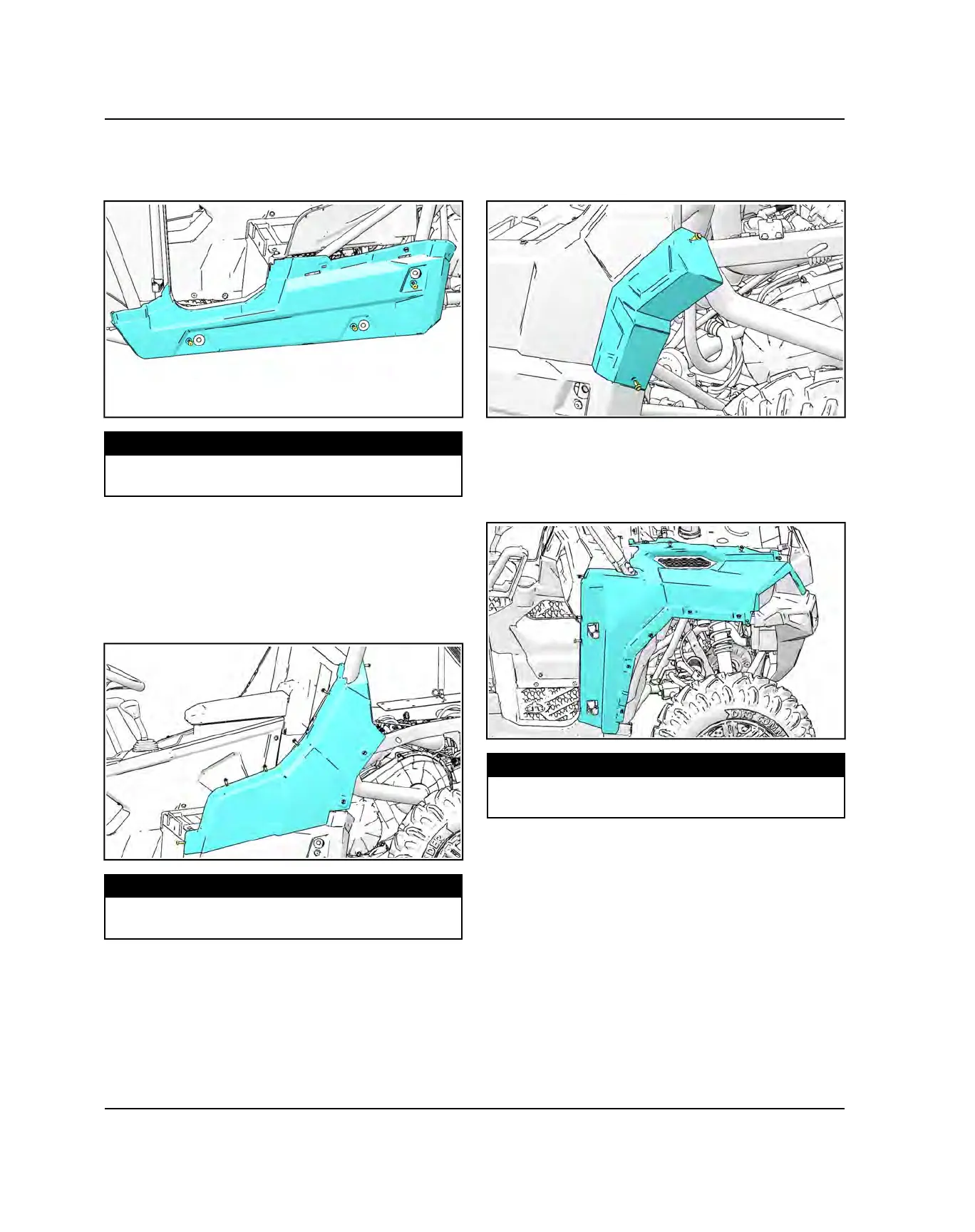

ROCKER PANEL INSTALLATION
1. Install the fasteners holding the rocker panel to the
vehicle.
TORQUE
Rocker Panel Fasteners:
3.5 lb-ft (4.7 Nm)
REAR FENDER INSTALLATION
1. Install the rear fender on the vehicle. Connect the
clutch intake hose to the LH rear fender and tighten
hose clamp until taught, do NOT overtighten hose
clamp. Install the fasteners holding the rear fender to
the vehicle and rocker panel. Torque the fasteners to
specification.
TORQUE
Rear Fender Fasteners:
3.5 lb-ft (4.7 Nm)
REAR FENDER FLAIR INSTALLATION
1. Install the fasteners holding the rear fender flair to the
rear fender.
2. Close the cargo box and secure in position.
FRONT FENDER INSTALLATION
1. Install the fasteners holding the front fender to the
vehicle. Torque the fasteners to specification.
TORQUE
Front Fender Fasteners:
3.5 lb-ft (4.7 Nm)
